Slave DSP Debug Connector (P6)
The TMS320F240 slave DSP features a superset of the IEEE 1149.1
JTAG standard emulation port. This emulation port can be used for
software debugging. The DS1103 contains a JTAG connector to
connect an external emulator such as the Texas Instruments XDS510.
The dSPACE software does not support the slave DSP
debug connector.
Objective
For the location of the connector on the board, see Board Overview
on page 105.
Location

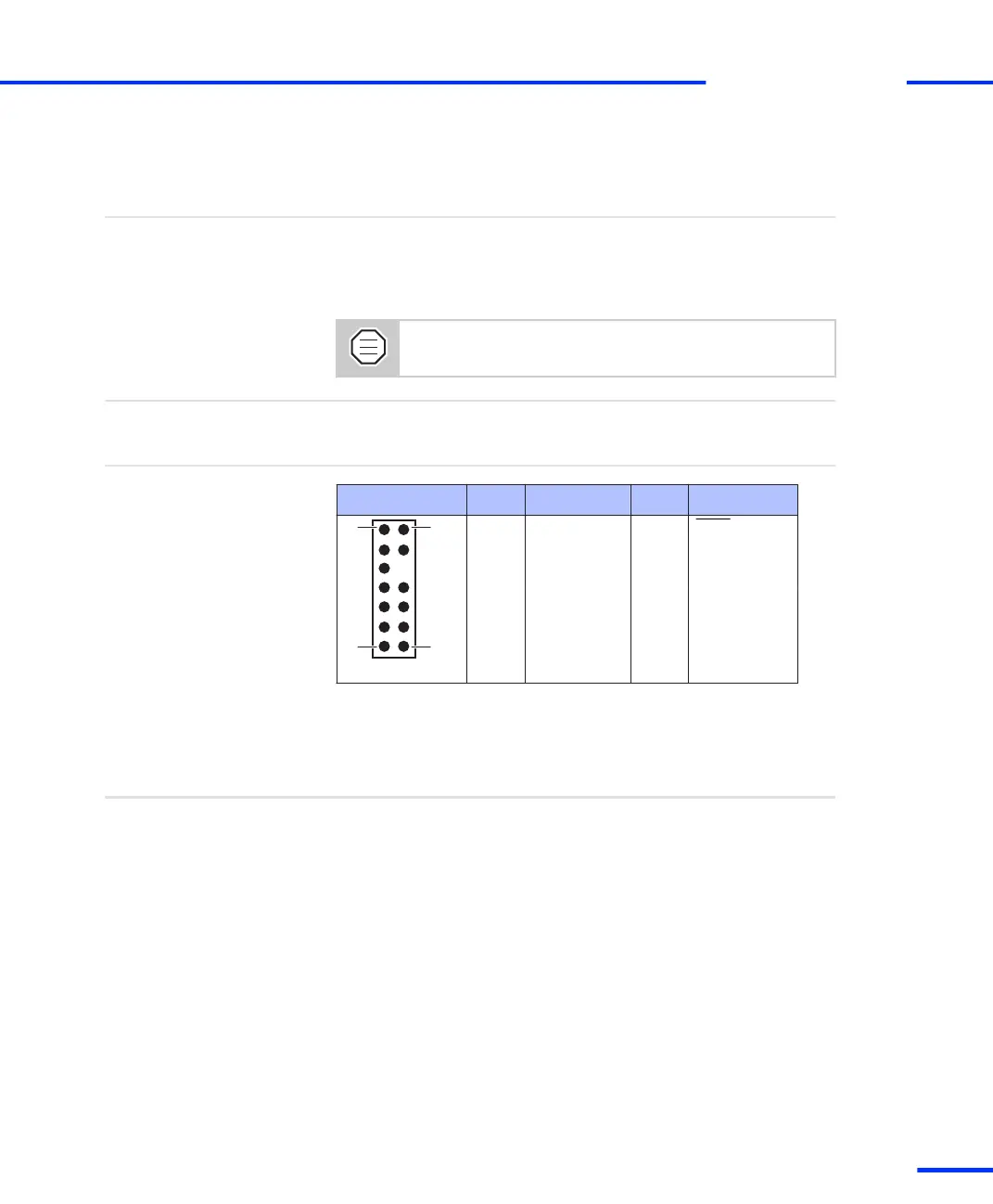

Connector Pin Signal Pin Signal
1 2
13 14
1 TMS 2 TRST
3 TDI 4 GND
5 VCC 6
7 TDO 8 GND
9 TCK 10 GND
11 TCK 12 GND
13 EMU0 14 EMU1
Pinout
Slave DSP Flash Jumper (J1)
The slave DSP contains an on-chip flash memory. The flash jumper
(see Board Overview on page 105) is used to set the protection mode
of the flash memory and the slave DSP watchdog mode.
Objective
s
DS1103 Components
t
DS1103 Hardware Installation and Configuration November 2014
123
