dSPACE DS1103 User Manual

To remove dSPACE CardSafe completely
N O T I C E
The base plate is fixed by velcro tape. Remove the
base plate carefully when peeling the tape off, as the
bottom of a notebook is very thin and sensitive.
Method

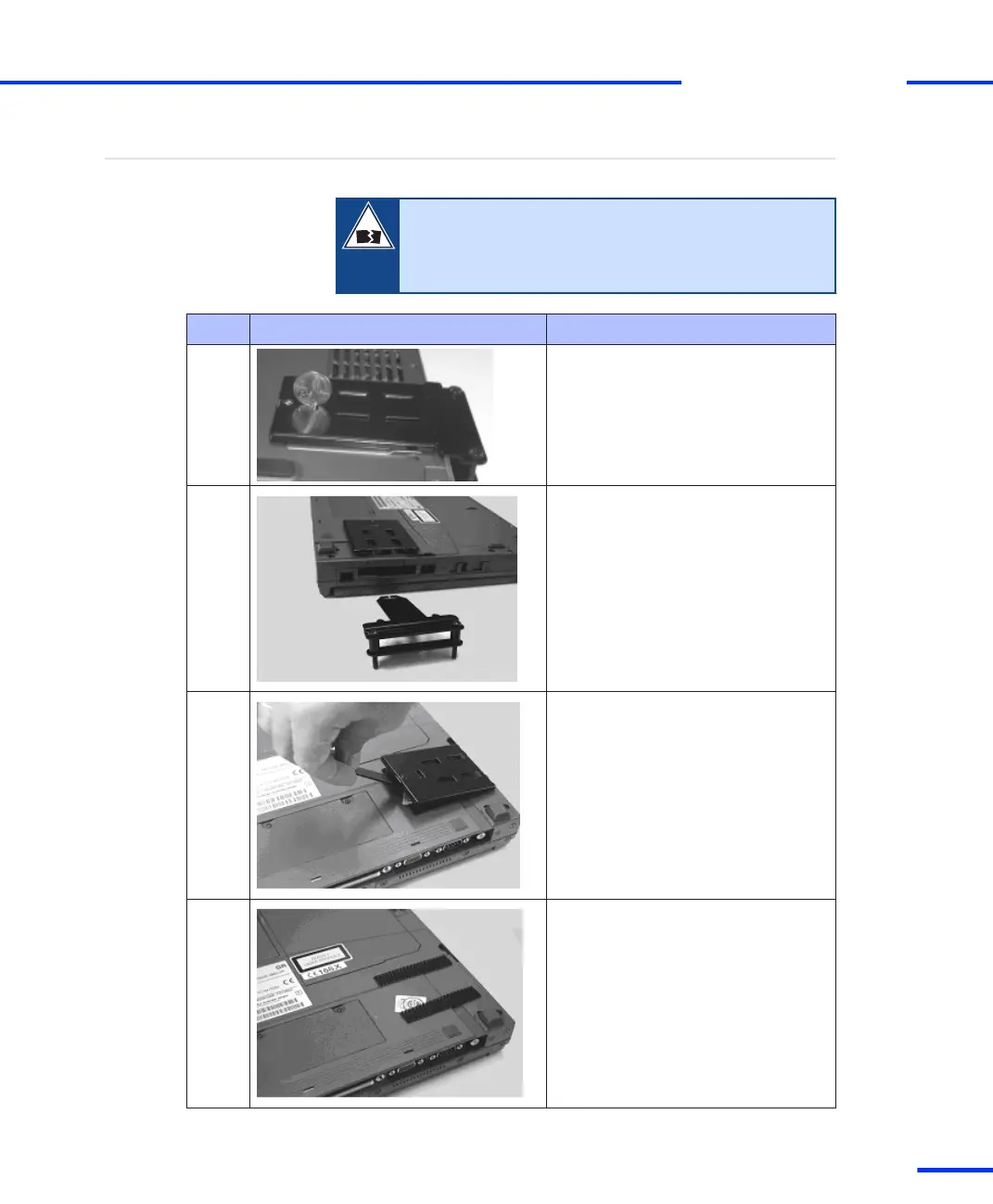

Step Illustration Instruction
1 Push a small coin on the spring of the
base plate.
To avoid injury, do not use your
fingernail to unlock the connector
fixture.
2 Remove the card fixture.
3 Carefully remove the base plate with a
screwdriver.
4 Leave the velcro tapes on the
notebook at the mounting positions.
s
Using dSPACE CardSafe
t
DS1103 Hardware Installation and Configuration November 2014
73
t
