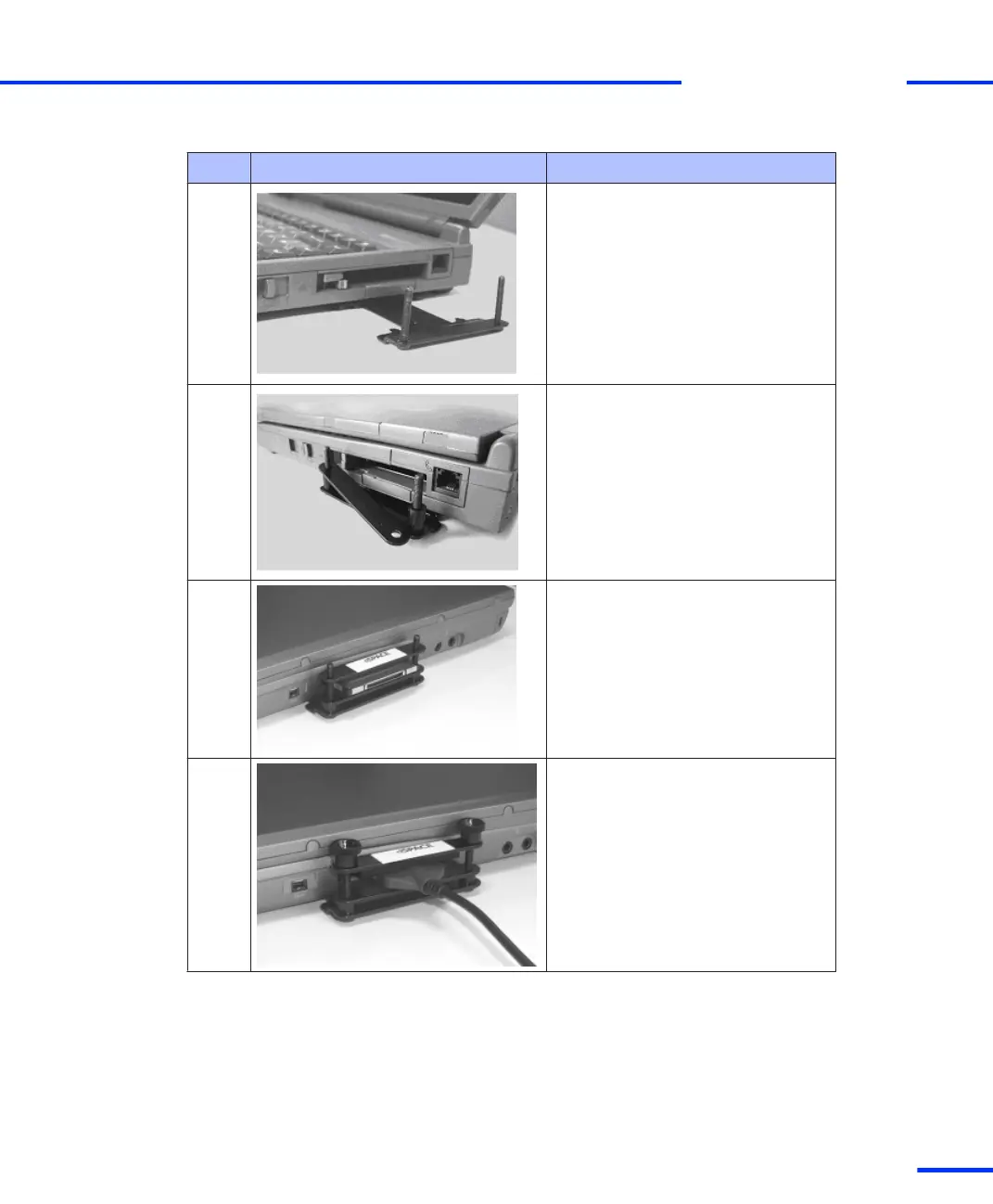

Step
Illustration
Instruction
9
Plug in the card fixture.
For a stable assembly, use the card
fixture that best fits your link board in
combination with your notebook.
10
Adjust the bottom clamp plate with
spacers as needed.
11
Plug in the link board and mount the
other clamp plate.
12
Fix the link board/connector with the
knurled nuts.
s
Using dSPACE CardSafe
t
DS1103 Hardware Installation and Configuration November 2014
71
t
70
72
