N O T I C E
Incorrect mounting of the PX20 in a 19" rack
damages the box.
To avoid damage, mount the box in the 19" rack by means
of the tapped bore holes in the chassis and not only with
the fixing holes at the front plate.

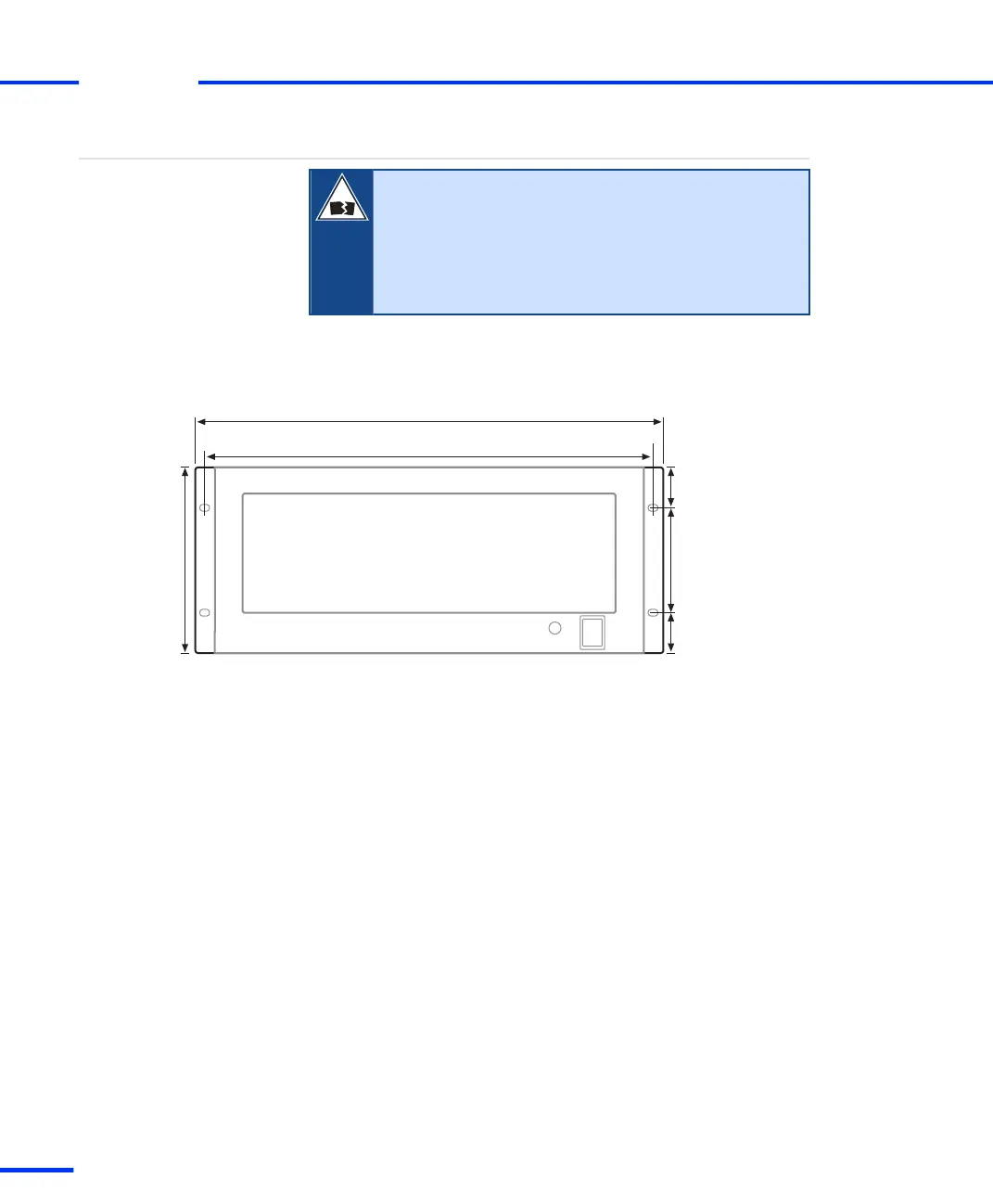

The illustration below show the outer dimensions and the positions of
ventilation slots of the 19" rack version.
19'' rack version
177 mm
(7.0 in.)
482.6 mm (19.0 in.)
101.6 mm (3.99 in.)
465 mm (18.3 in.)
37.7 mm (1.48 in.)
37.7 mm (1.48 in.)
Front view
s
Accessories
t
266
s
DS1103 Hardware Installation and Configuration November 2014
