dSPACE DS1103 User Manual

177 mm
(7.0 in.)
535 mm (21.0 in.)
7 mm
(0.27 in.)
2 mm
(0.08 in.)
37 mm
(1.4 in.)
68 mm
(2.7 in.)
118 mm (4.6 in.)
53.5 mm
(2.10 in.)
65.5 mm
(2.57 in.)
133 mm
(5.2 in.)

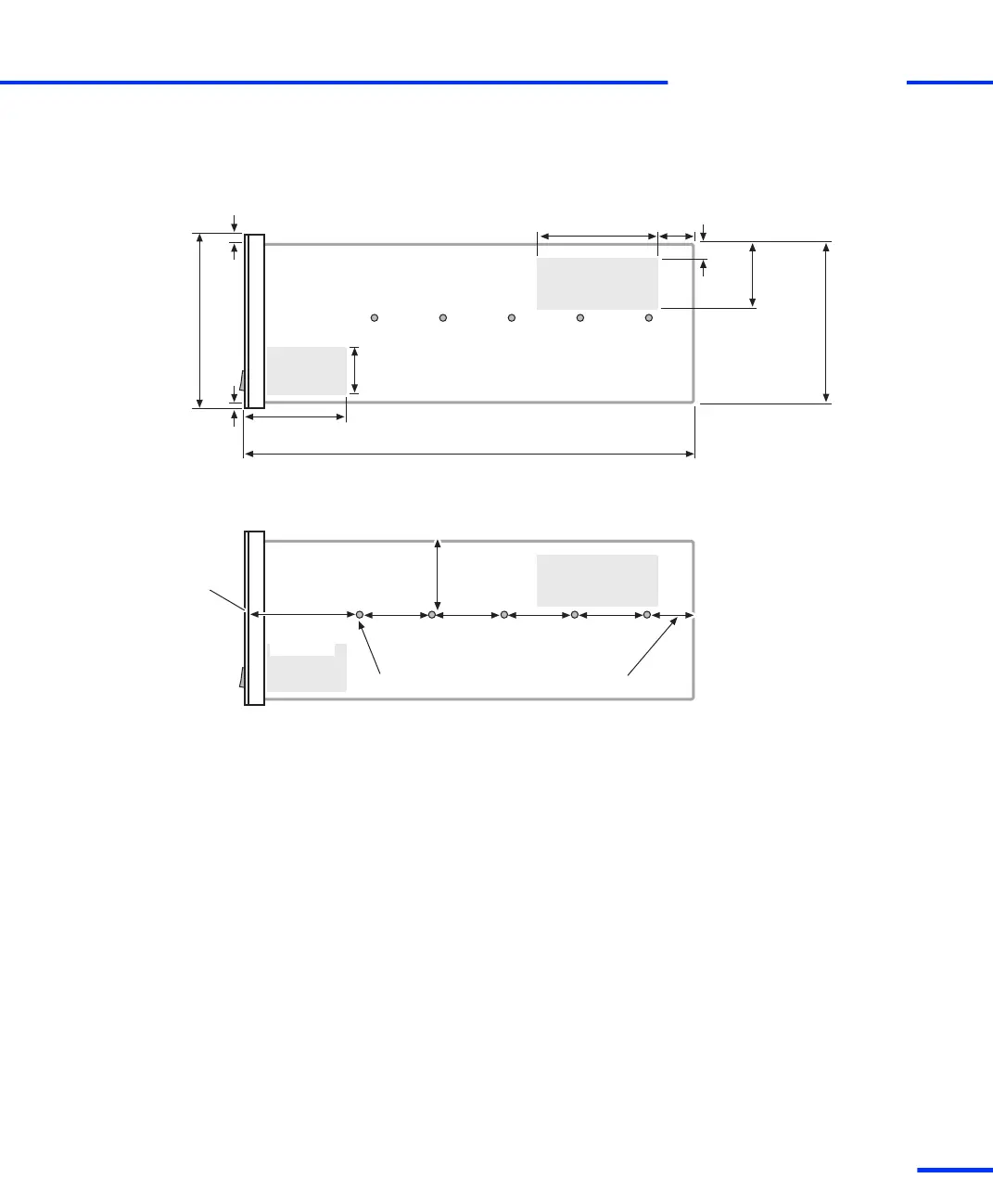

Side view
168 mm
(6.6 in.)
120.5 mm
(4.74 in.)
Ø M5 x 5
81.5 mm
(3.2 in.)
92 mm
(3.6 in.)
92 mm
(3.6 in.)
92 mm
(3.6 in.)
92 mm
(3.6 in.)
44 mm (1.73 in.)
Front
Front
Positions of tapped holes
Ventilation
slot
Ventilation
slot
Front plate
(2.5 mm/
0.10 in.)
s
dSPACE Expansion Boxes
t
DS1103 Hardware Installation and Configuration November 2014
267
