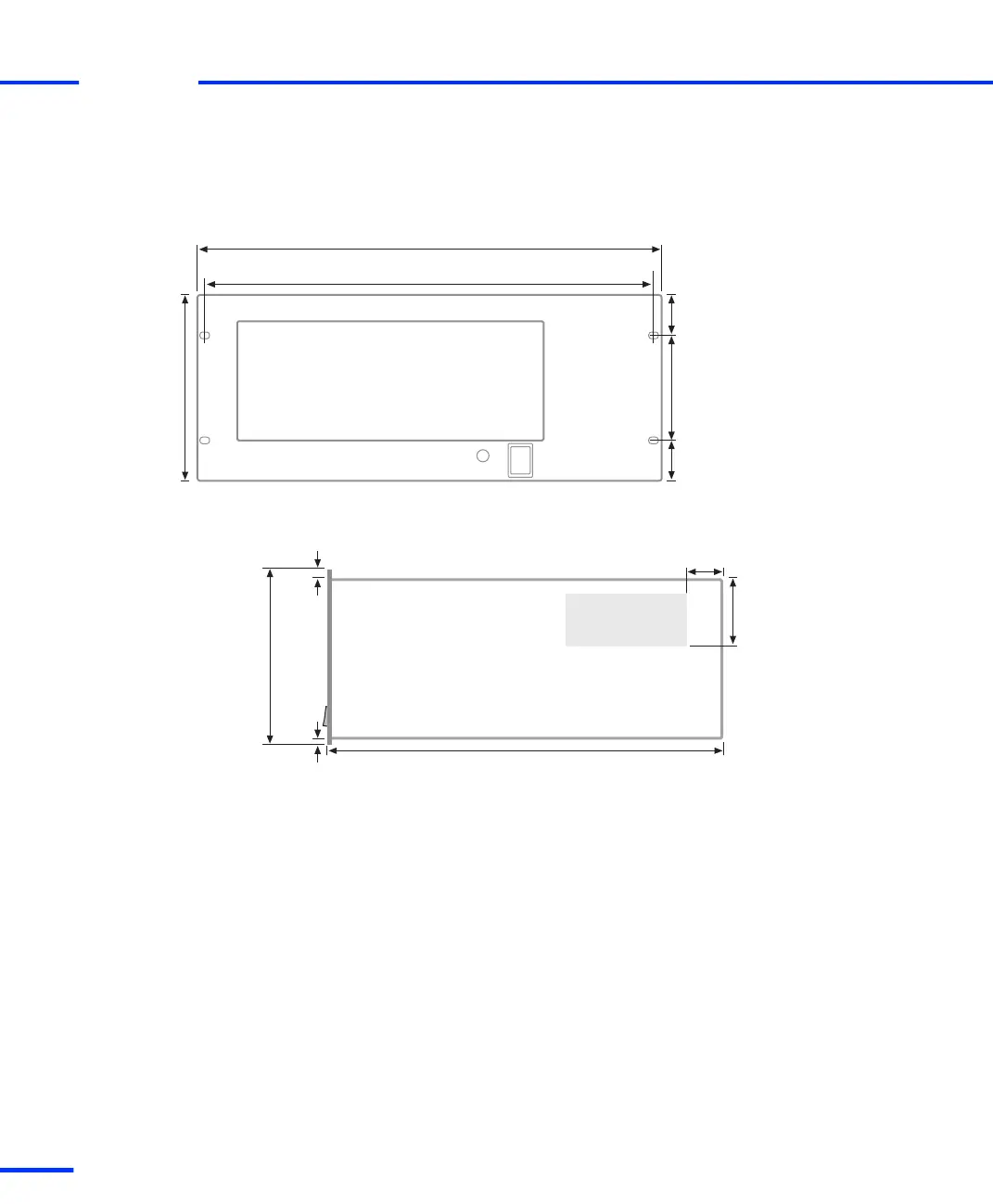

The illustrations below show the outer dimensions and the positions
of ventilation slots of the 19" rack version.
177 mm
(7.0 in.)
482.6 mm (19.0 in.)
101.6 mm (3.99 in.)
465 mm (18.3 in.)
37.7 mm (1.48 in.)
37.7 mm (1.48 in.)
Front view
177 mm
(7.0 in.)
428 mm (16.8 in.)
5.5 mm (0.21 in.)
3.5 mm (0.13 in.)
36 mm
(1.4 in.)
68 mm
(2.7 in.)
Side view
Front
Ventilation slot
s
Accessories
t
