To ensure proper operation within the specified ambient temperature,
observe the following rules:
n The temperature of the input airstream must be in the range of
the specified min. and max. ambient temperatures (see data
sheet).
n Position the box away from heat sources such as radiators, heat
registers, power amplifiers, and other hardware that produces
heat.

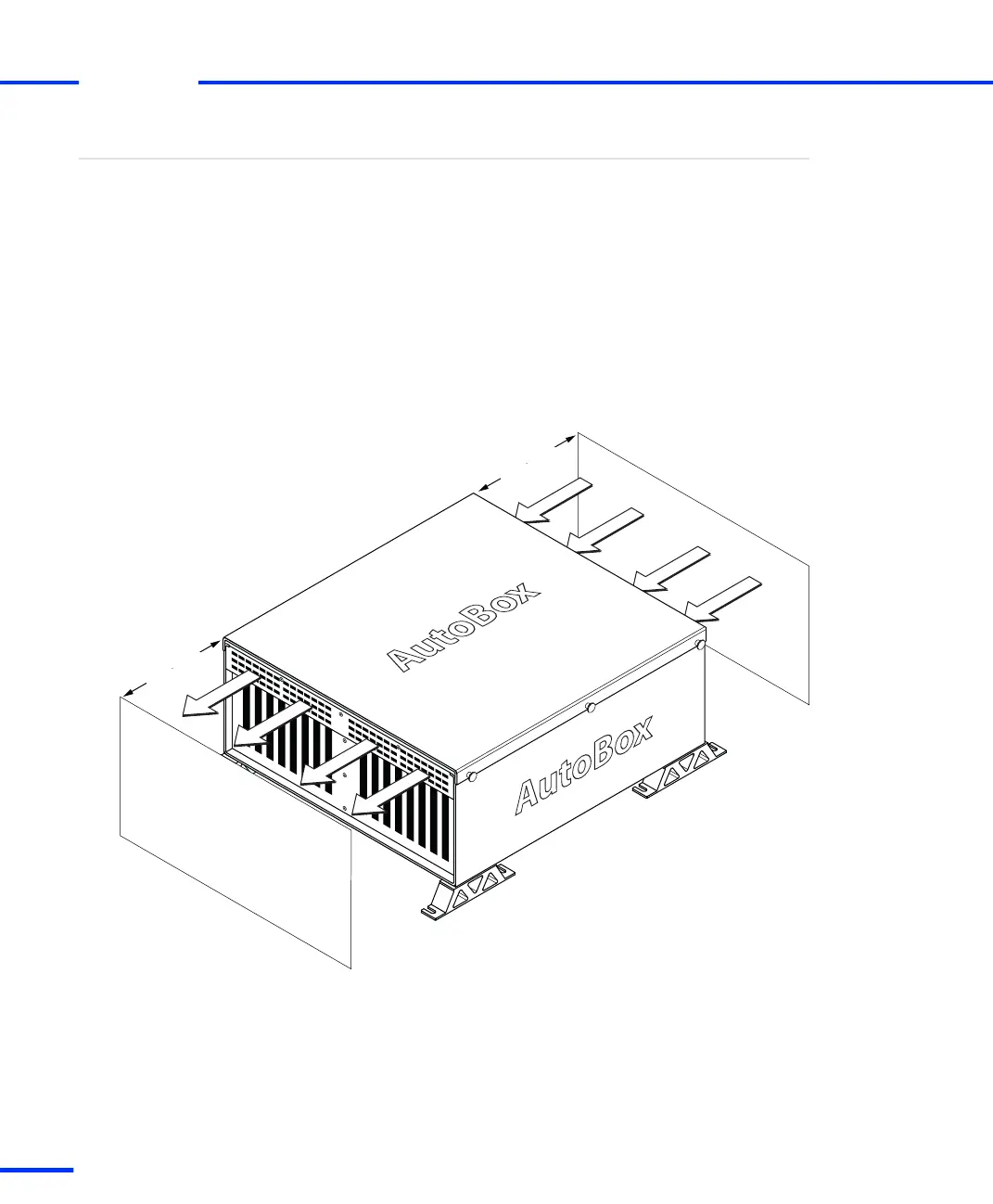

n Do not block the ventilation inlets and outlets. There must be a
specified space (normally 200 mm (7.9 in.)) in front of them. For
details, see the illustrations below.
Rules for proper installation
200 mm
(7.9 in.)
200 mm
(7.9 in.)
s
Accessories
t
290
s
DS1103 Hardware Installation and Configuration November 2014
