Red LED A lit red LED indicates that the active connection between
the host PC and the expansion box uses a fiber-optic cable.
Green LED A lit green LED indicates that data is being sent or
received.
The DS815 is not equipped with optical status indicators. Using the
DS815-RJ45 adapter cable, you can identify the current status of the
connection by the two LEDs integrated in the shell of the RJ45
connector.
DS815
Two LEDs indicate the current status of the connection.
Yellow LED A lit yellow LED indicates that the connection between
the host PC and the expansion box is ready for communication.
Green LED A lit green LED indicates that data is being sent or
received.

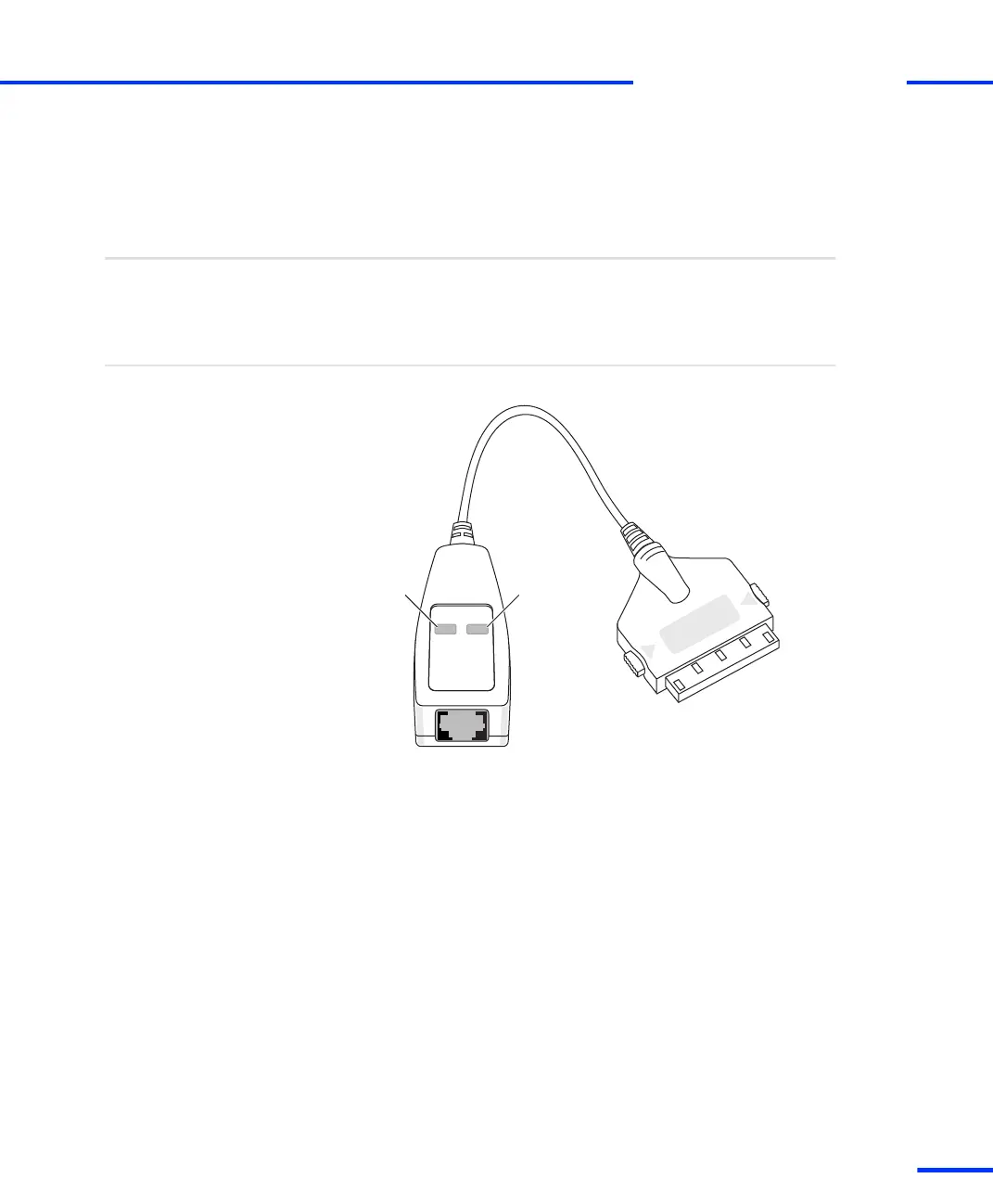

DS815-RJ45 adapter cable
s
Connecting via Bus Interface
t
DS1103 Hardware Installation and Configuration November 2014
63
