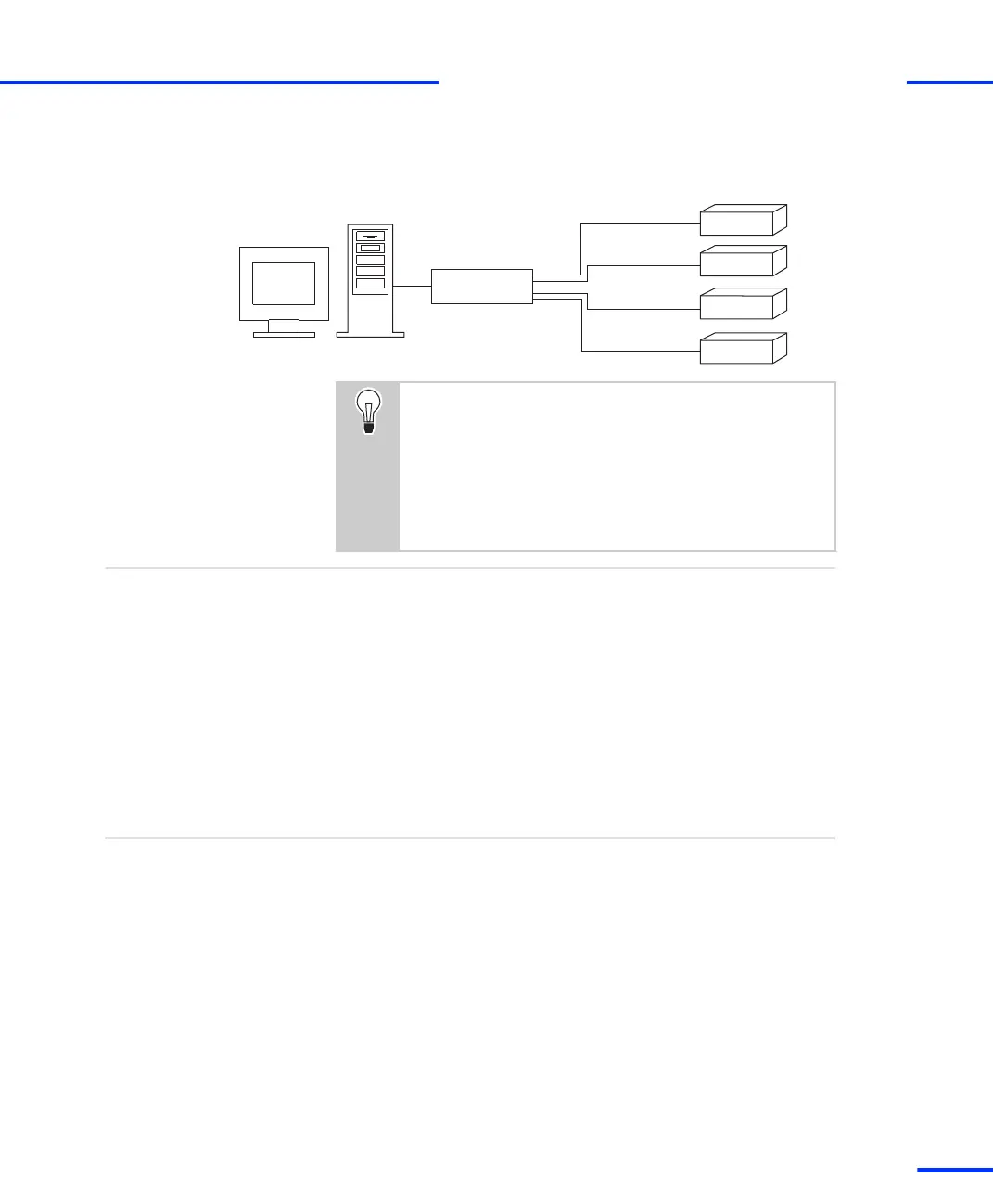

As an example, the following illustration shows how to connect the
DS830 to the host PC and four dSPACE boxes.
Host PC
DS830
Box 1
Box 2
Box 3
Box 4
n You can connect any combination of expansion boxes
and MicroAutoBoxes to the DS830.
n You can connect several DS830 panels to one host PC.
Each DS830 has to be connected to the PC via a
separate link board (PC).
n To install your dSPACE system in a vehicle, you can use
the car battery as the power supply for the DS830.
To connect the DS830 to the host PC as well as to the dSPACE boxes,
you can use any combination of crossed‑over patch cables and
fiber‑optic cables. For example, you can connect the DS830 to the
host PC and an expansion box via a fiber‑optic cable, and to a
MicroAutoBox via a patch cable.
The DS830 can be used in a laboratory or in vehicle. The cables
required to supply power to the DS830 via a mains socket or a car
battery are part of the DS830 hardware package. The cable for the
mains socket includes a power supply unit (15.0 V, 4.0 A).
For instructions on the installation, see How to Connect the DS830
on page 76.
Connecting and installing
the DS830
After the boxes are connected, you can switch on the system.
To avoid unpredictable errors, you should always apply the following
sequence:
1. Turn on the dSPACE boxes (expansion boxes and/or
MicroAutoBox).
2. Turn on the DS830.
3. Turn on the host PC.
Switching on a system with
DS830
s
Connecting dSPACE Boxes to the Host PC via DS830
t
DS1103 Hardware Installation and Configuration November 2014
75
t
