Transport carriage

Service Instructions 755 A/756 A - 00.0 - 02/2019 115

18 Transport carriage

18.1 Setting the reference position of the transport carriage

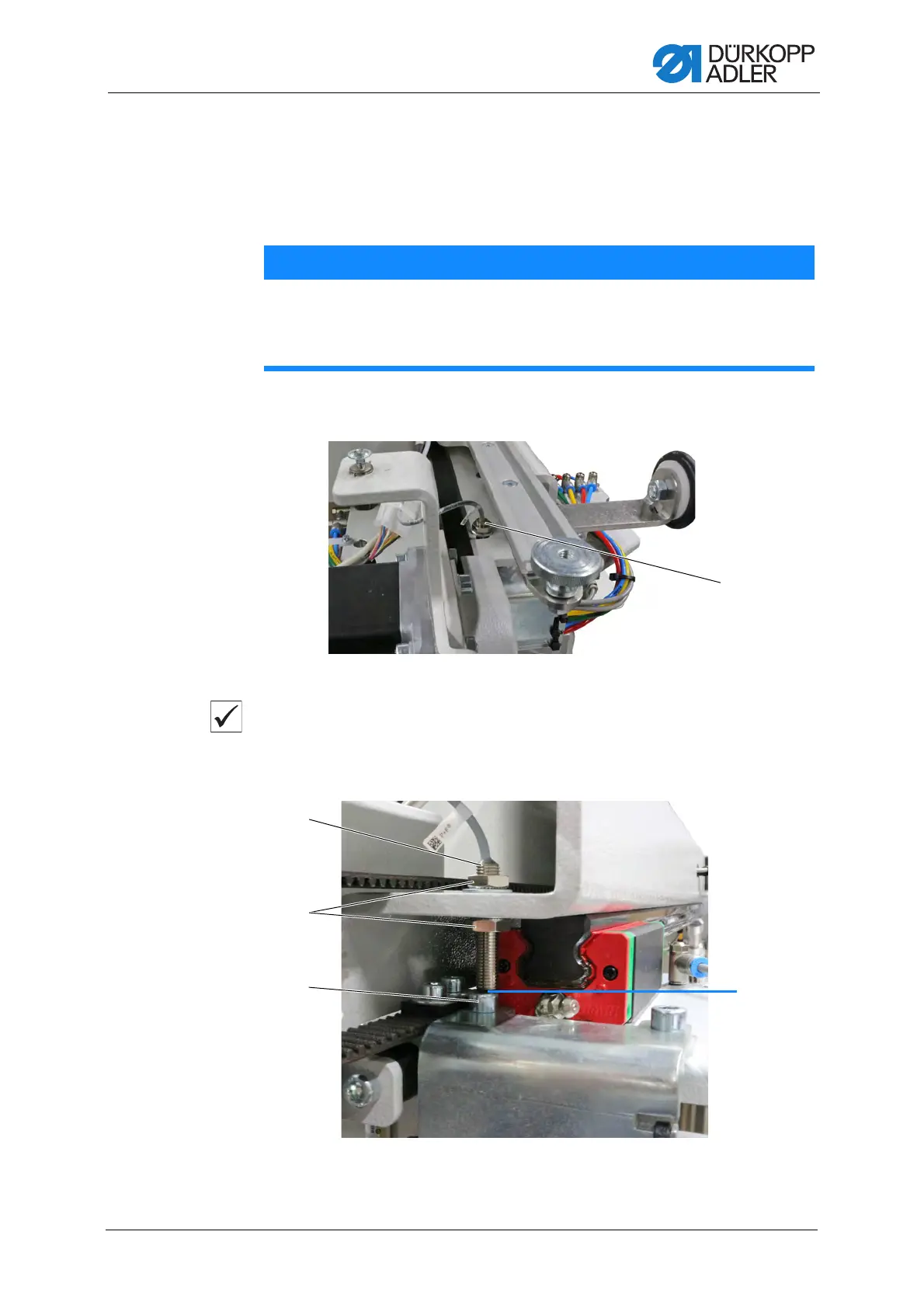

Fig. 117: Setting the reference position of the transport carriage (1)

Proper setting

The reference switch (1) determines the rear and, by means of a

definitively specified path, the front end position of the transport carriage.

Fig. 118: Setting the reference position of the transport carriage (2)

NOTICE

Property damage may occur!

Collision and functional failure of the machine.

Check the distance between reference switch and switching screw.

(1) - Reference switch

①

(1) - Reference switch

(2) - Nuts

(3) - Switching screw

①

②

③

0.5 mm
