Stacker

Service Instructions 755 A/756 A - 00.0 - 02/2019 257

28.3.1 Replacing pneumatic cylinders, pneumatic valve and coupling

rods

Removing the covers

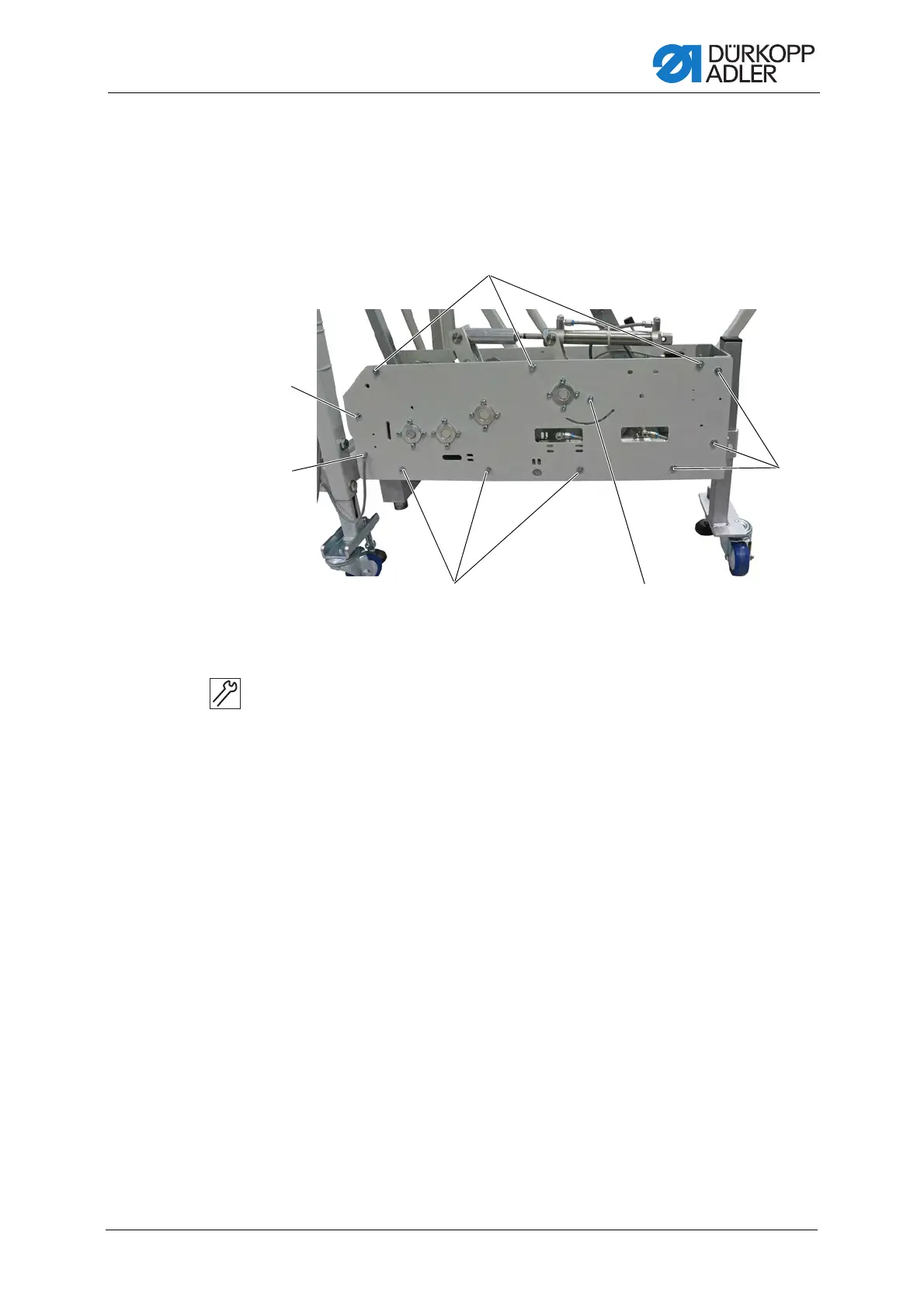

Fig. 252: Removing the covers

To remove the covers:

1. Disconnect the compressed air supply.

2. Loosen the screws (1).

3. Pull the hood up and off.

4. Loosen the screw (3).

5. Remove the grounding wire.

6. Loosen screws (2) and (4).

7. Pull the side panel off the axles.

(1) - Screws

(2) - Screws

(3) - Screw

(4) - Screw

①

②

③

②④

②
