27.2 Tape feeder
27.2.1 Assembling the tape feeder and inserting the reinforcement
strip
Assembling the tape feeder

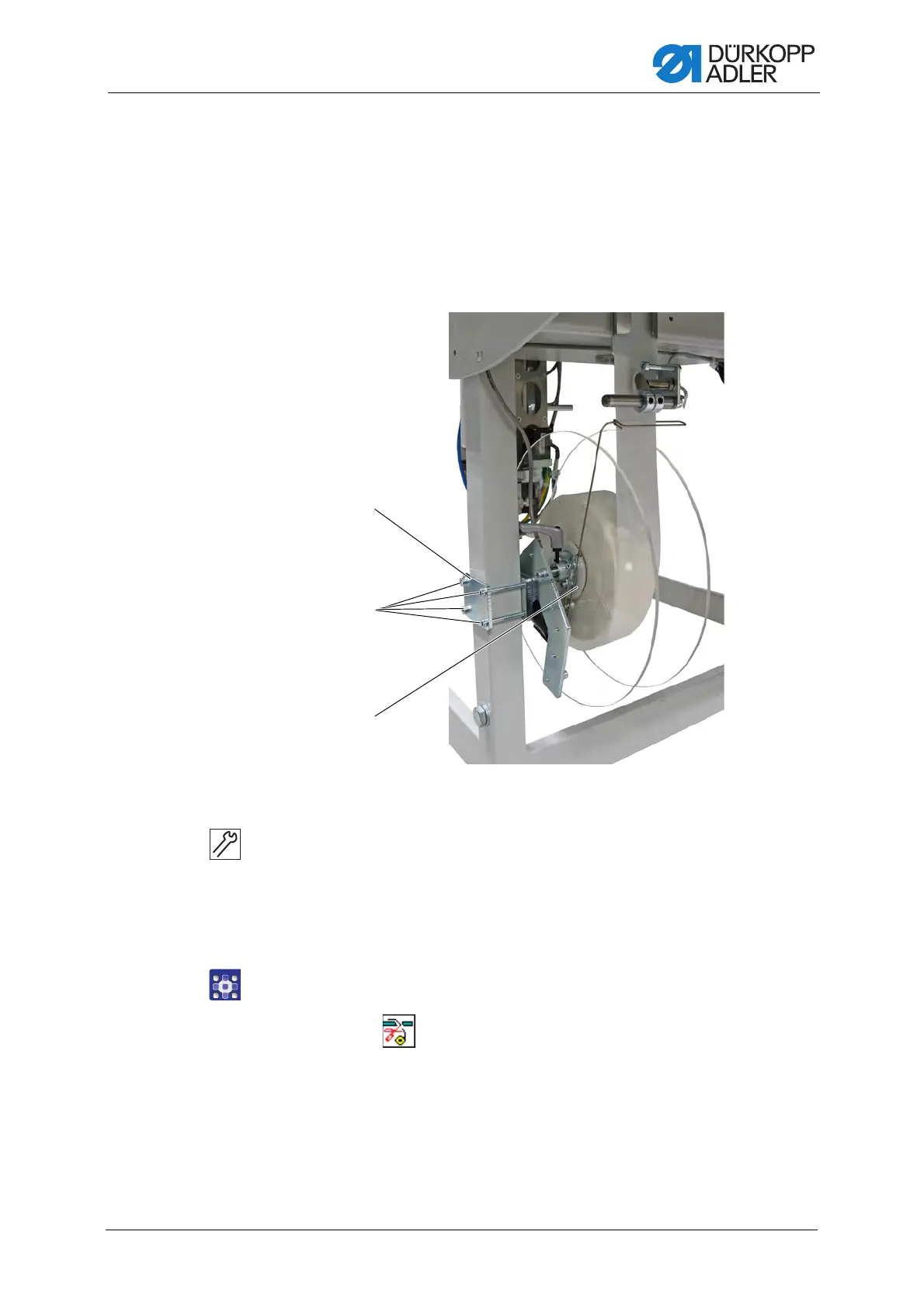

Fig. 219: Assembling the tape feeder and inserting the reinforcement strip (1)
To assemble the tape feeder:
1. Assemble the tape roll holder (3) at the stand using the plate (1) and
the screws (2).
Make sure there is enough clearance between the tape roll holder (3)
and the pedal fastening.
Another option is to use the plate included with the tape feeder.
2. Open the menu Service > Machine config. and switch on
the tape feeder ( p. 348).
 The button appears on the start screen.
(1) - Plate
(2) - Screws
(3) - Tape roll holder
