Multi-functional corner knife station
Service Instructions 755 A/756 A - 00.0 - 02/2019 171
22.2 Setting the speed and the end position damping of
the corner knives
22.2.1 Setting the speed

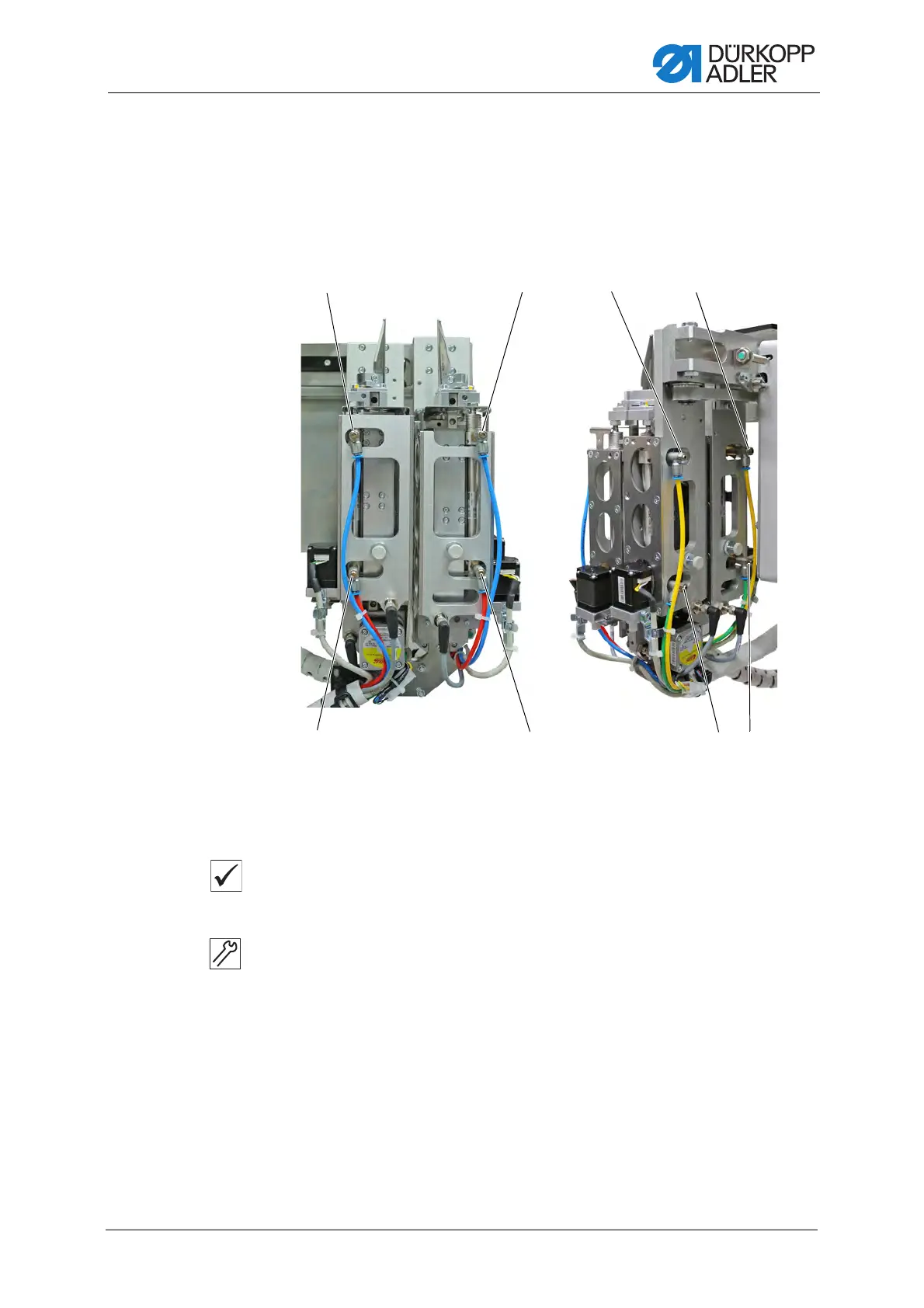

Fig. 168: Setting the speed
Proper setting
The movement of the corner knives should be swift, but not abrupt.
All corner knives must move in sync.
To set the speed of the upward movement (blue and yellow pneumatic
hoses):
1. Turn throttle valves (1), (2), (3), and (4).
• lower speed: turn clockwise
• higher speed: turn counterclockwise
(1) - Throttle valve
(2) - Throttle valve
(3) - Throttle valve
(4) - Throttle valve
(5) - Throttle valve
(6) - Throttle valve
(7) - Throttle valve
(8) - Throttle valve
①②③④
⑤⑥⑦⑧
