Endless zipper feed (optional)

Service Instructions 755 A/756 A - 00.0 - 02/2019 215

26.5 Driver zipper

The driver zipper fixes the zipper in place at the seam beginning to keep

it from slipping while being sewn on.

26.5.1 Setting the distance between the driver zipper and the needles

Proper setting

The distance between the driver zipper and the needles is 3 mm.

The driver zipper is situated 2 mm below the needle tips.

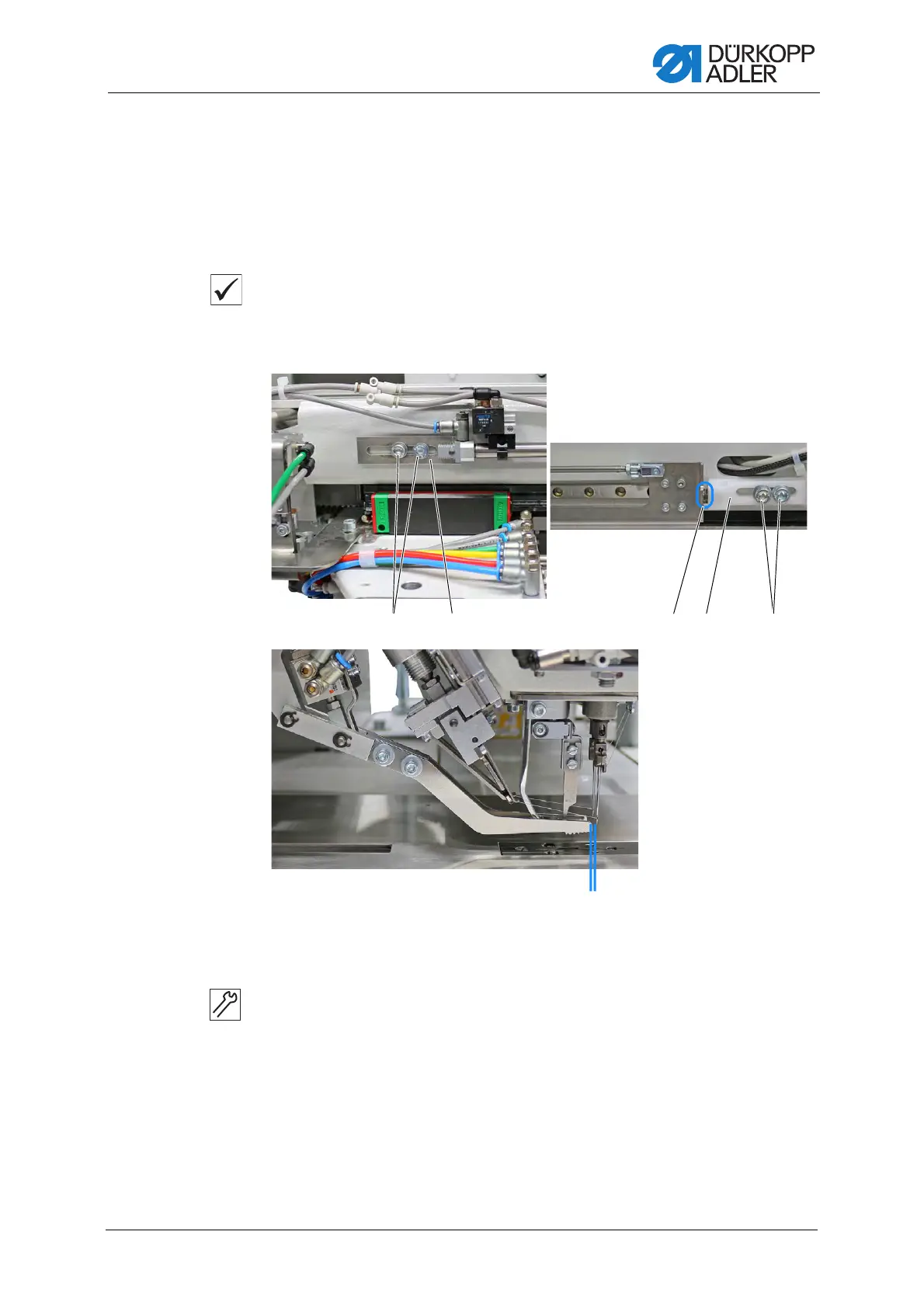

Fig. 213: Setting the distance between the driver zipper and the needles (1)

To set the distance between the driver zipper and the needles:

1. Loosen the screws (5).

2. Put away the holder (4) with spring (3).

3. Loosen the screws (1).

(1) - Screws

(2) - Holder

(3) - Spring

(4) - Holder

(5) - Screws

①③⑤② ④

3mm
