Transport clamps
Service Instructions 755 A/756 A - 00.0 - 02/2019 127

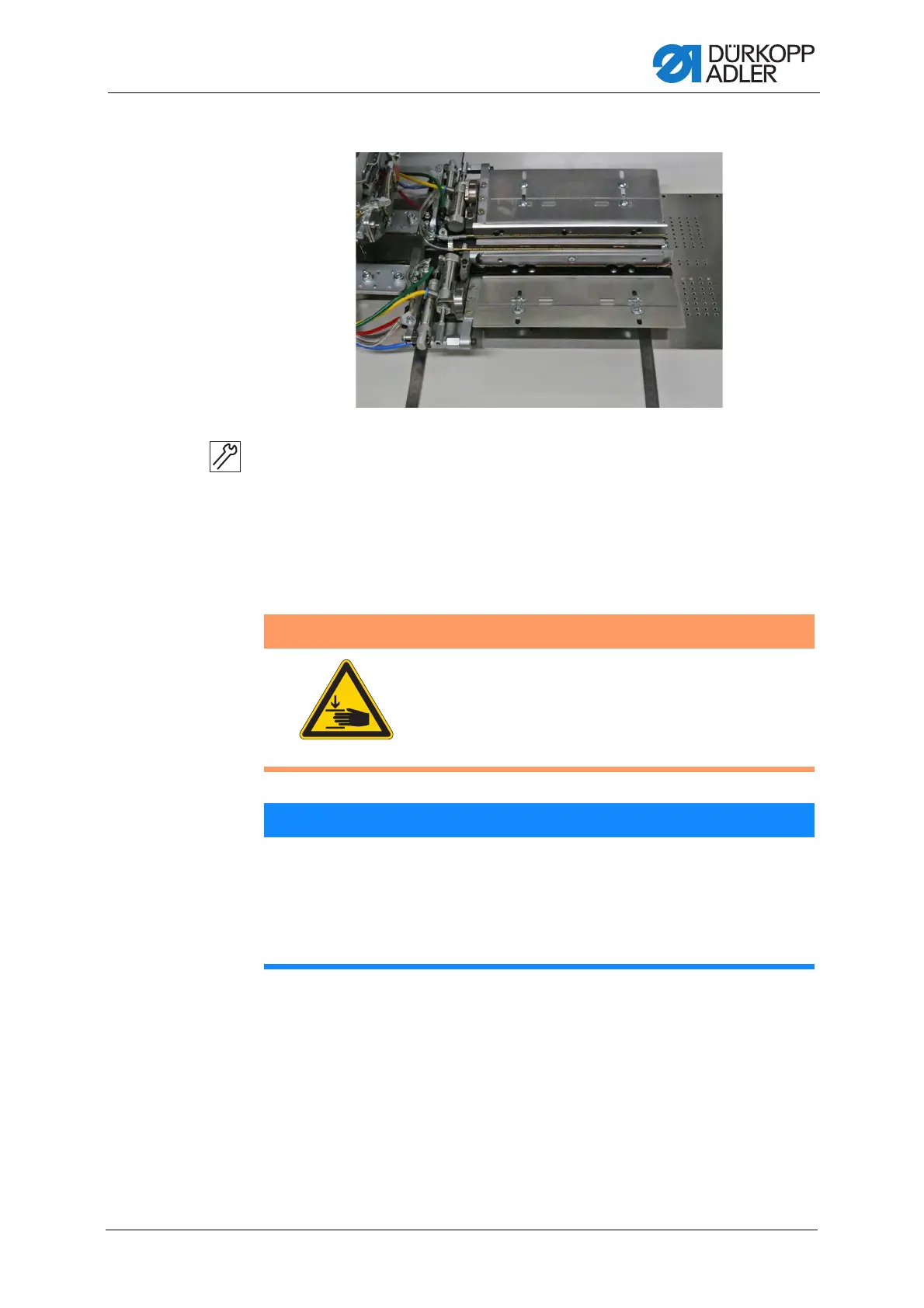

Fig. 128: Aligning the transport clamps with the sliding plate edge (3)
5. Use 2 rulers to verify parallel position and make adjustments as
necessary.
6. Tighten the screws (3).
19.4 Setting the distance of the transport clamps to the folder
sole
WARNING
Risk of injury from moving parts!
Crushing possible.
Check and set the transport clamps only with
utmost caution and with the machine switched on.
NOTICE
Property damage may occur!
The transport clamp may damage the folder sole.
The folder sole may damage the transport clamp.
The transport clamp position must be adjusted to the appropriate
folder.
