Hook

Service Instructions 755 A/756 A - 00.0 - 02/2019 71

7.5 Setting the bobbin case lifter

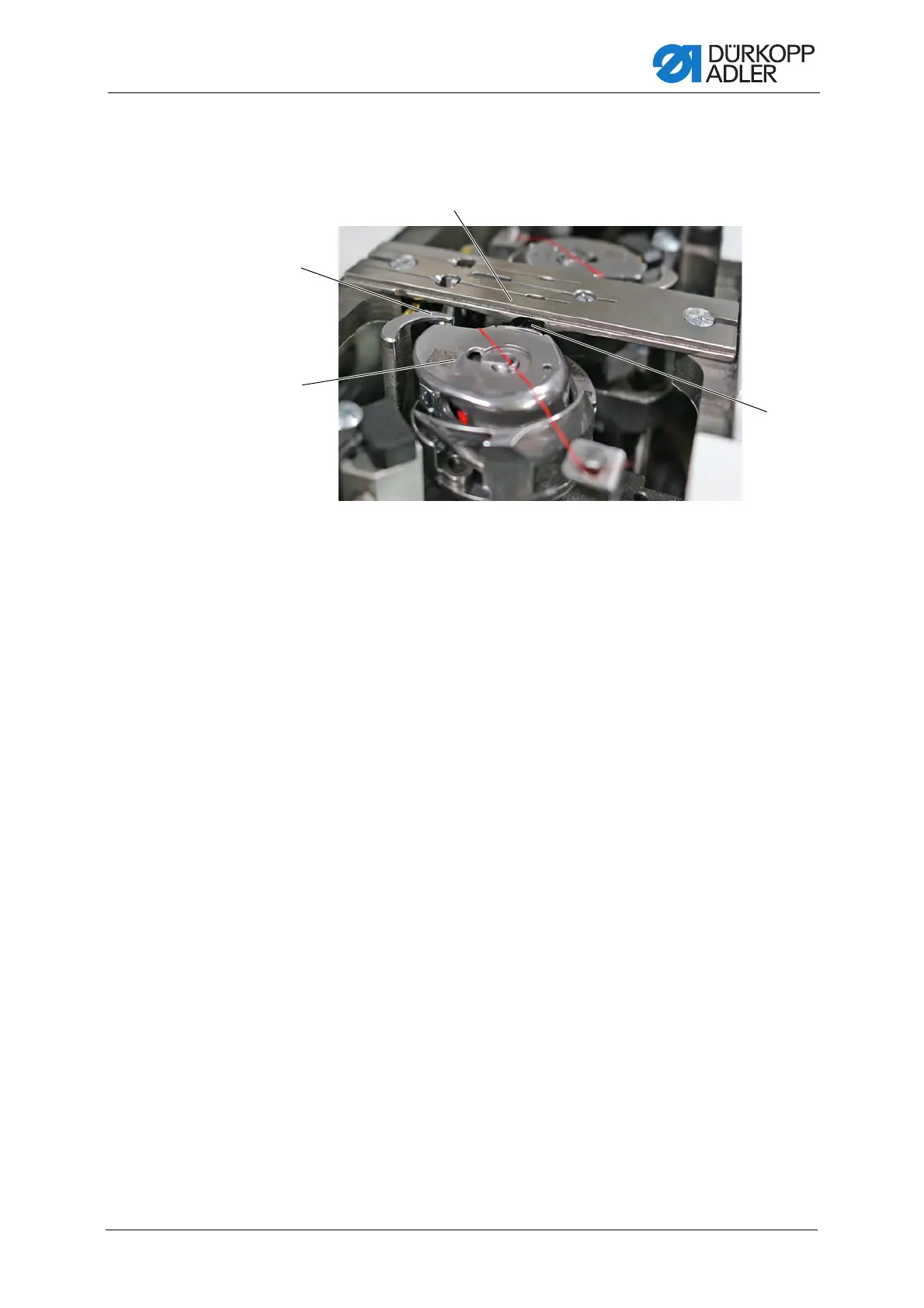

Fig. 71: Setting the bobbin case lifter

The bobbin case lifter (2) controls the bobbin case (3), making sure that

the needle thread can pass freely between holding lug (4) and throat

plate (1) as well as between bobbin case (3) and bobbin case lifter (2).

(1) - Throat plate

(2) - Bobbin case lifter

(3) - Bobbin case

(4) - Holding lug

②

③

①

④
