Stacker
Service Instructions 755 A/756 A - 00.0 - 02/2019 251
To set the stacking speed:
1. Set the speed at throttle valves (1), (2) and (3).
• higher speed: Open the throttle valve by turning it
counterclockwise
• lower speed: Close the throttle valve by turning it clockwise
Information
If you want to return the throttle valves to their initial position, close
the throttle valves all the way first. Next, open the throttle valves:
• Throttle valve - throw-over speed, beginning movement (1): 5 turns
• Throttle valve - throw-over speed, ending movement (2): 4 turns
• Throttle valve - return speed (3):
¾ turn
28.2.5 Setting the stack removal

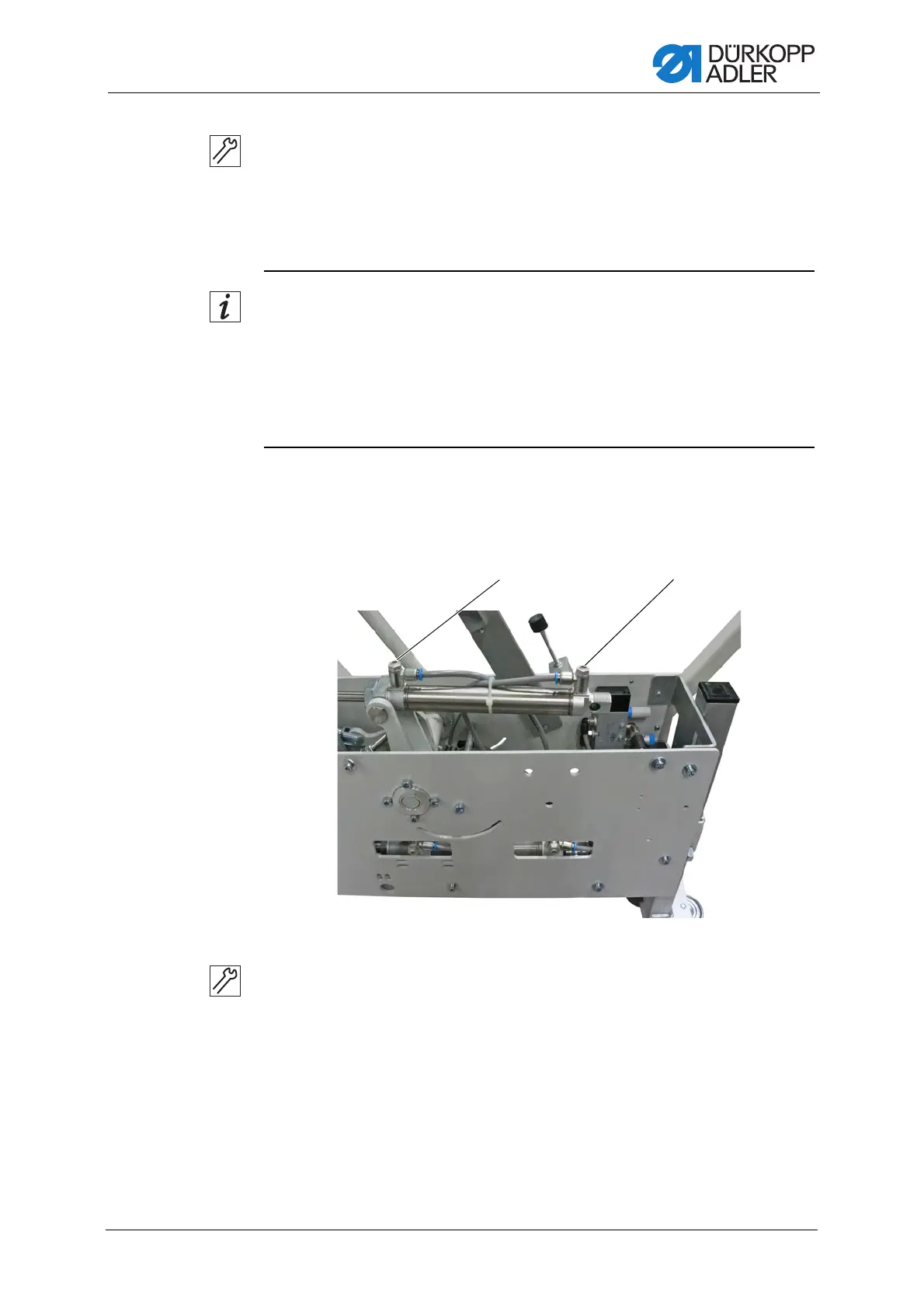

Fig. 246: Setting the stack removal
To set the stack removal:
1. Set the speed at throttle valves (1) and (2):
• higher speed: Open the throttle valve by turning it counterclockwise
• lower speed: Close the throttle valve by turning it clockwise
(1) - Throttle valve - opening speed (2) - Throttle valve - closing speed
