Marking lamps

Service Instructions 755 A/756 A - 00.0 - 02/2019 183

23 Marking lamps

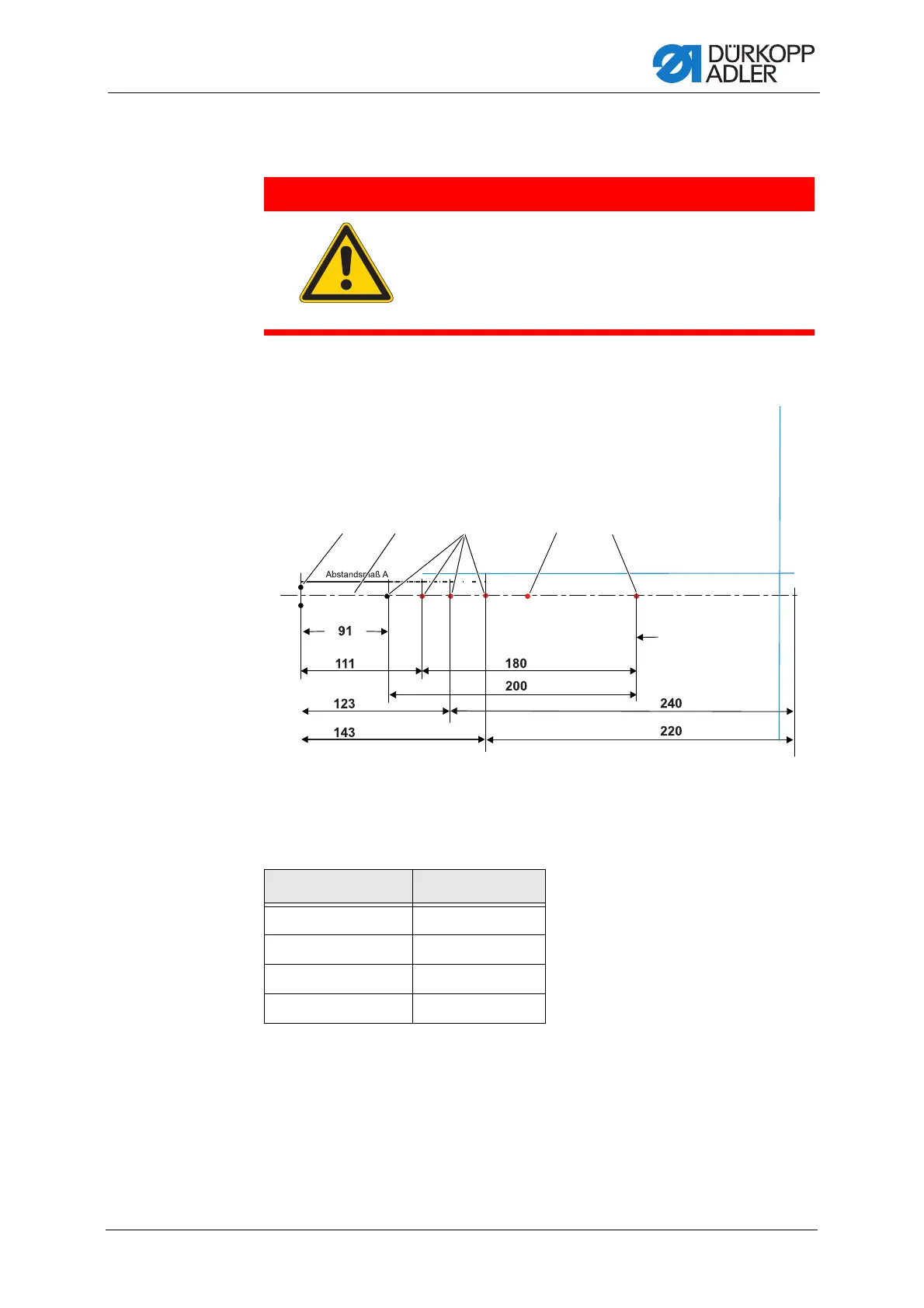

Fig. 180: Marking lamps

DANGER

Risk of injury from laser light!

Risk of sustaining eye damage and going blind.

NEVER look into the laser light source.

(1) - Needles

(2) - Cutting line (middle knife)

(3) - Marking of the front positioning

point (varies with the setting of

the sewing length)

(4) - Middle of pocket opening (varies with

the setting of the sewing length)

(5) - Marking of the rear positioning point

Sewing length (mm) Spacing A (mm)

180 111

200 91

240 123

220 143

①② ④⑤③

Marking lamp horizontal

(optional)

Marking lamp vertical

(optional)
