Multi-functional corner knife station
Service Instructions 755 A/756 A - 00.0 - 02/2019 165
22.1.2 Setting the piercers
Proper setting
The tips of the piercers are positioned as closely together as possible
without hindering each other's movement.

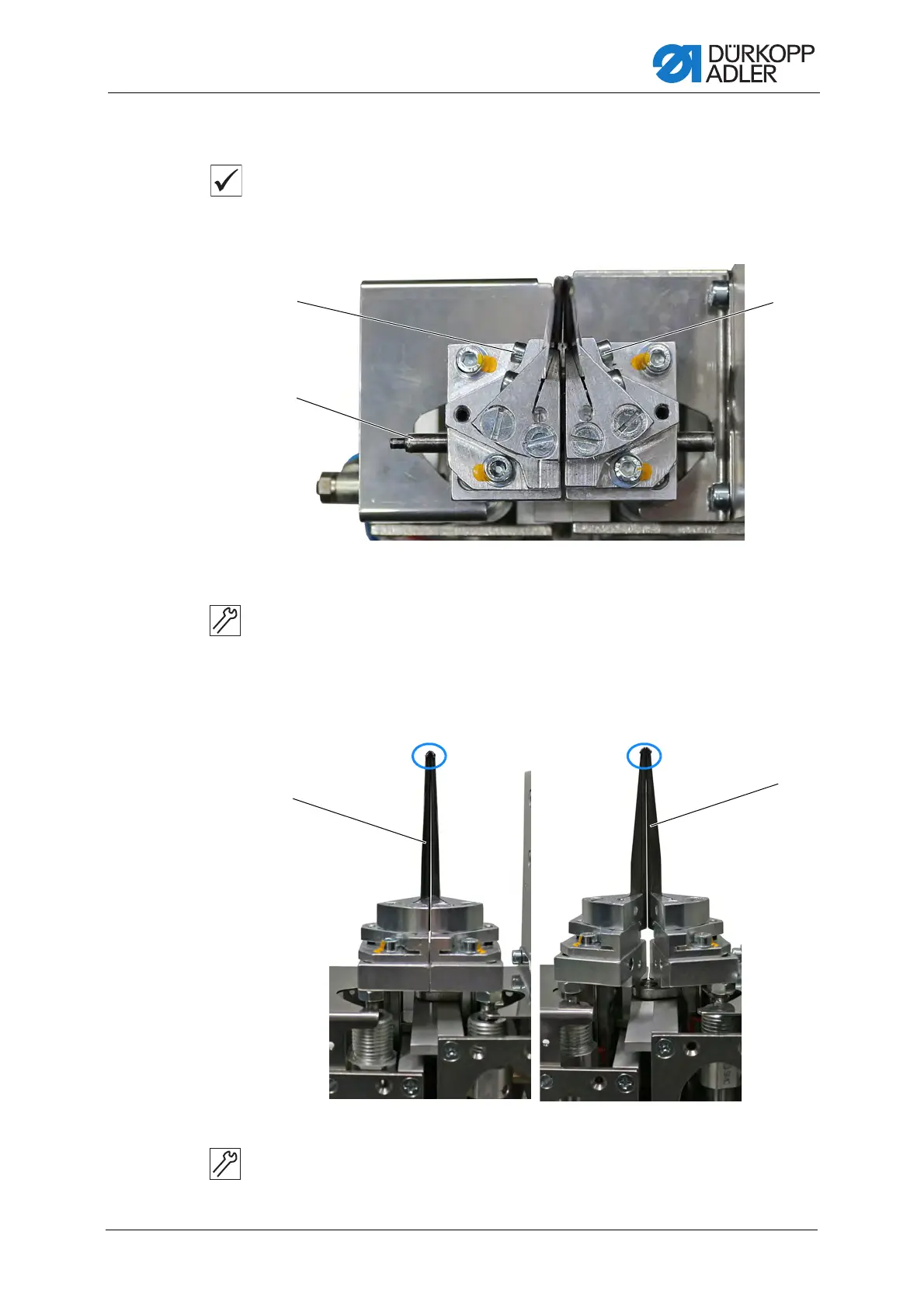

Fig. 162: Setting the piercers (1)
To set the piercer:
1. Remove the corner knives.
2. Loosen screws (1) and (3).
3. Remove the locking pin (2).
Fig. 163: Setting the piercers (2)
4. Turn piercers (4) and (5) such that their tips are flush.
(1) - Screw
(2) - Locking pin
(3) - Screw
(4) - Piercer (5) - Piercer
