Setting the folding station plate

Service Instructions 755 A/756 A - 00.0 - 02/2019 101

16 Setting the folding station plate

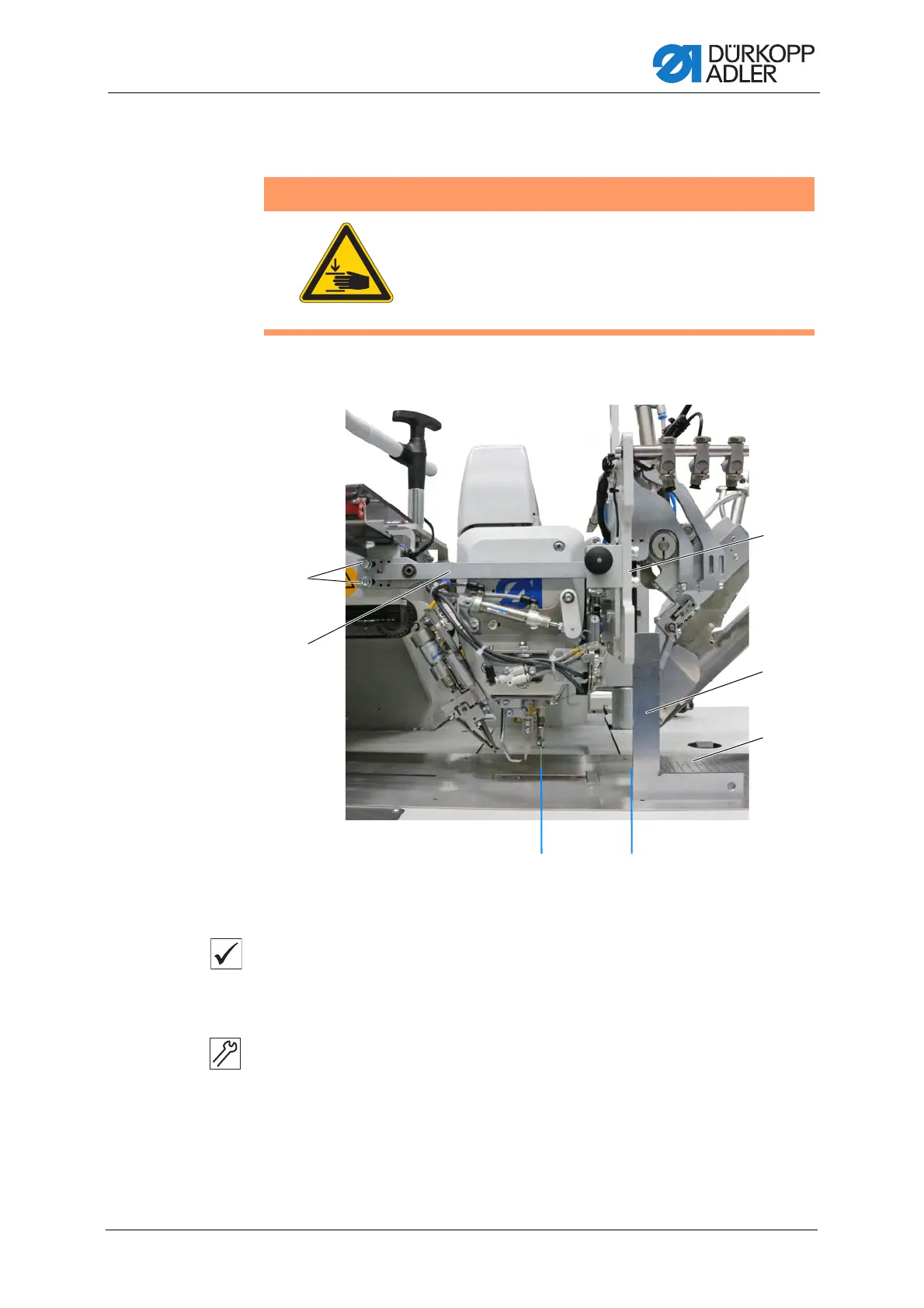

Fig. 106: Setting the folding station plate

Proper setting

The distance between the middle of the needle and the outer side of

the folding station plate (5) must be 87 mm.

To set the folding station plate:

1. Switch off the needle transport.

2. Extend the folding station plate (5) up to the fabric sliding plate (3)

using a bracket (4).

3. Check the distance to the needle.

WARNING

Risk of injury from moving parts!

Crushing possible.

Switch off the machine before you set the folding

station plate.

(1) - Screws

(2) - Ratchet lever

(3) - Fabric sliding plate

(4) - Bracket

(5) - Folding station plate

③

④

⑤

①

87 mm

②
