Automatic corner knife station (straight/slanted pocket)
150 Service Instructions 755 A/756 A - 00.0 - 02/2019
21.1.2 Setting the piercers
Proper setting
The tips of the piercers are positioned as closely together as possible
without hindering each other's movement.

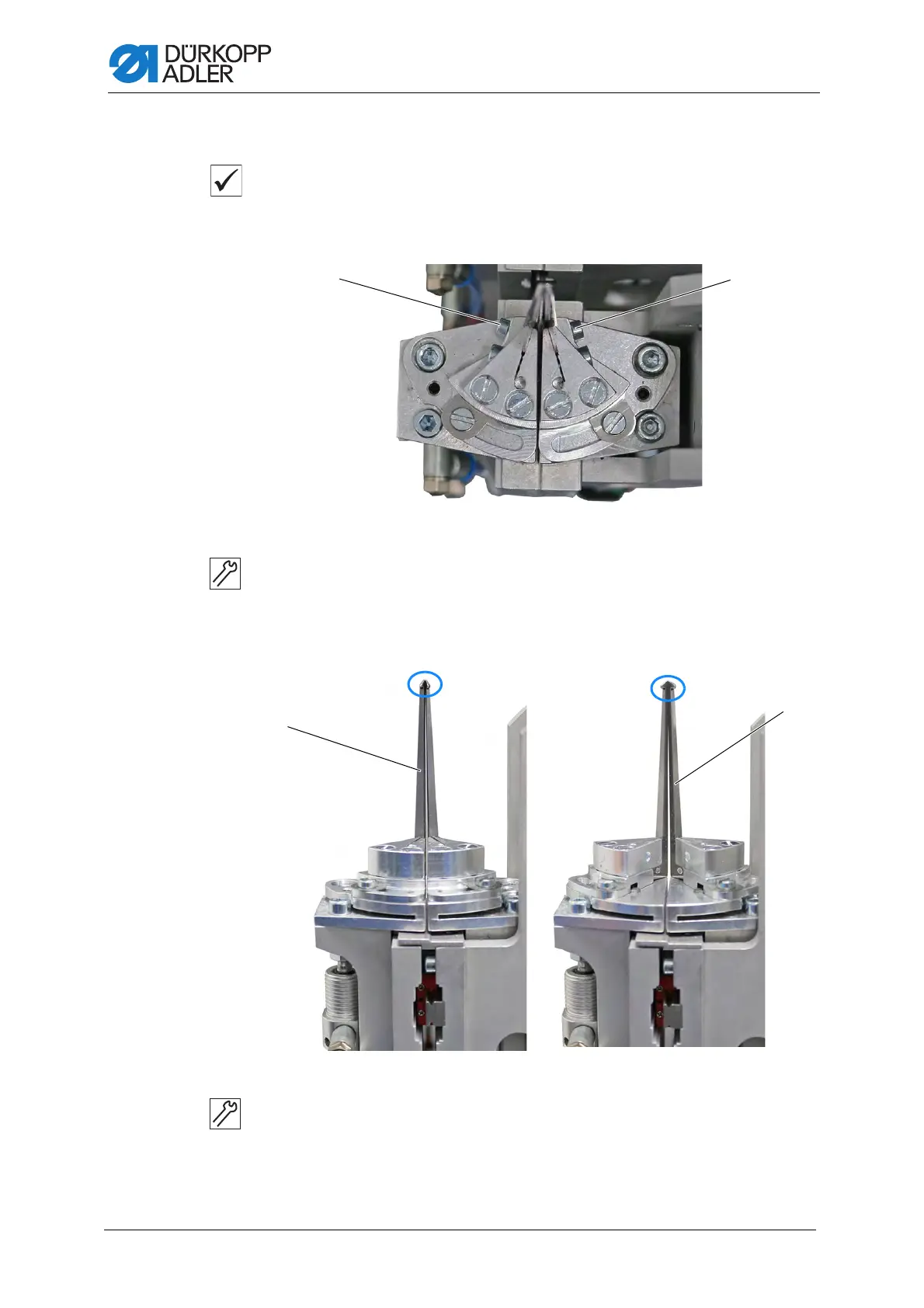

Fig. 147: Setting the piercers (1)
To set the piercer:
1. Remove the corner knives.
2. Loosen screws (1) and (2).
Fig. 148: Setting the piercers (2)
3. Turn piercers (3) and (4) such that their tips are flush.
(1) - Screw (2) - Screw
(3) - Piercer (4) - Piercer
