Transport carriage

120 Service Instructions 755 A/756 A - 00.0 - 02/2019

18.4 Setting the toothed belt tension

Use a commonly available frequency meter (60Hz) to set the toothed belt

tension.

Information

If too loose or too tight, the set tension of the toothed belt can cause

the transport clamp to experience step or position losses.

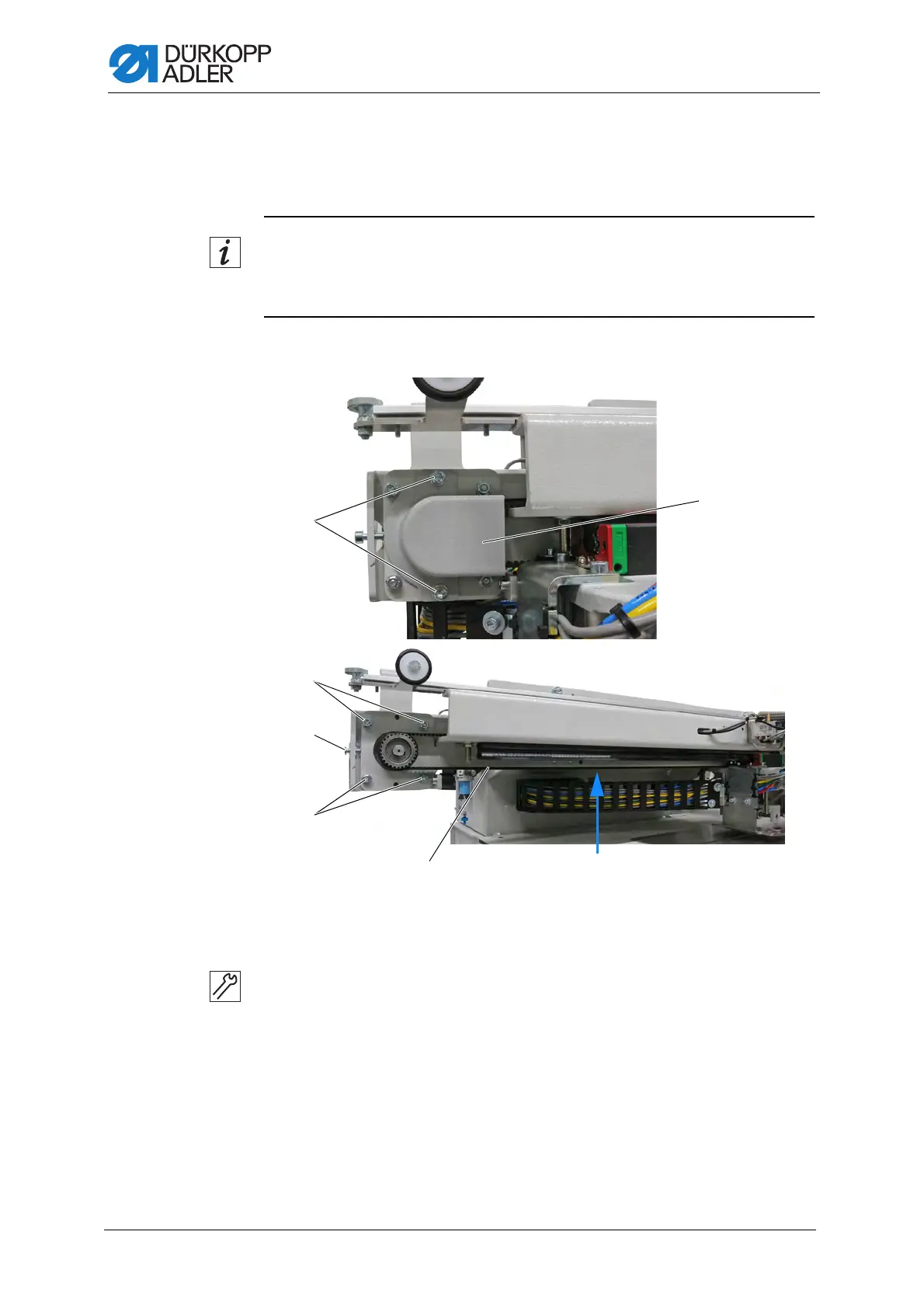

Fig. 122: Setting the toothed belt tension

To set the toothed belt tension:

1. Set the transport carriage to the loading position by sliding it all

the way to the front.

2. Loosen the screws (1).

3. Remove toothed belt cover (5).

4. Loosen the screws (2).

5. Tension the toothed belt (4) using the screw (3).

6. Measure the toothed belt tension in the middle of the toothed belt.

 The toothed belt tension is 60 Hz.

(1) - Screws

(2) - Screws

(3) - Screw

(4) - Toothed belt

(5) - Toothed belt cover

⑤

①

②

③

④

Measuring point
