Working basis

18 Service Instructions 755 A/756 A - 00.0 - 02/2019

3.4 Swiveling down the machine head

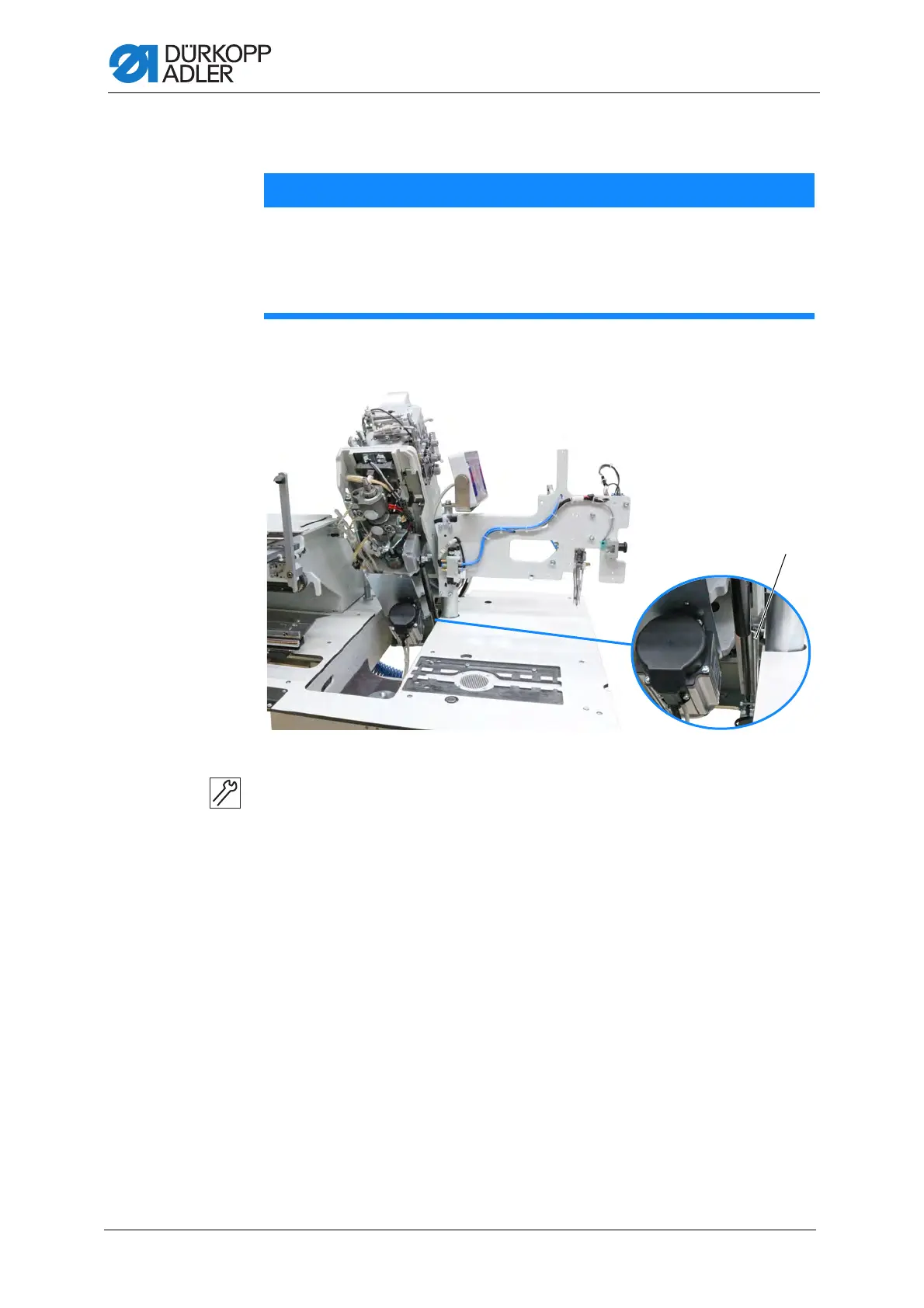

Fig. 4: Swiveling down the machine head (1)

To swivel down the machine head:

1. Raise the machine head until the latch (1) disengages.

2. Lower the machine head carefully.

NOTICE

Property damage may occur!

Possible damage to the light barriers or needle breakage.

Do NOT grab the machine head in the area of the light barriers or

the needles when swiveling it down.

(1) - Latch

①
