Transport carriage

116 Service Instructions 755 A/756 A - 00.0 - 02/2019

To set the reference position of the transport carriage:

1. Loosen the nuts (2) at the reference switch (1).

2. Set the distance between reference switch (1) and switching screw (3)

to 0.5 mm.

3. Tighten the nuts (2).

18.2 Setting the front end position of the transport carriage

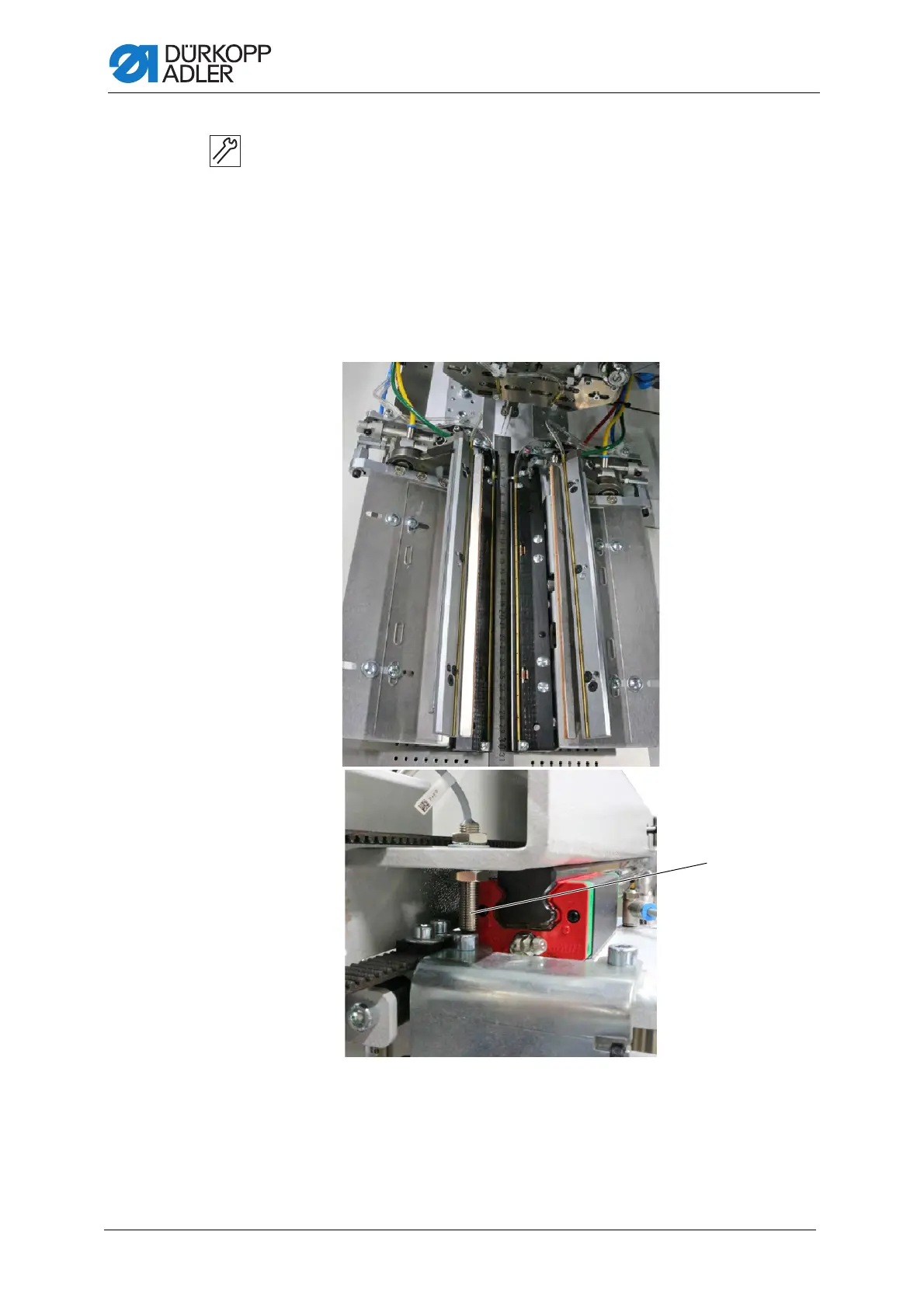

Fig. 119: Setting the front end position of the transport carriage

(1) - Reference switch

①
