Endless zipper feed (optional)
204 Service Instructions 755 A/756 A - 00.0 - 02/2019

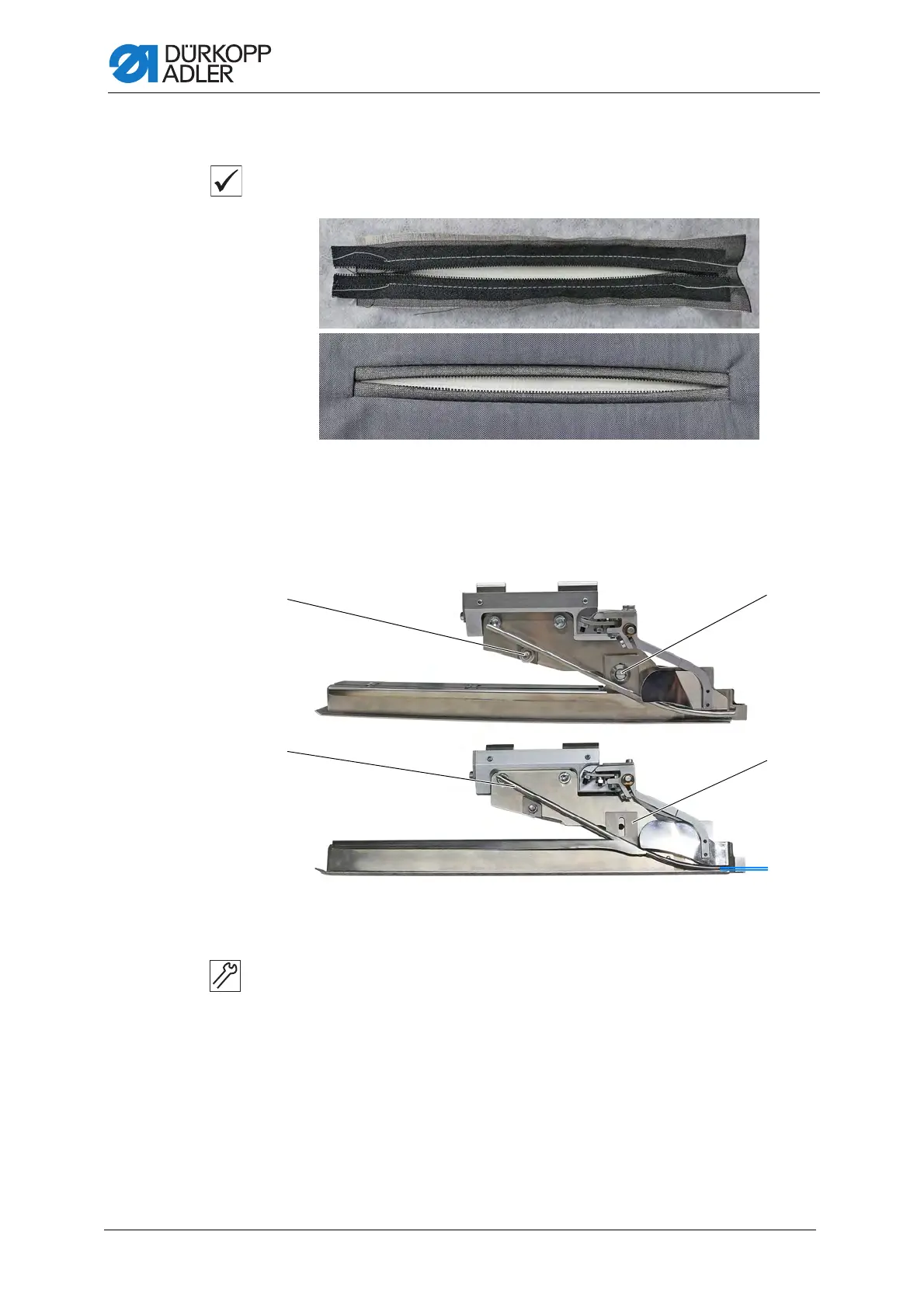

26.2 Setting the guide rails at the folder
Proper setting
Fig. 201: Setting the guide rails at the folder (1)
The zipper projections are short and have the same length.
The zipper is not / barely visible below the sewn-in piping.
Fig. 202: Setting the guide rails at the folder (2)
To adjust the guide rails at the folder:
1. Remove the folder.
2. Loosen screws (1) and (4).
3. Set the width of the guide rails.
Slide washers under the holder (3) or remove them to set the width.
4. Set the height of the guide rails.
Tighten the holder (3) using the screw (4).
While doing so, set the height of the holder (3) in the slotted hole.
Initial position: The distance between the upper edge of the folder
sole and the lower edge of the guide rail (2) is 2 mm.
(1) - Screw
(2) - Guide rail
(3) - Washers (1 mm)
(4) - Holder
(5) - Screw
