Transport clamps
132 Service Instructions 755 A/756 A - 00.0 - 02/2019
19.5 Setting the blowing of the piping strips

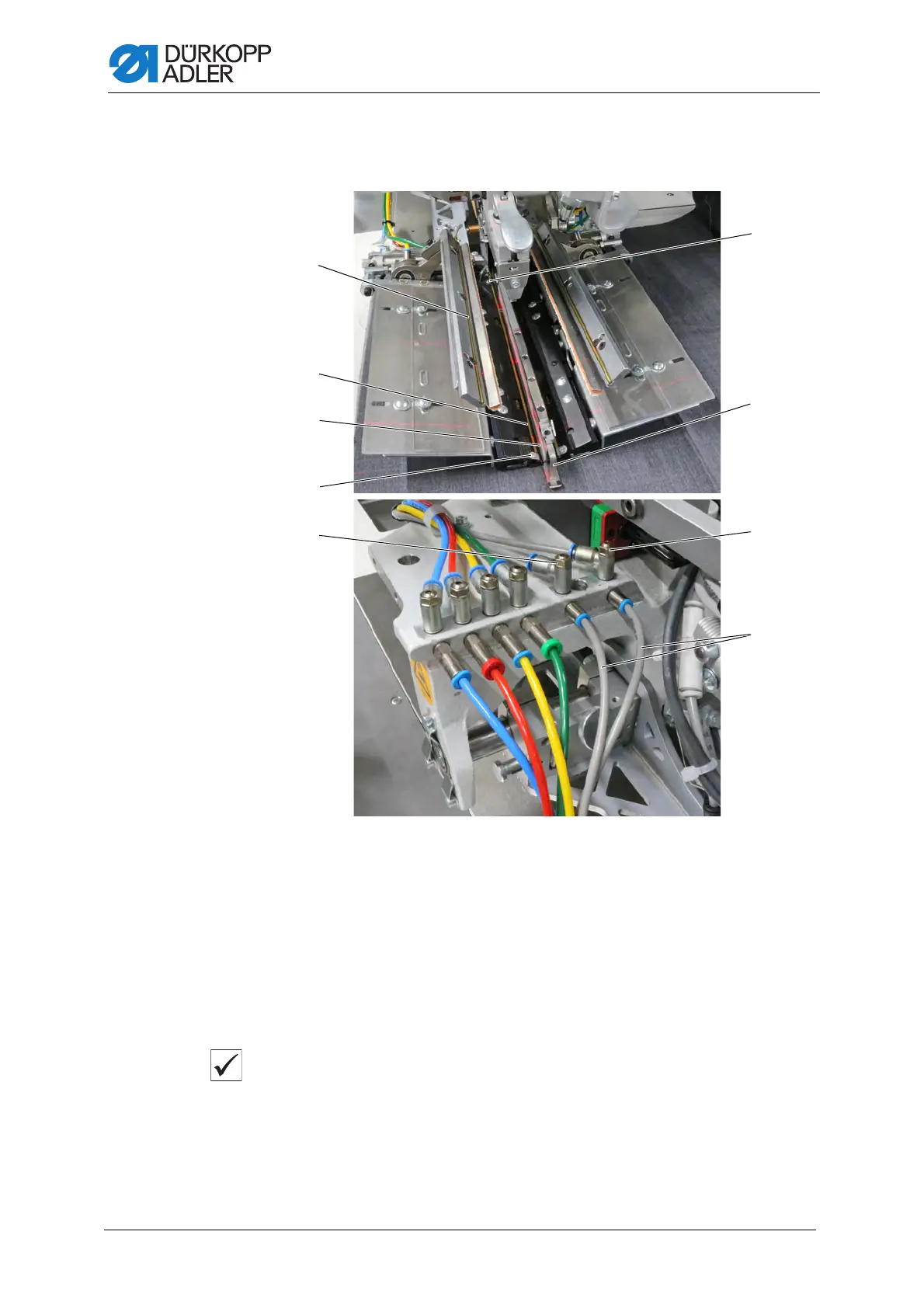

Fig. 132: Setting the blowing of the piping strips (1)
The optional kit 0755 590804 for blowing is available for clamp K35.
Furthermore, blow tubes are integrated in the folding plates and the flap
clamps. The blowing of the piping strip/pocket bag may be necessary in
case of thin fabrics and/or high piping projection.
Proper setting
The air stream escaping from blow tubes (1) and (2) must be adjusted
in such a way that the piping strip (3) is sufficiently blown on the folder (8)
and safely guided into the guide plates.
(1) - Blow tube pocket bag
(2) - Blow tube piping strips
(3) - Piping strip
(4) - Clamping screw
(5) - Throttle valve flap clamp
(6) - Line blow-out
(folding plate and flap clamp)
(7) - Throttle valve folding plate
(8) - Pick-up folder
①
②
③
④
⑤
⑥
⑦
⑧
④
