Needle bar

54 Service Instructions 755 A/756 A - 00.0 - 02/2019

6.2.6 Disassembling the needle bar linkage

Order

Disassemble the needle bar linkage first ( p. 45).

Disassembling the needle bar linkage

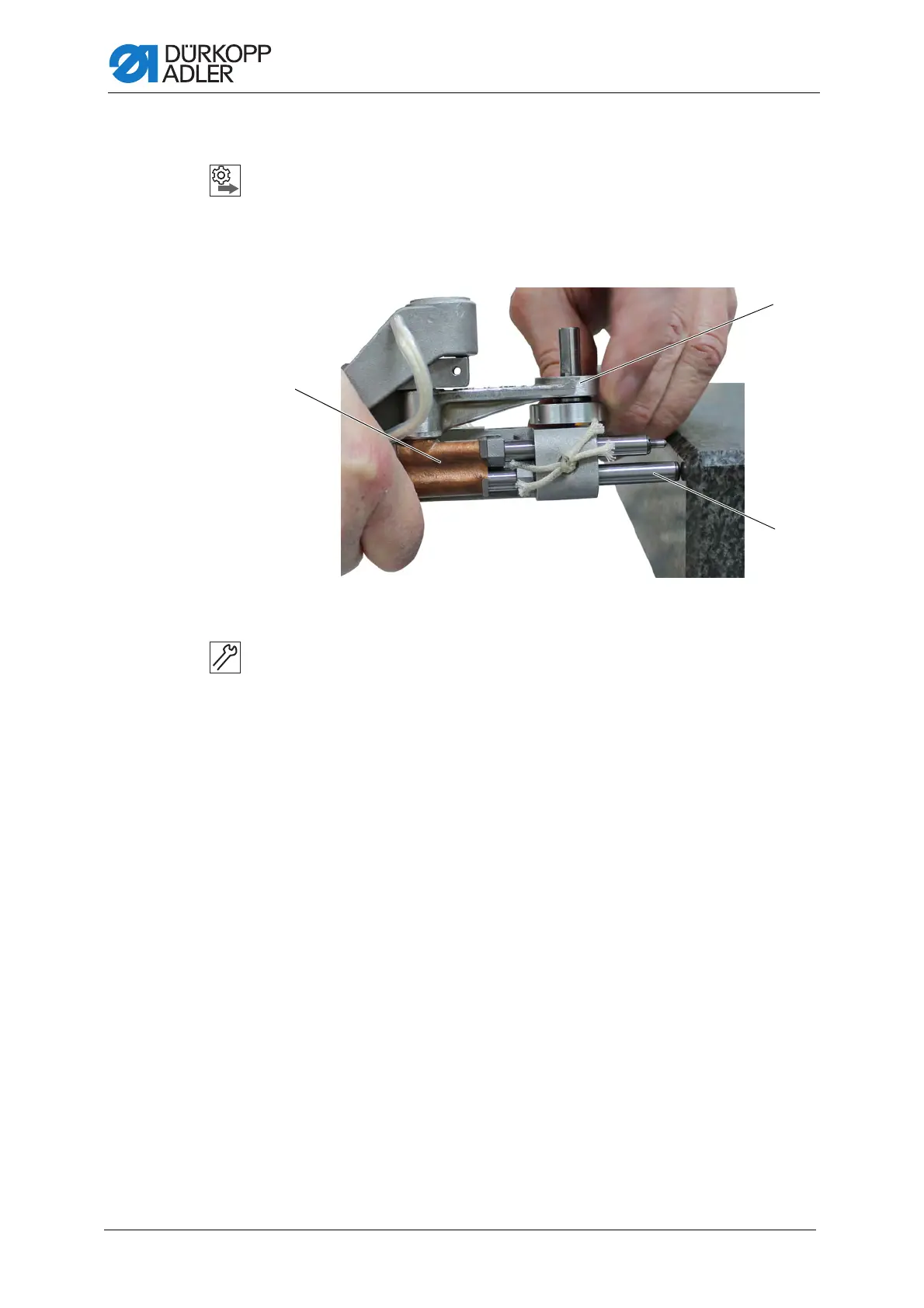

Fig. 50: Disassembling the needle bar linkage (1)

To disassemble the needle bar linkage:

1. Switch one needle bar off manually:

• Pull the pull rod (3) up and hold it in place

• Fix the needle bar (2) in place on a solid surface and press in the

coupling bar

• Pull the pull rod (3) downwards

 The fixed needle bar has been switched off.

2. Unscrew the needle holder.

(1) - Crosshead

(2) - Needle bar

(3) - Pull rod

②

③

①
