Disassembling and assembling the machine head
26 Service Instructions 755 A/756 A - 00.0 - 02/2019

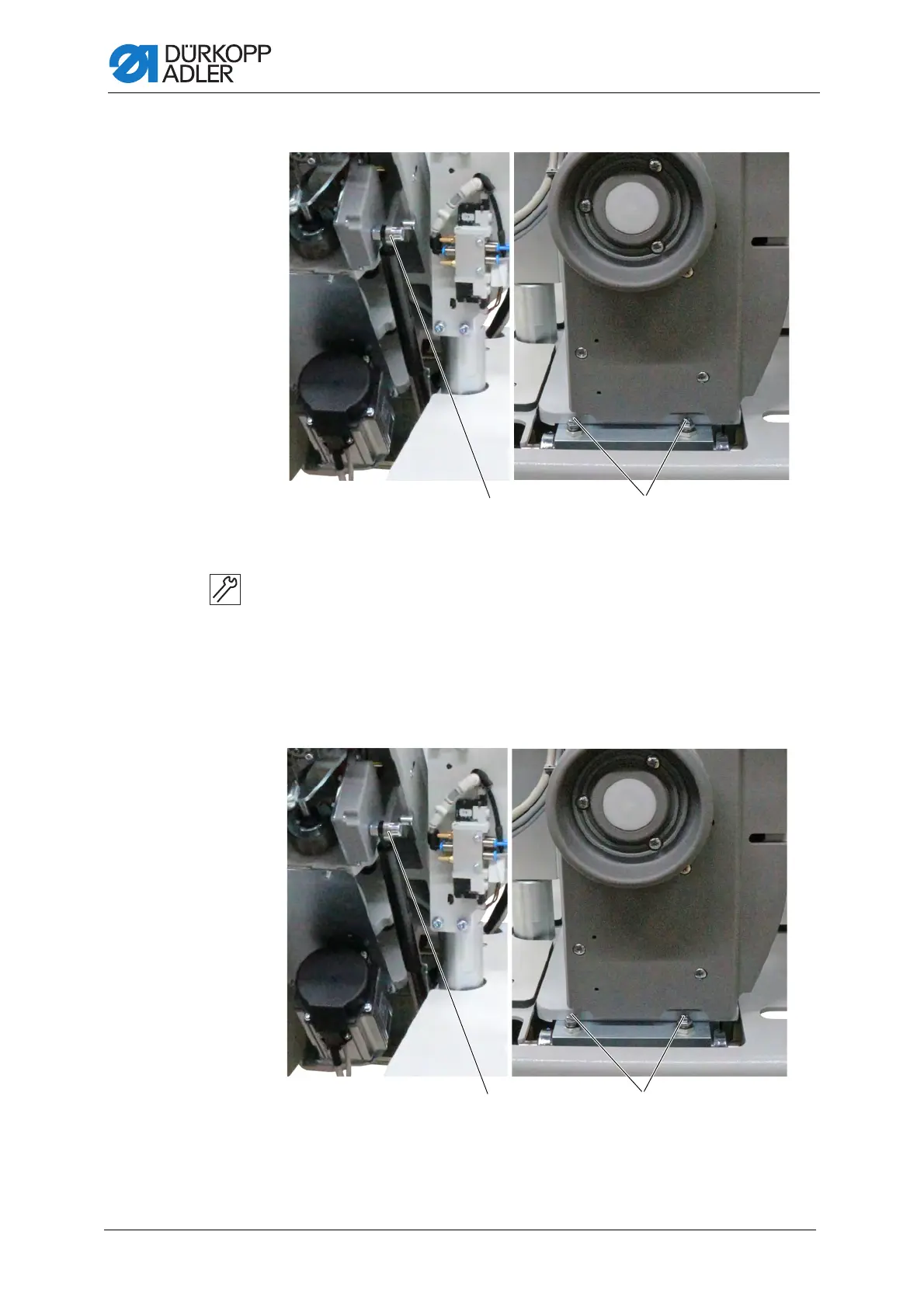

Fig. 12: Disassembling the machine head (2)
4. Loosen the gas shock absorber connection (3).
5. Loosen the screws (4).
6. Use a suitable tool to carefully lift the machine head up and out.
5.2 Assembling machine head
Fig. 13: Assembling machine head (1)
(3) - Gas shock absorber connection (4) - Screws
③④
o
(1) - Gas shock absorber connection (2) - Screws
①②
