Setting the trimming and clamping device for the hook threads
94 Service Instructions 755 A/756 A - 00.0 - 02/2019
13.2 Setting the height of the hook thread trimmer

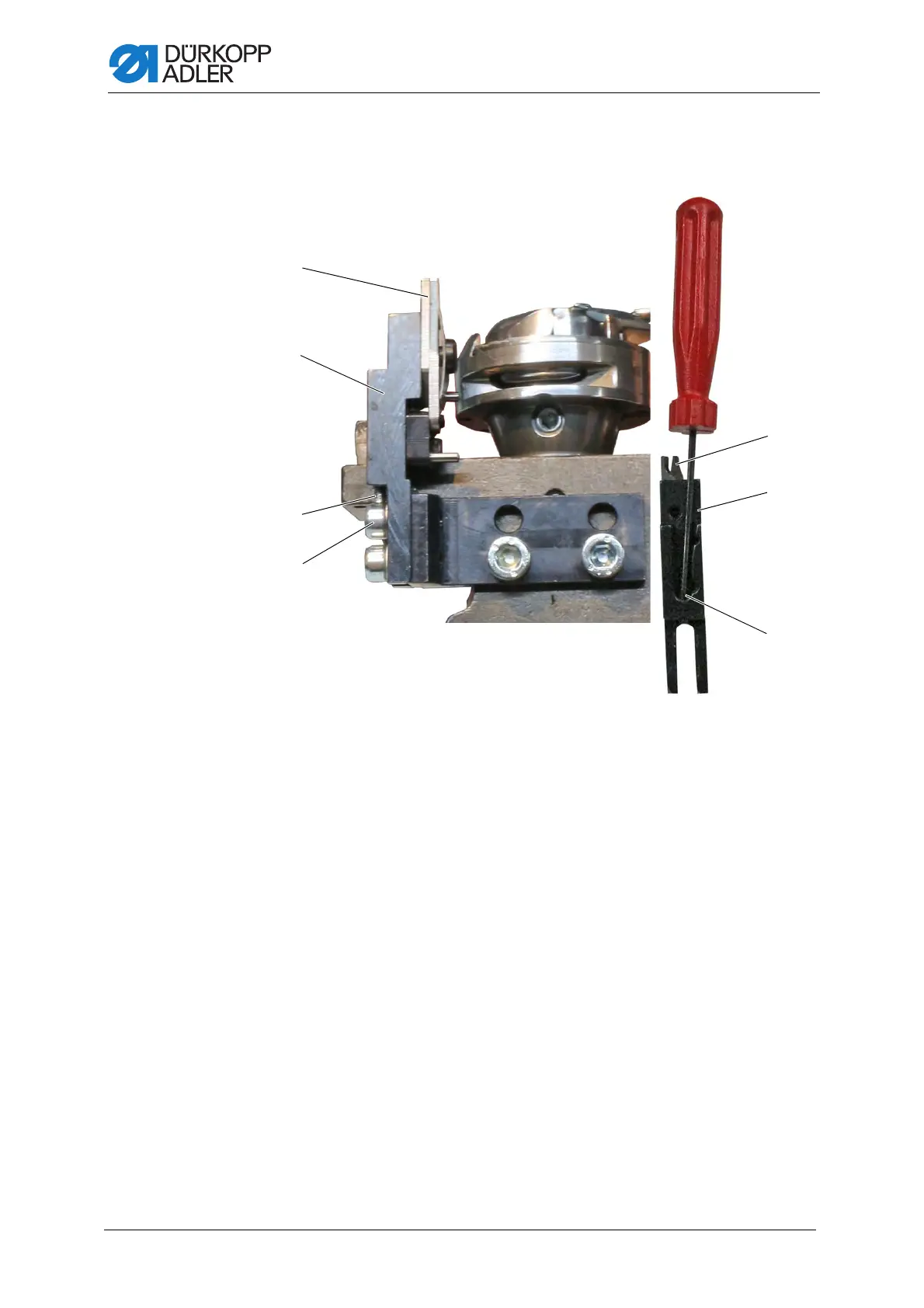

Fig. 99: Setting the height of the hook thread trimmer (1)
You set the height of the hook thread trimmer by using the screw (3) in
the holder (2).
The screw (3) sits on top of screw (4), thus setting the height of the
holder (2).
(1) - Hook thread trimmer
(2) - Holder
(3) - Screw
(4) - Screw
