Automatic corner knife station (straight/slanted pocket)
162 Service Instructions 755 A/756 A - 00.0 - 02/2019
21.5 Replacing corner knives

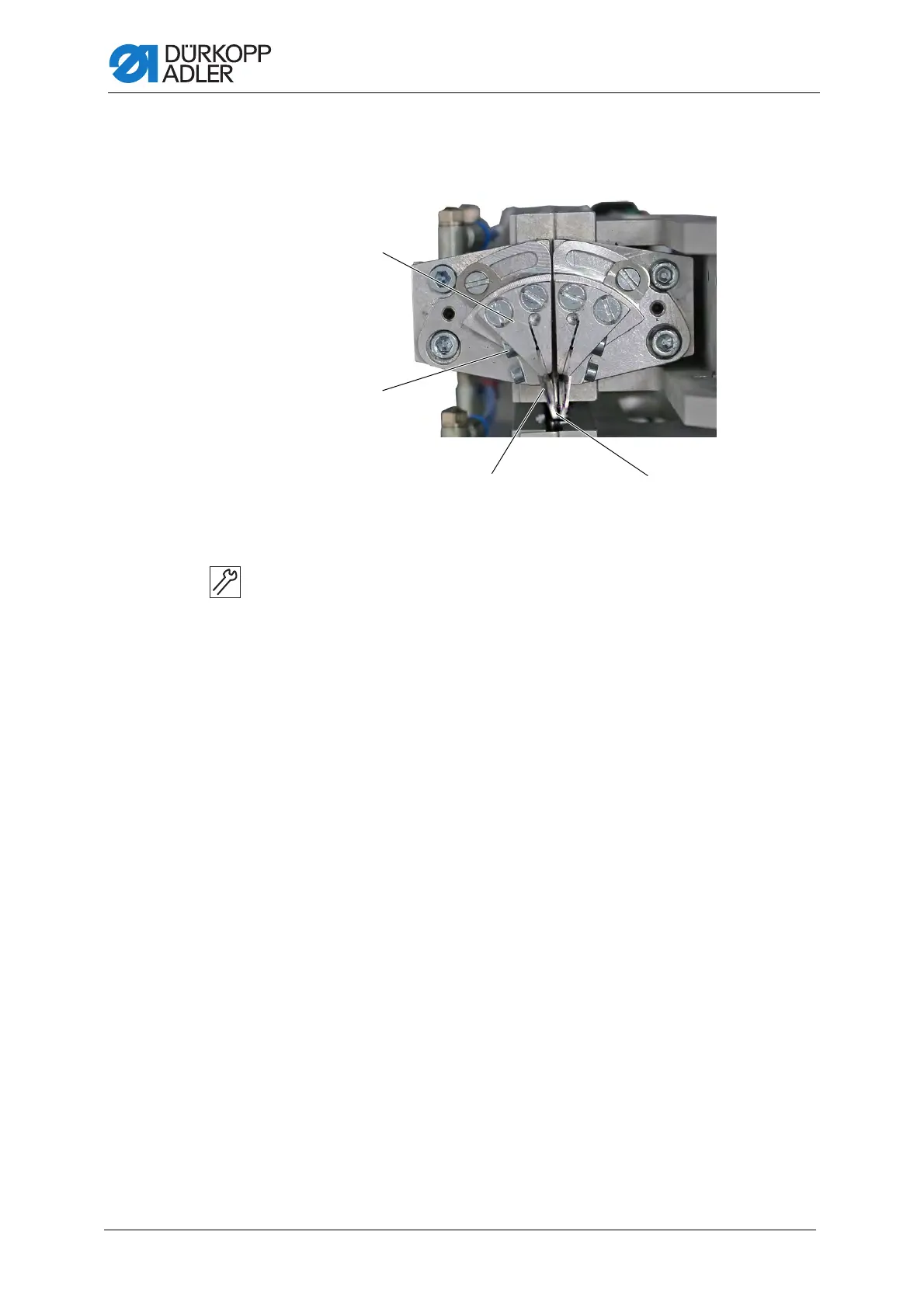

Fig. 160: Replacing corner knives
To replace the corner knives:
1. Swivel out the corner knife station.
2. Loosen the screw (2).
3. Remove the old corner knife.
4. Insert a new corner knife (3) into the corner knife holder (1).
5. Push the corner knife (3) upwards into the piercer (4).
 The tips or the knives must be situated in the depression of
the piercer (4).
6. Tighten the screw (2).
7. Swivel in the corner knife station.
(1) - Corner knife holder
(2) - Screw
(3) - Corner knife
(4) - Piercer
