Folder
Service Instructions 755 A/756 A - 00.0 - 02/2019 105
17.3 Aligning the folder with the middle of the pocket opening

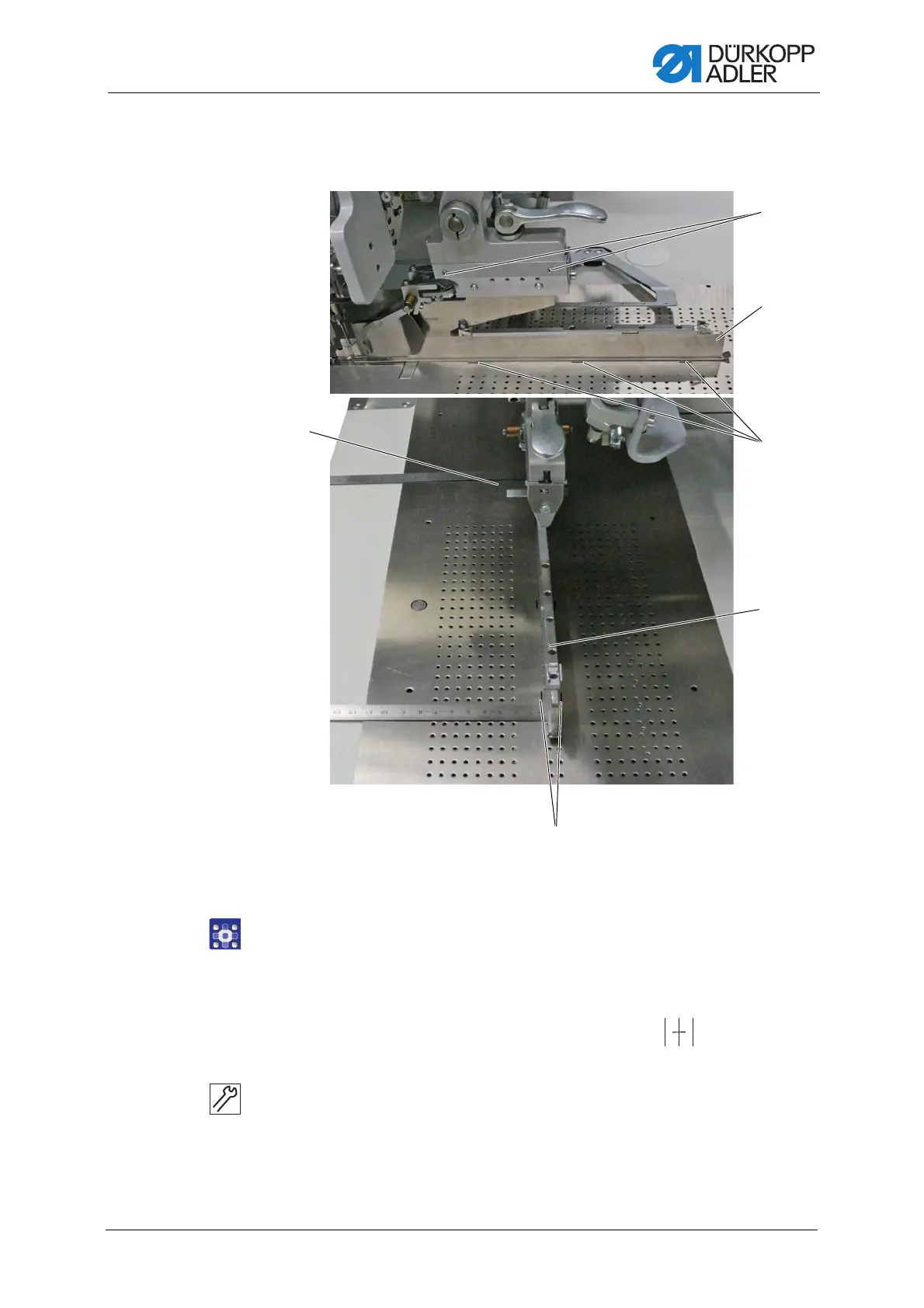

Fig. 109: Aligning the folder with the middle of the pocket opening (1)
To align the folder with the middle of the pocket opening:
1. Lower the folder (3) without pressure.
 The folder (3) is parallel to the sliding plate edge (1) along its entire
length.
The folder (3) is centered between the markings (2) on the
sliding plate.
2. Loosen the screws (4).
3. Center the folder (3).
4. Tighten the screws (4).
(1) - Sliding plate edge
(2) - Markings
(3) - Folder
(4) - Screws
