Needle bar

48 Service Instructions 755 A/756 A - 00.0 - 02/2019

6.2.5 Assembling the needle bar linkage

Assembling the needle bar linkage

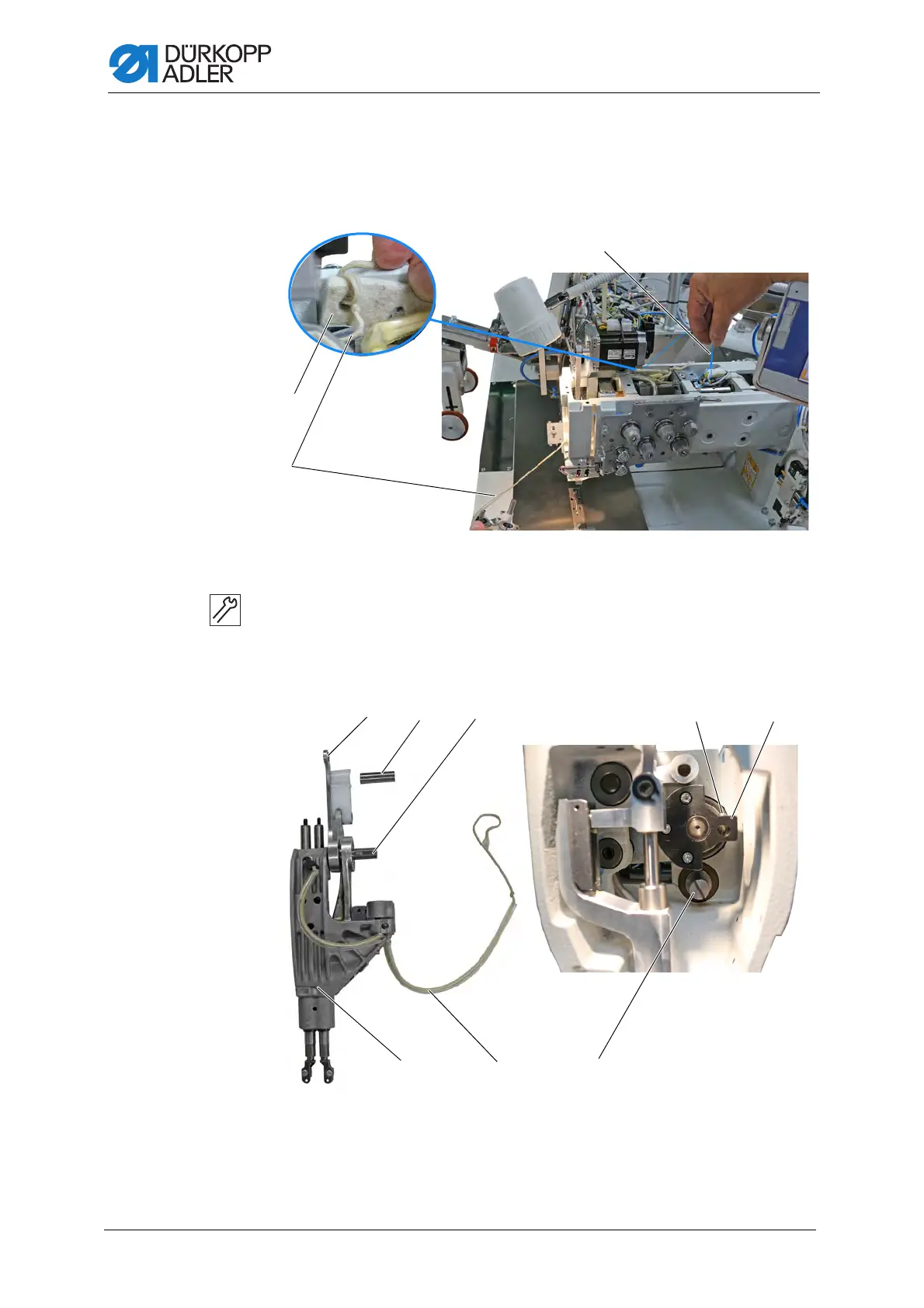

Fig. 41: Assembling the needle bar linkage (1)

To assemble the needle bar linkage:

1. Use a threading wire (1) to feed the oil wick (3) through the machine

head.

Fig. 42: Assembling the needle bar linkage (2)

(1) - Threading wire

(2) - Felt

(3) - Oil wick

②

①

③

(3) - Oil wick

(4) - Pin

(5) - Bolt

(6) - Thread lever

(7) - Needle bar linkage

(8) - Shaft

(9) - Arm shaft crank

(10) - Screws

⑥⑨④

⑦③⑧

⑩⑤
