Working basis
20 Service Instructions 755 A/756 A - 00.0 - 02/2019
3.5 Setting the handwheel scale

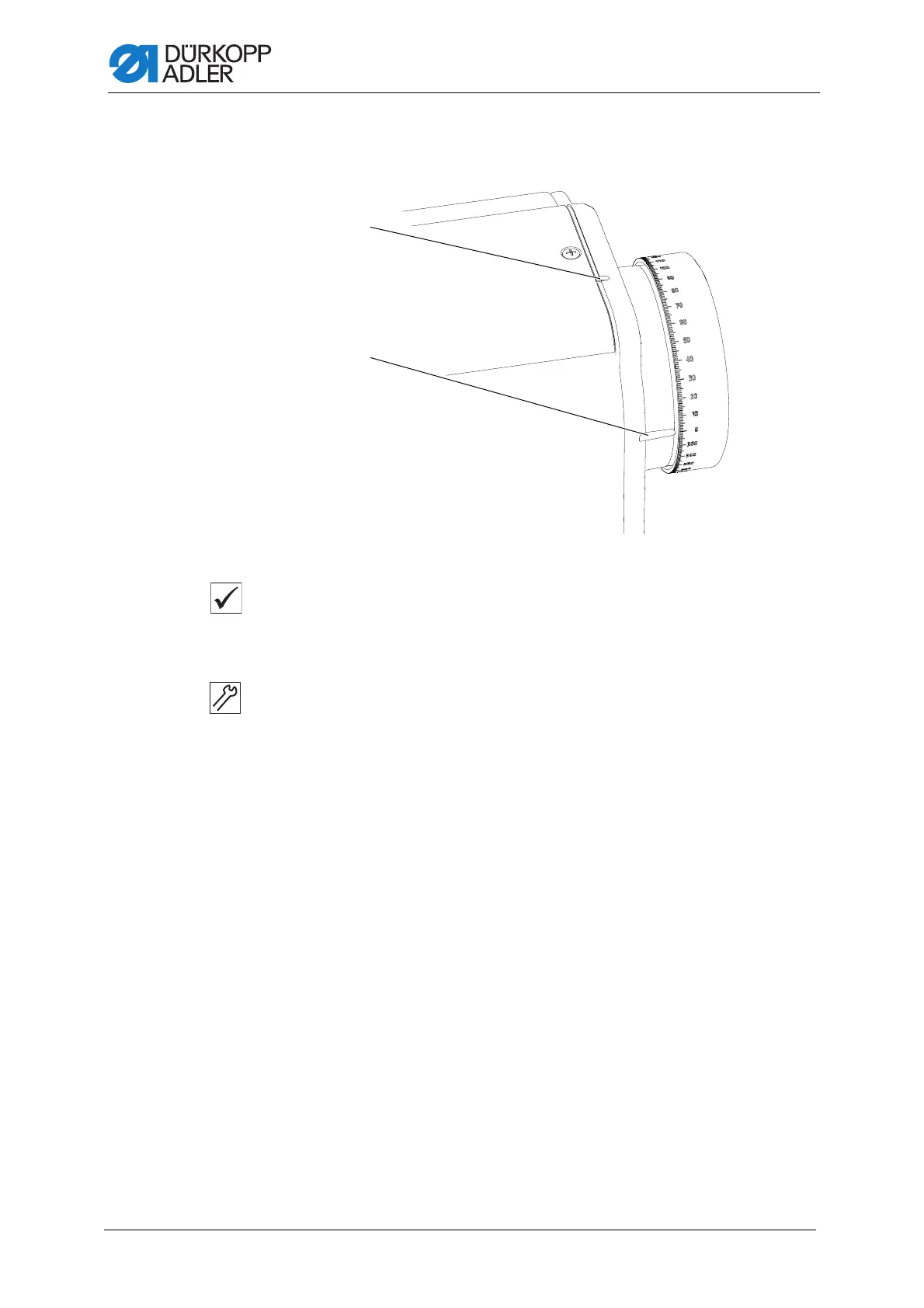

Fig. 6: Setting the handwheel scale
Proper setting
The machine is locked in place at position 2 ( p. 15).
The handwheel is at position 0°.
To set the handwheel scale:
The handwheel is fastened using 2 threaded pins, which you can see
through the slot (1).
1. Turn the handwheel until the 1
st
threaded pin is under the slot (1).
2. Loosen the threaded pin through the slot (1).
3. Turn the handwheel by 50° such that the 2
nd
threaded pin is under
the slot (1).
4. Loosen the threaded pin through the slot (1).
5. Lock the machine in place at position 2 ( p. 15).
6. Turn the handwheel scale so that the 0° is at the center of
the marking (2).
7. Tighten the threaded pin through the slot (1).
8. Remove the lock.
9. Move the handwheel into the 50° position.
10. Tighten the threaded pin through the slot (1).
(1) - Slot (2) - Marking
