Endless zipper feed (optional)
Service Instructions 755 A/756 A - 00.0 - 02/2019 205
Important
Make sure the guide rails (2) have the same height on both sides of the
folder.
The guide rails must not come into contact with the upper side of the
closed folding plates.
5. Thread the zipper ( p. 201).
6. Perform a sewing test and readjust if necessary.
26.3 Setting the lifting movement of the guide plates
Allowing the pocket bag halves to enter unhindered until sewing starts
requires that the lifting movement of the guide plates be set accordingly.

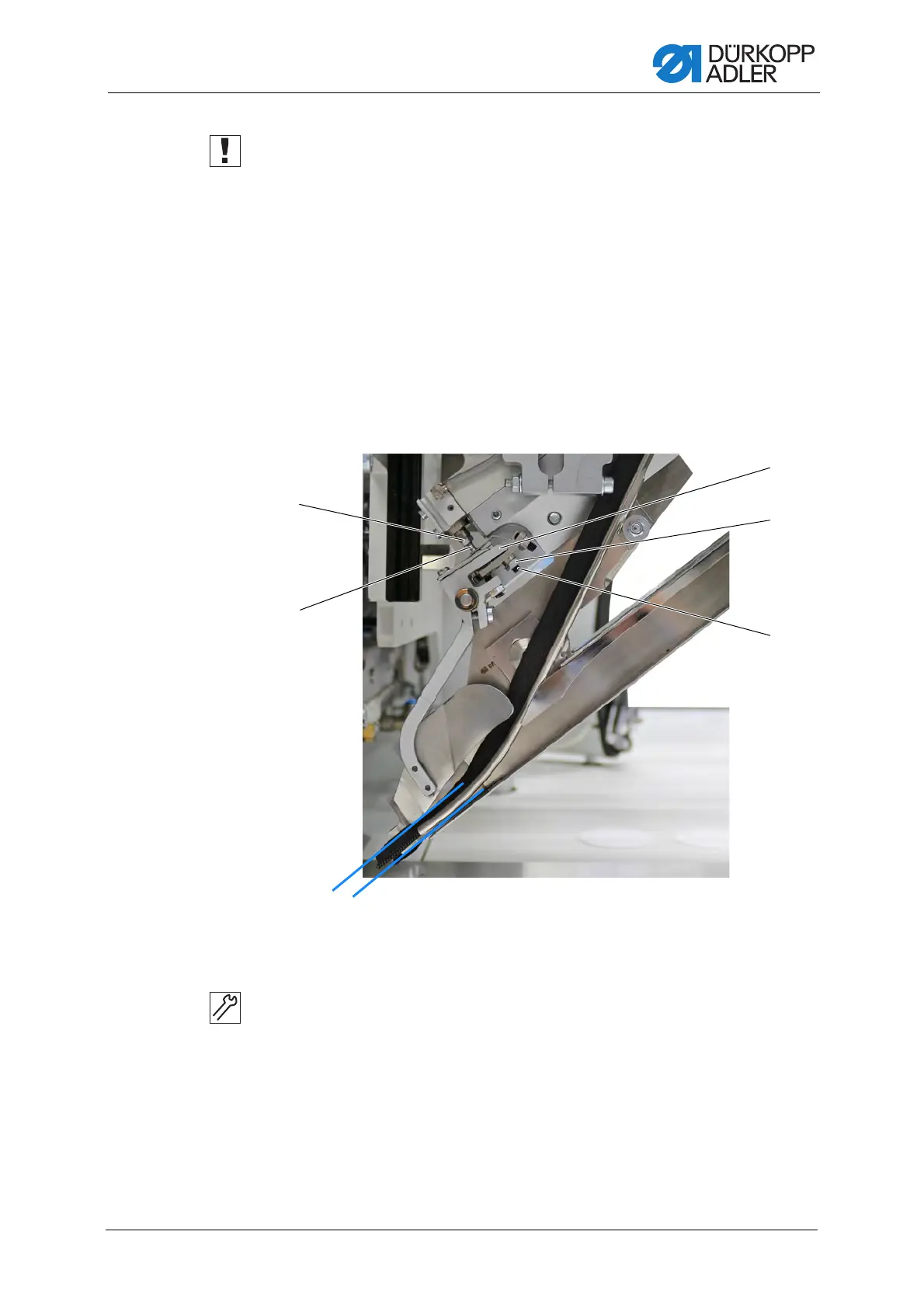

Fig. 203: Setting the lifting movement of the guide plates
To set the lifting movement of the guide plates:
1. Loosen the nut (4).
(1) - Nut
(2) - Screw
(3) - Screw
(4) - Nut
(5) - Lever
