Middle knife
78 Service Instructions 755 A/756 A - 00.0 - 02/2019
10 Middle knife
10.1 Changing the drive motor
10.1.1 Disassembling the drive motor

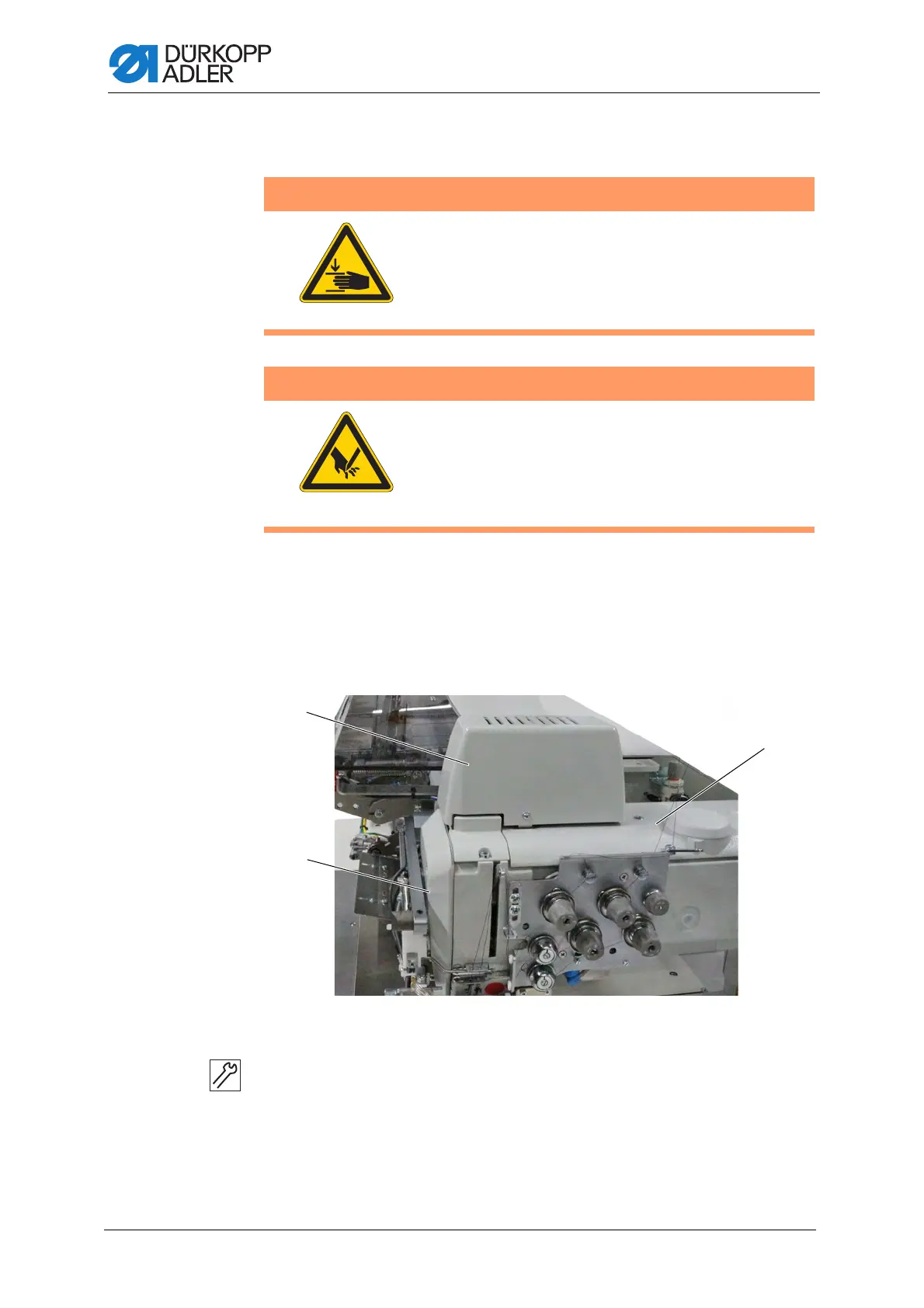

Fig. 80: Disassembling the drive motor (1)
To remove the drive motor:
1. Remove motor cover (1), arm cover (3) and head cover (2).
WARNING
Risk of injury from moving parts!
Crushing possible.
Switch off the machine before adjusting the middle
knife settings.
WARNING
Risk of injury from sharp parts!
Cutting possible.
Switch off the machine before adjusting the middle
knife settings.
Do NOT reach into the knife.
(1) - Motor cover
(2) - Head cover
(3) - Arm cover
