Transport clamps
Service Instructions 755 A/756 A - 00.0 - 02/2019 135
19.6.2 Setting the programmable transport clamp pressure
To set the programmable transport clamp pressure:
1. Open the menu Service > Machine config. to activate the
adjustable transport pressure ( p. 348).
2. Open the menu Program parameters > Process of transport
clamp to press the button and set the desired transport clamp
pressure.
19.7 Changing the toothed belt of the motorized transport
clamp

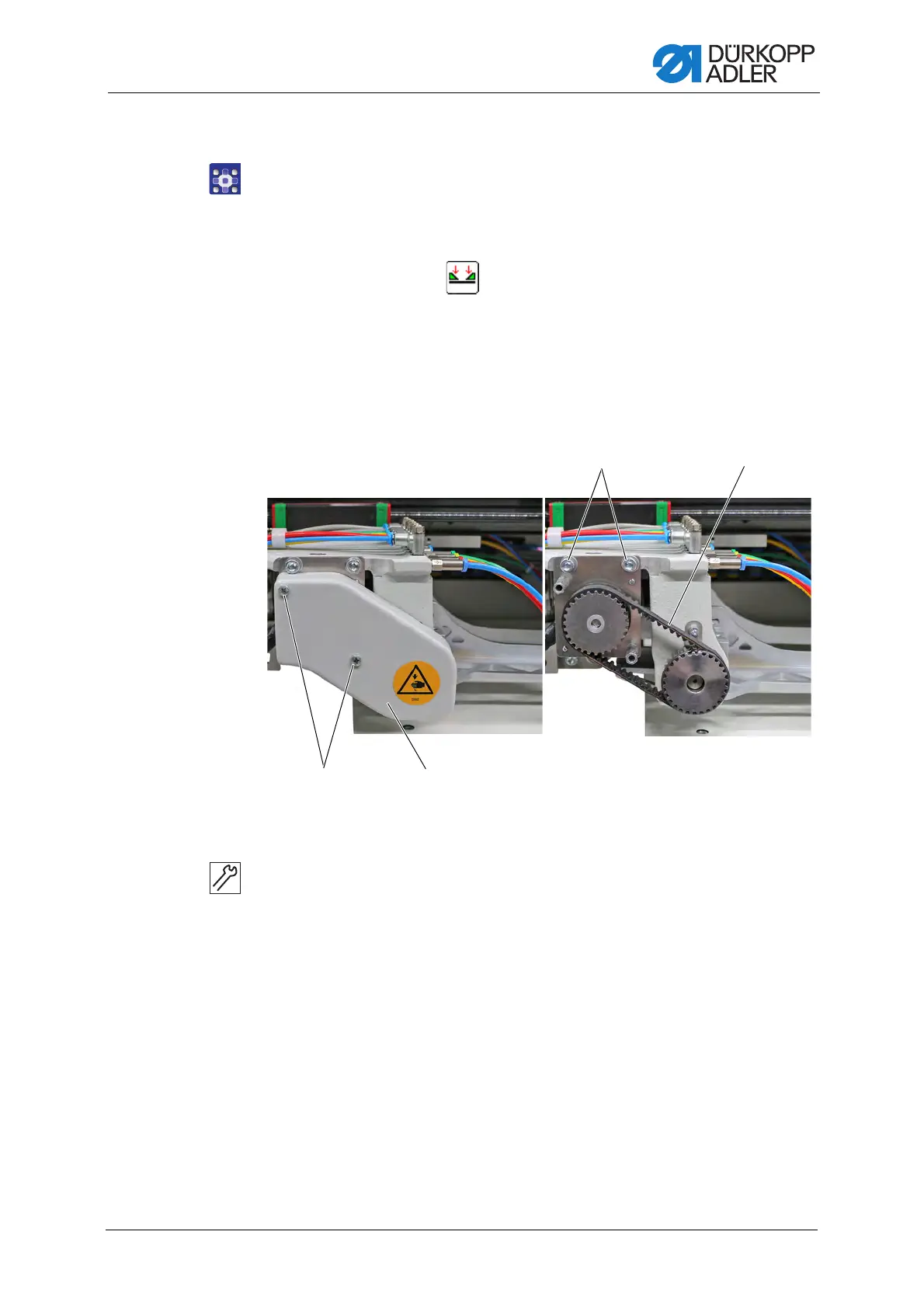

Fig. 135: Changing the toothed belt of the motorized transport clamp (1)
To change the toothed belt of the motorized transport clamp:
1. Loosen the screws (1).
2. Remove cover (2).
3. Loosen the screws (4).
 Motor bracket and toothed belt (3) are loose.
4. Remove the toothed belt (3) and place the new toothed belt.
5. Slide the motor bracket to the left in the slotted holes to tension
the toothed belt.
6. Tighten the screws (4).
7. Assemble the cover (2).
8. Tighten the screws (1).
(1) - Screws
(2) - Cover
(3) - Toothed belt
(4) - Screws
