Stacker

Service Instructions 755 A/756 A - 00.0 - 02/2019 263

28.3.2 Setting the pneumatic switch

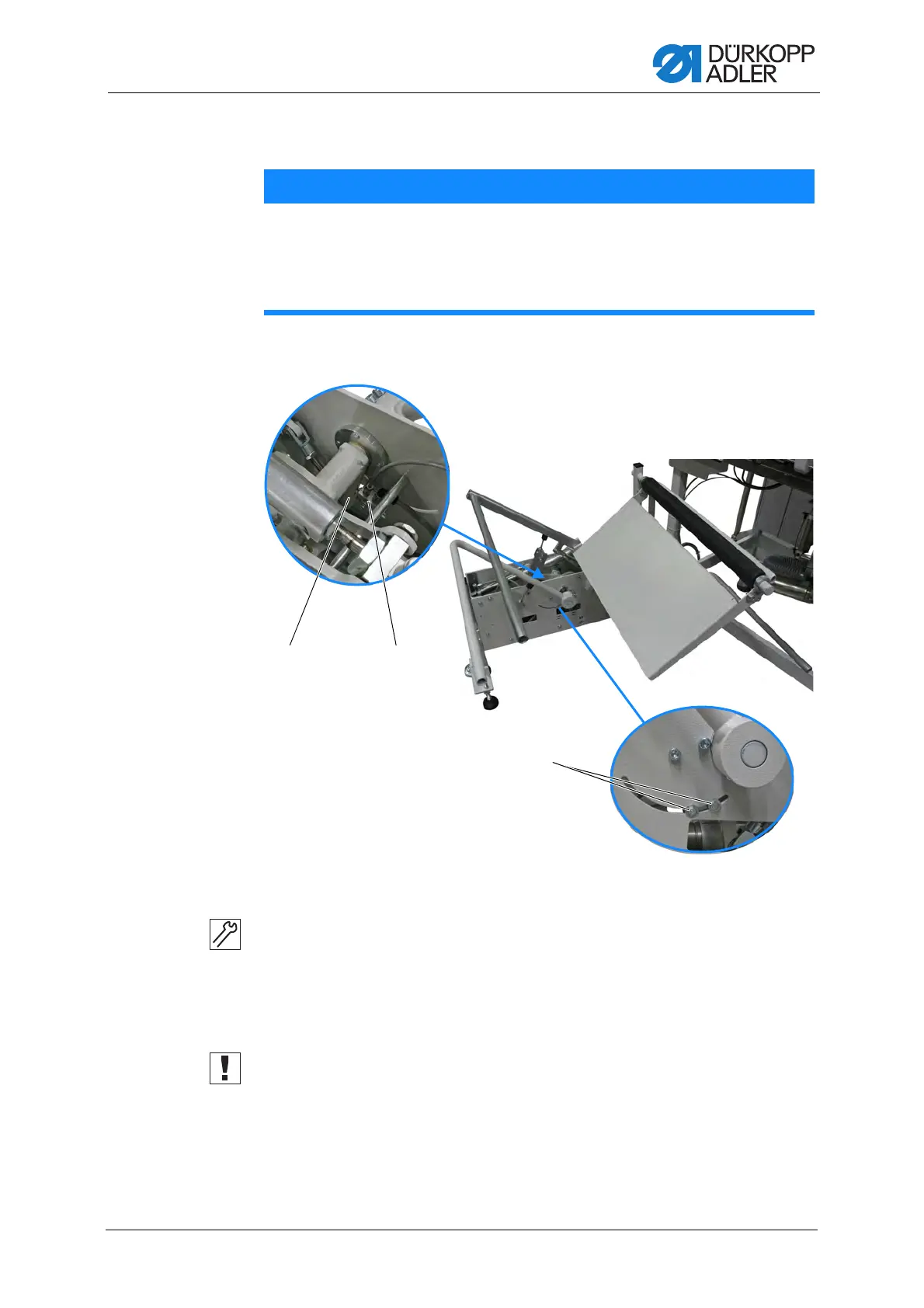

Fig. 259: Setting the pneumatic switch

To set the pneumatic switch:

1. Move the throw-over stacker to the rear end position.

 The throw-over stacker is opened all the way.

2. Shift the position of the screws (3) in the slotted hole to set the

pneumatic switch (2).

Important

Make sure the pneumatic switch operates (2) and that only the tappet and

NOT the housing is touched by the lever (1).

NOTICE

Property damage may occur!

Possible damage to or destruction of the pneumatic switch.

When replacing the pneumatic switch, make sure that the pneumatic

switch does not serve as a stop for the lever.

(1) - Lever

(2) - Pneumatic switch

(3) - Screws

③

①②
