Service Instructions 755 A/756 A - 00.0 - 02/2019 211

26.4.4 Setting the swivel width

Proper setting

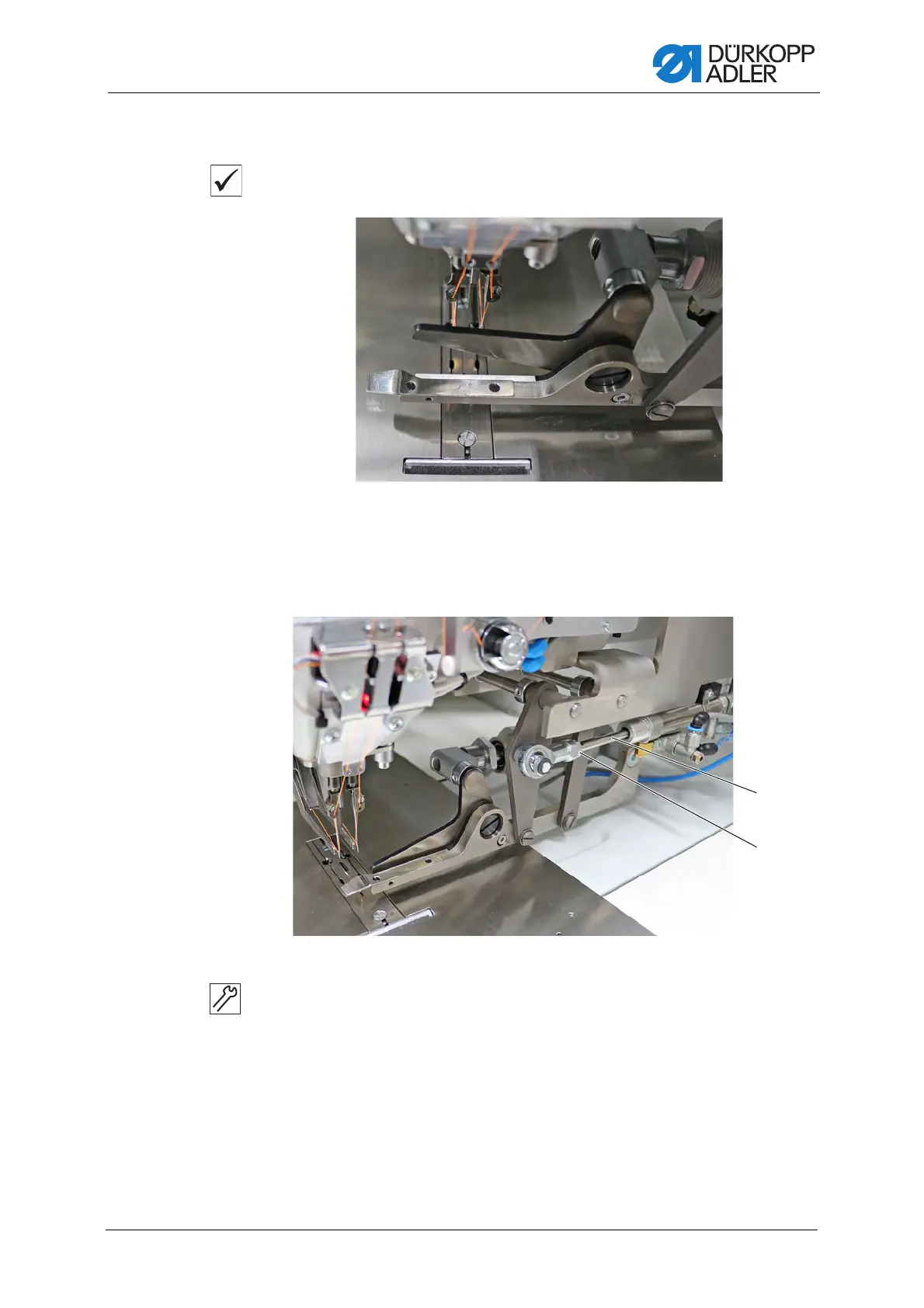

Fig. 208: Setting the swivel width (1)

The zipper cutter swivels out until the counter blade is centered above

the throat plate.

Fig. 209: Setting the swivel width (2)

To set the swivel width:

1. Loosen the nut (2).

2. Turn the piston rod (1).

 The zipper cutter swivels out until the counter blade is centered

above the throat plate.

3. Tighten the nut (2).

(1) - Piston rod (2) - Nut
