Assembling the vacuum unit (optional)

Service Instructions 755 A/756 A - 00.0 - 02/2019 199

25 Assembling the vacuum unit (optional)

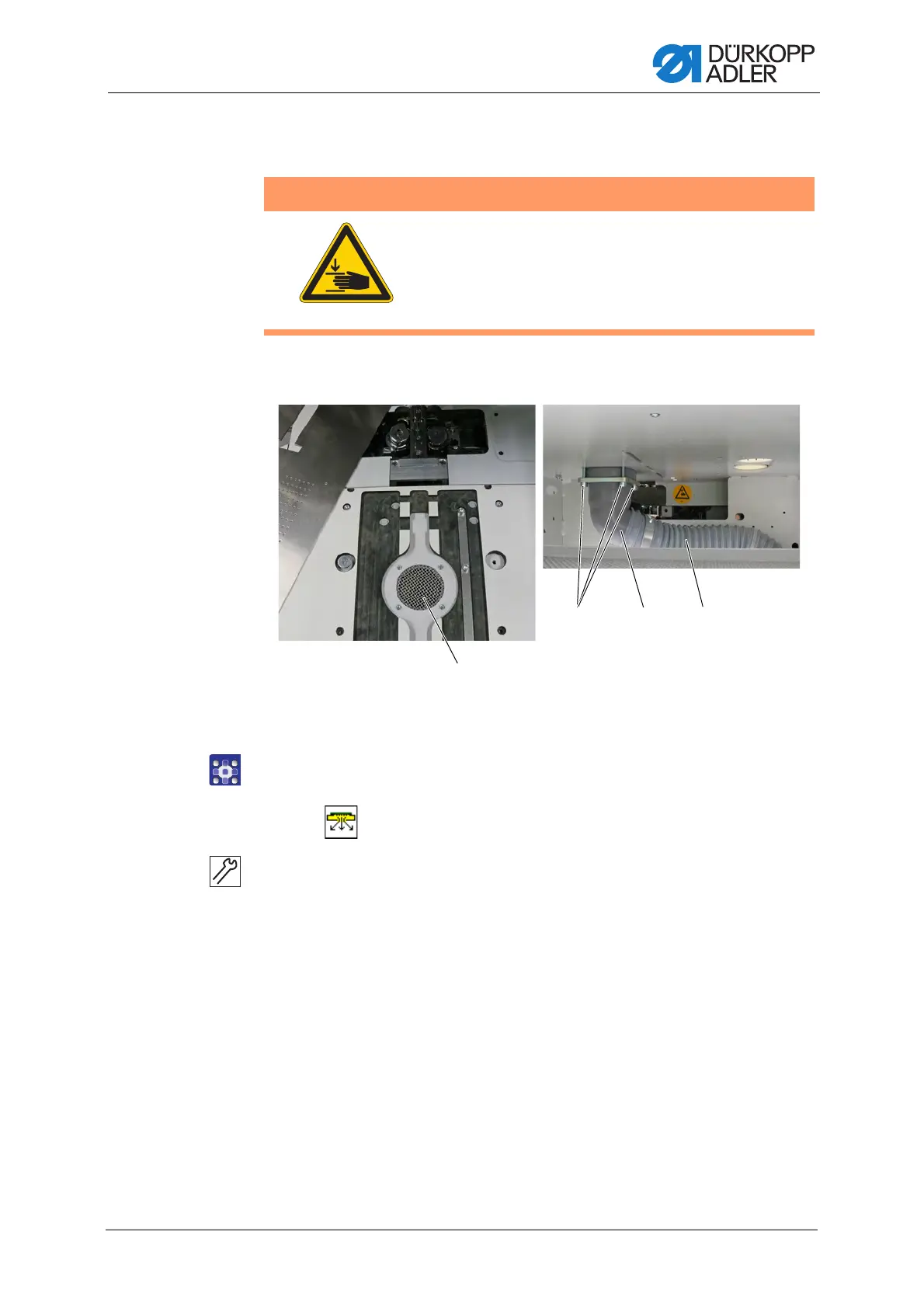

Fig. 196: Assembling the vacuum unit (1)

To assemble the vacuum unit:

1. Open the menu Service > Machine config. and press

the button.

2. Remove the fabric sliding plate.

3. Tighten the screen (1) and the connection (3) with screws (2) under

the tabletop.

4. Lay the hose (4) under the tabletop.

WARNING

Risk of injury from moving parts!

Crushing possible.

Switch off the machine before assembling the

vacuum unit.

(1) - Screen

(2) - Screws

(3) - Connection

(4) - Hose

①

④②

③
