Transport clamps
Service Instructions 755 A/756 A - 00.0 - 02/2019 123
19 Transport clamps

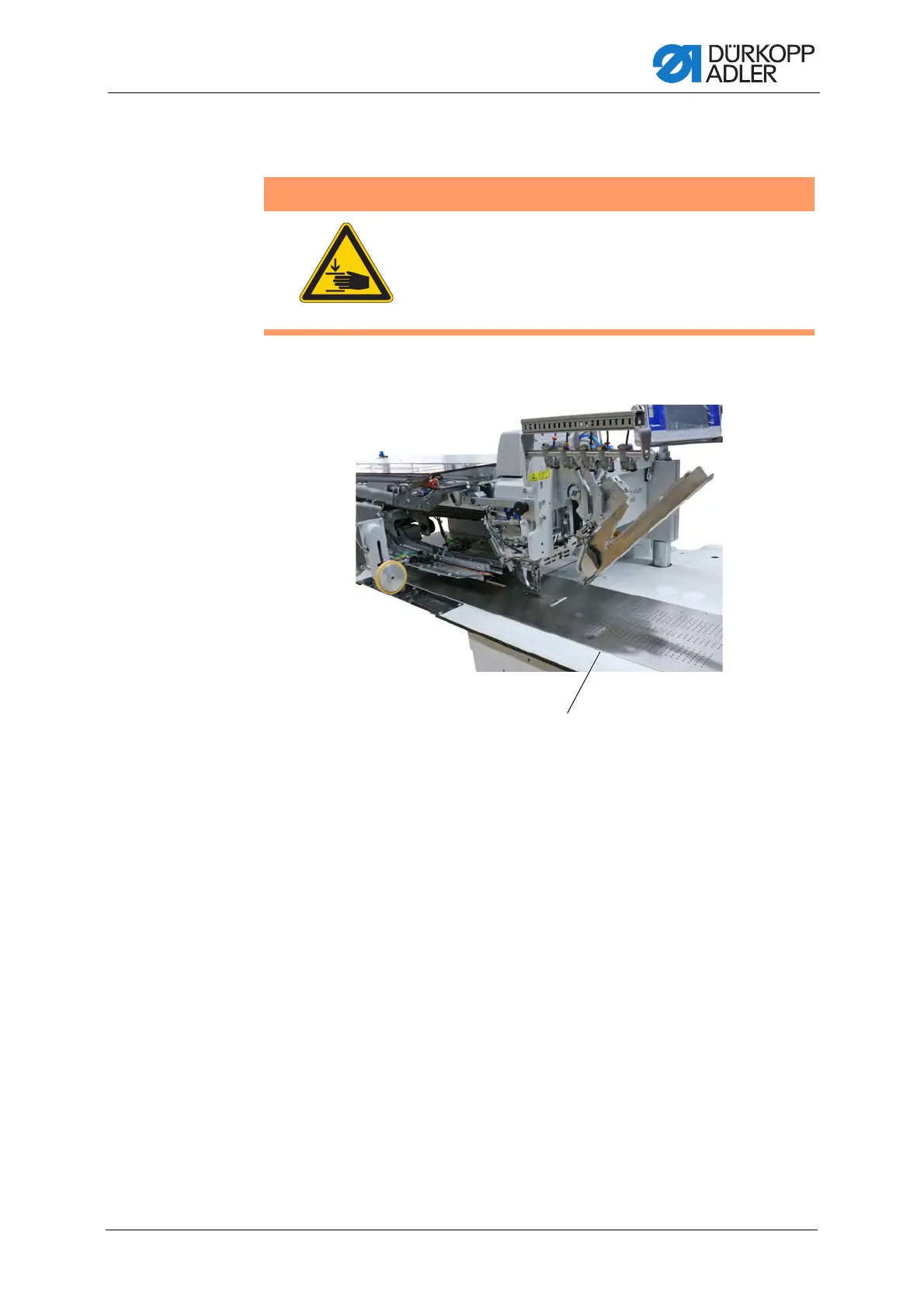

Fig. 123: Transport clamps
The unhindered transport of the sewing material and the proper execution
of the pocket opening require that the folding and cutting tools as well as
the marking lamps are aligned with the middle of the pocket opening.
Use the edge of the sliding plate (measuring line) (1) to set and check
the folding and cutting tools.
WARNING
Risk of injury from moving parts!
Crushing possible.
Switch off the machine before adjusting the
transport clamp settings.
(1) - Edge of the sliding plate (measuring line)
