Transport clamps

Service Instructions 755 A/756 A - 00.0 - 02/2019 125

19.2 Changing the transport clamps

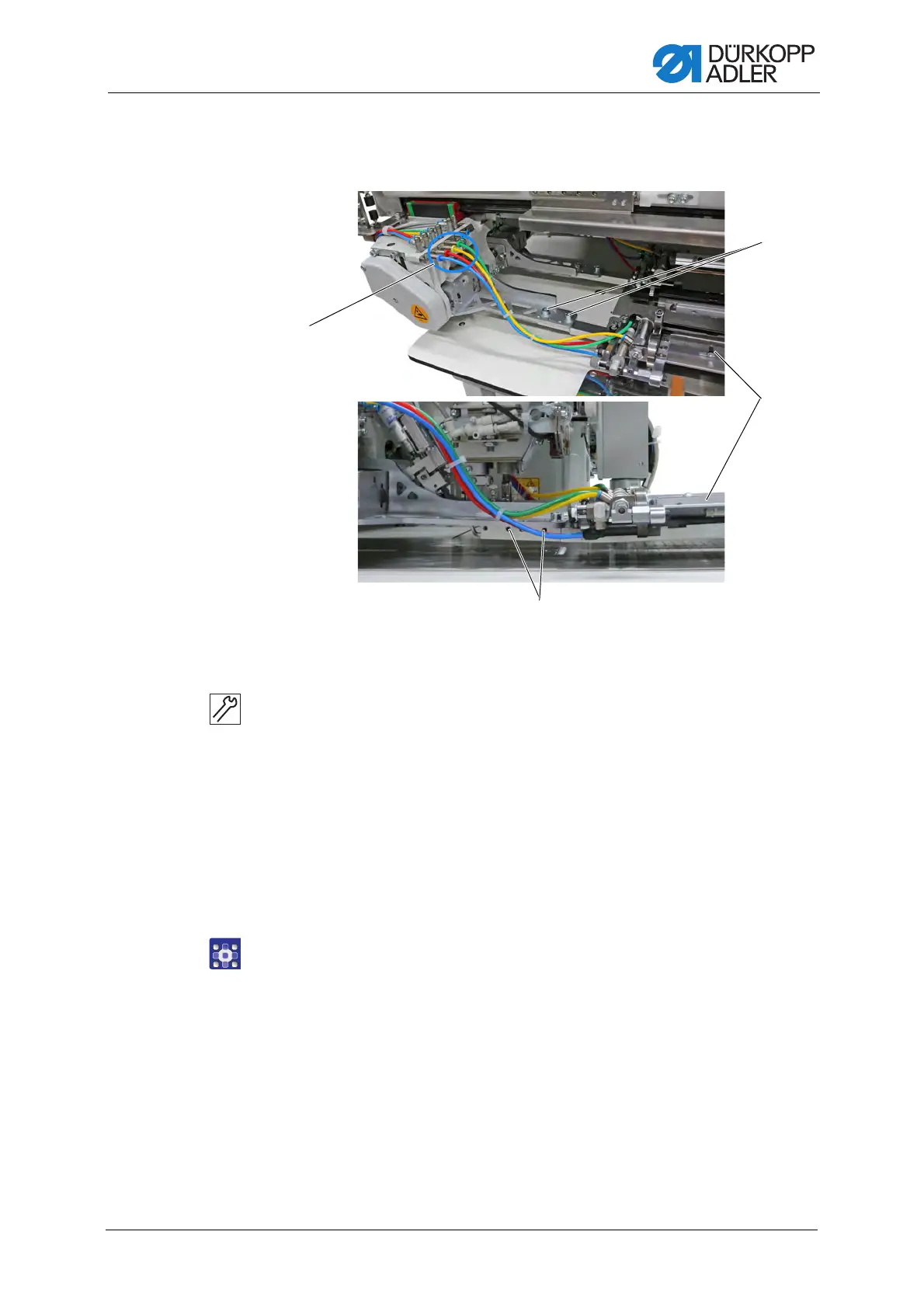

Fig. 125: Changing the transport clamps

To change the transport clamps:

1. Disconnect the pneumatic hoses (1).

2. Loosen the screws (4).

3. Loosen the threaded pins (2).

4. Change the transport clamps (3).

5. Slightly tighten the threaded pins (2).

6. Slightly tighten the screws (4).

7. Connect the pneumatic hoses (1).

8. Align the transport clamps ( p. 126).

9. Open the menu Service > Machine config. > Select working

method and select the correct sewing length ( p. 351).

(1) - Pneumatic hoses

(2) - Threaded pins

(3) - Transport clamps

(4) - Screws

①

②

④

③
