Endless zipper feed (optional)
210 Service Instructions 755 A/756 A - 00.0 - 02/2019
2. Disconnect the compressed air supply.
3. Swing the folding station out.
4. Loosen the screw (3).
 The zipper cutter (1) swivels out.
5. Loosen the screws (2).
6. Set the holder of the zipper cutter such that the distance between
the fabric sliding plate and the swung-out zipper cutter is 2 mm.
7. Tighten the screws (2).
26.4.3 Setting the position of knife and counter blade
Proper setting
The blade of the knife must overlap the counter blade by approx. 2 mm.

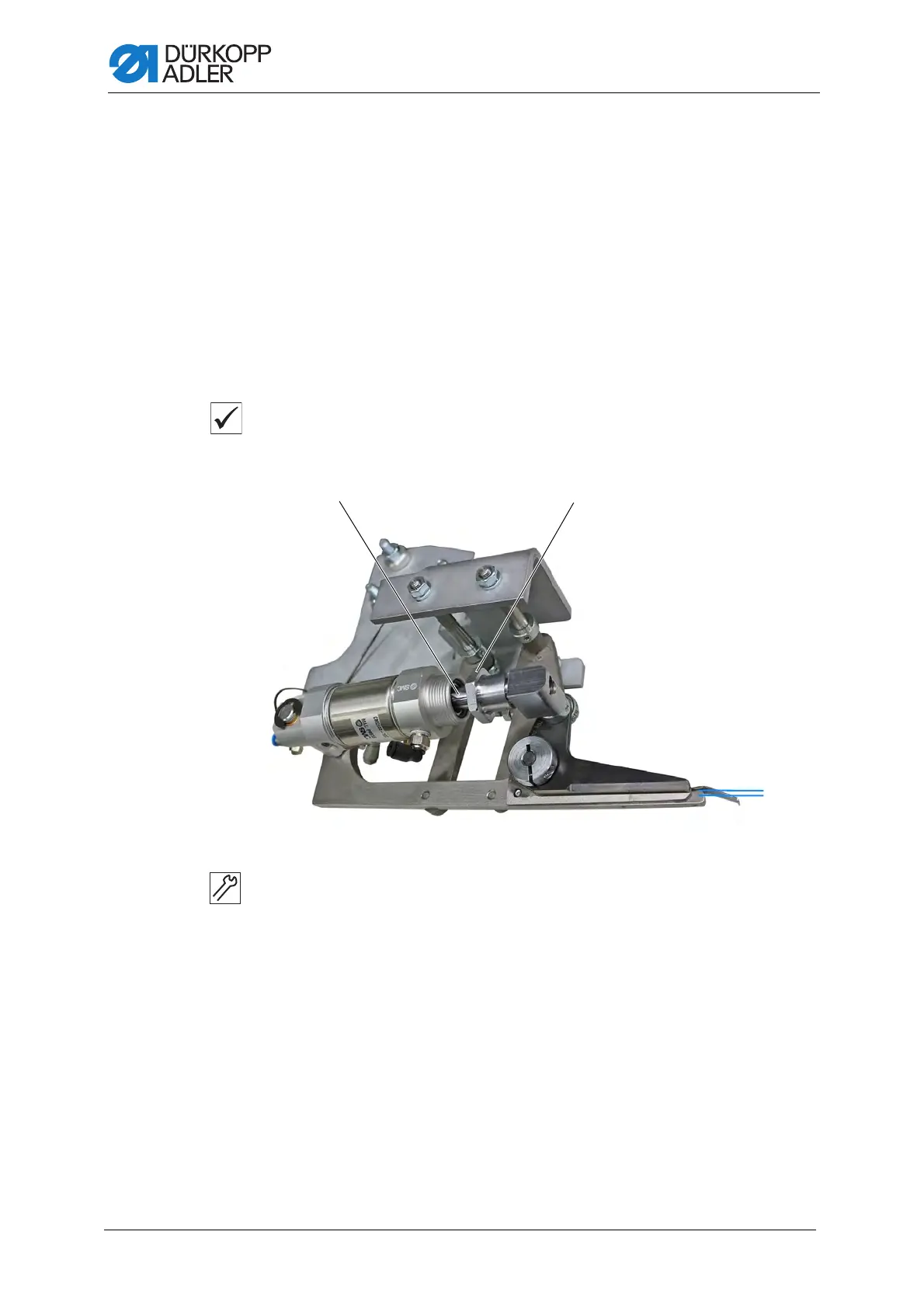

Fig. 207: Setting the position of knife and counter blade
To set the position of knife and counter blade:
1. Loosen the nut (2).
2. Turn the piston rod (1).
 The knife overlaps the counter blade by 2 mm.
3. Tighten the nut (2).
(1) - Piston rod (2) - Nut
