Multi-functional corner knife station
Service Instructions 755 A/756 A - 00.0 - 02/2019 181
22.6 Replacing corner knives

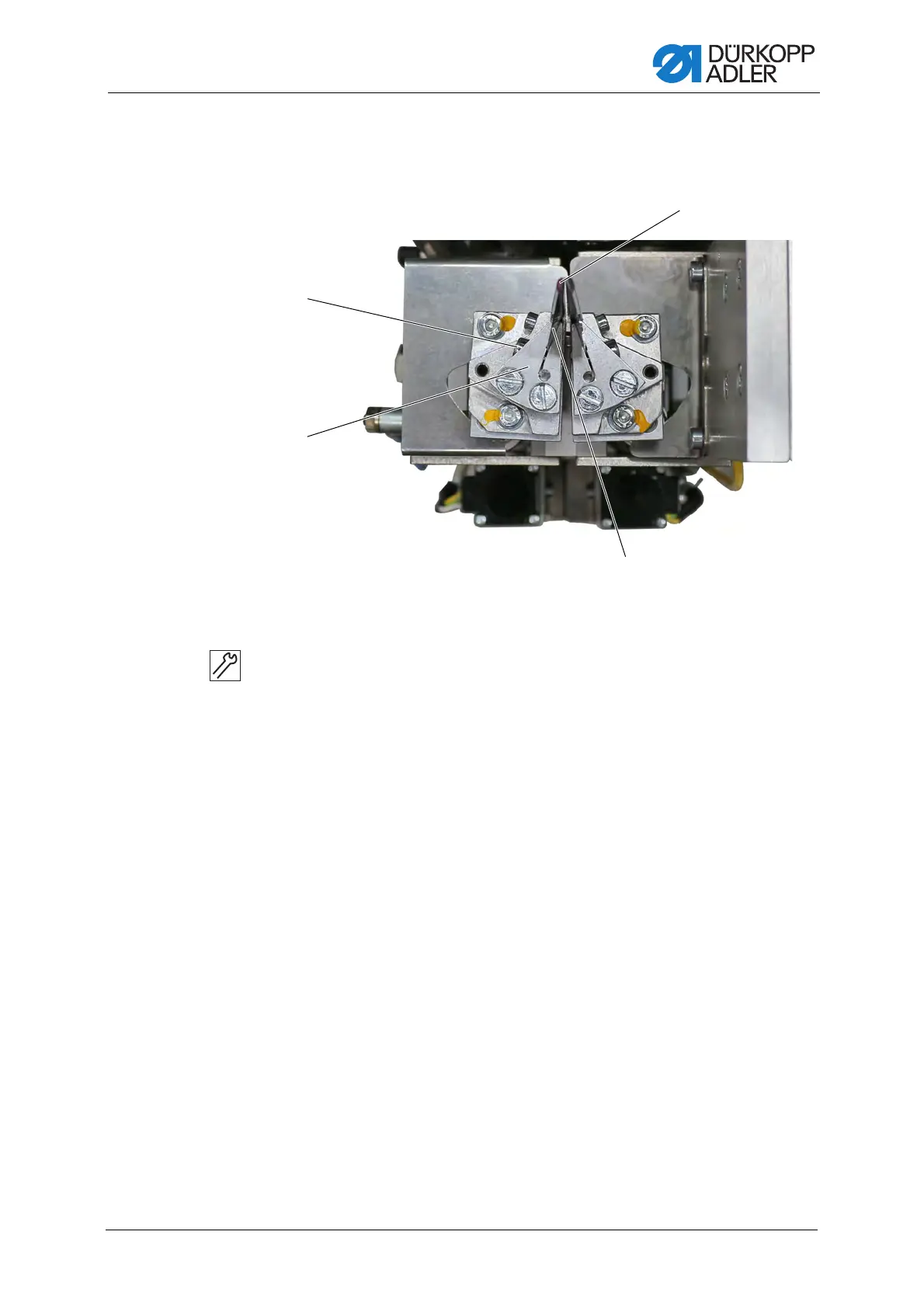

Fig. 178: Replacing corner knives
To replace the corner knives:
1. Swivel out the corner knife station.
2. Loosen the screw (1).
3. Remove the old corner knife.
4. Insert a new corner knife (3) into the corner knife holder (2).
5. Push the corner knife (3) upwards into the piercer (4).
The tips or the knives must be situated in the depression of
the piercer (4).
6. Tighten the screw (1).
7. Swivel in the corner knife station.
(1) - Screw
(2) - Corner knife holder
(3) - Corner knife
(4) - Piercer
