Folder
Service Instructions 755 A/756 A - 00.0 - 02/2019 113
17.6 Setting the folder detection

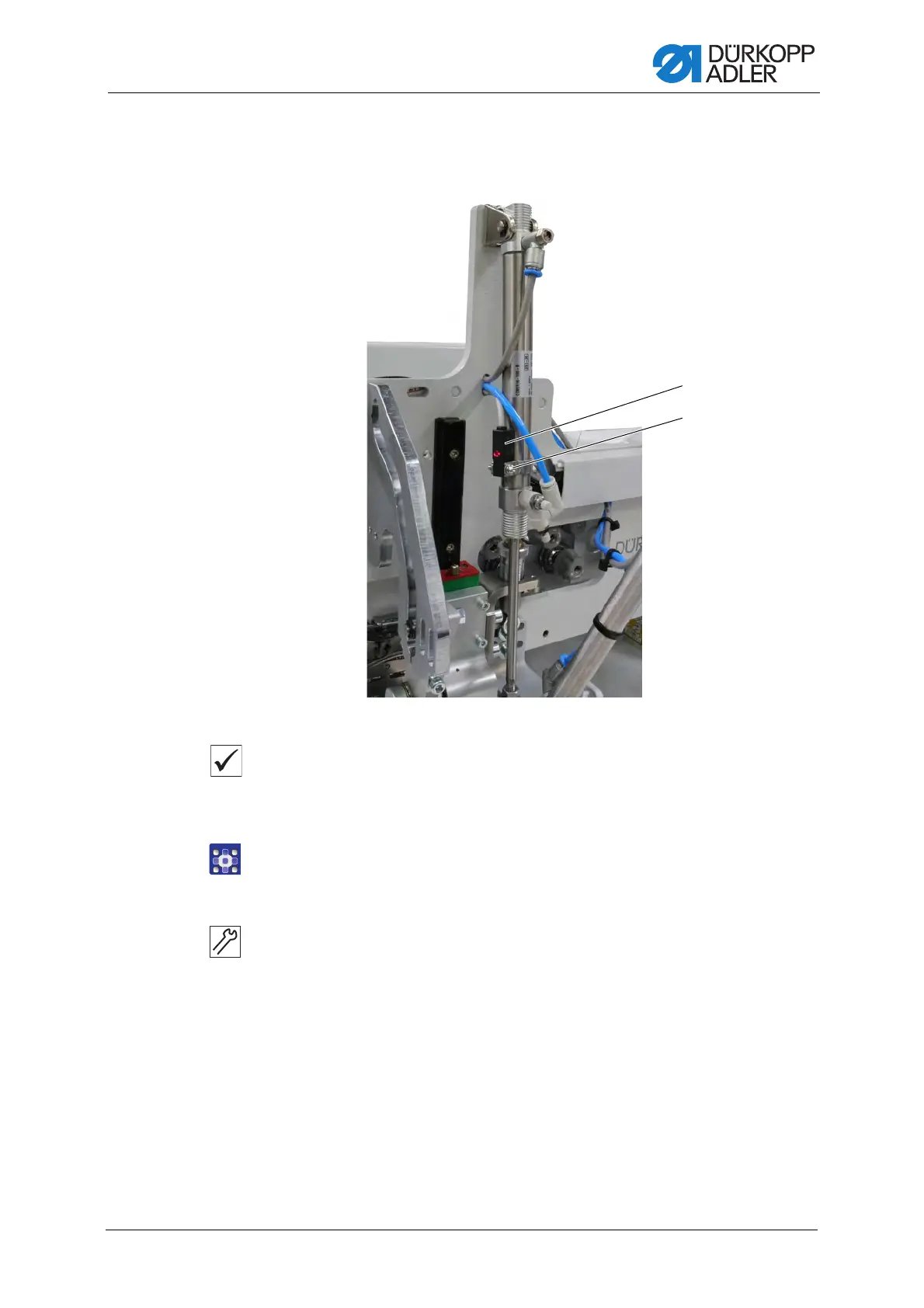

Fig. 116: Setting the folder detection
Proper setting
The switch (1) is activated when the folder has reached a distance of 5 mm
from the fabric sliding plate when moving downwards.
To set the folder detection:
1. Open the menu Service > Multi test > Multi test I/O
and select the input S9.
2. Loosen the screw (2).
3. Slide the switch (1) to change its position on the cylinder.
 The switch (1) is activated when the folder has reached a distance
of 5 mm from the fabric sliding plate when moving downwards.
4. Tighten the screw (2).
(1) - Switch (2) - Screw
