Needle bar
Service Instructions 755 A/756 A - 00.0 - 02/2019 35
6.1.4 Disassembling the needle bar linkage

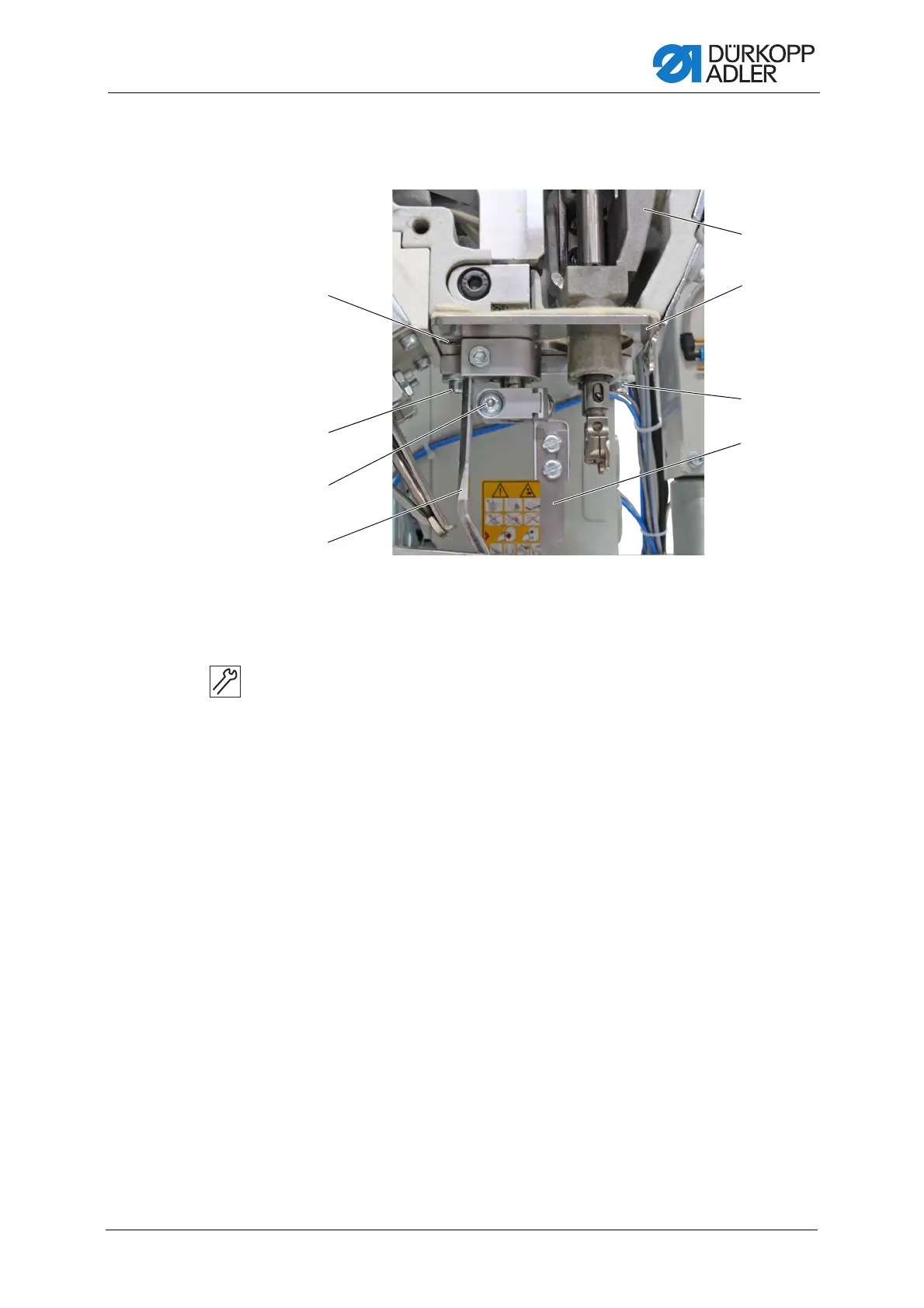

Fig. 22: Disassembling the needle bar linkage (1)
To remove the needle bar linkage:
1. Switch off the machine.
2. Disconnect the compressed air supply.
3. Swing the folding station out.
4. Remove head cover, arm cover and motor cover.
5. Remove the needles.
6. Loosen the screw (3).
7. Remove the middle knife (5).
8. Loosen the screws (2).
9. Remove the middle knife guard (4).
10. Loosen the screw (1).
11. Remove the plate (6) from the felt.
(1) - Screw
(2) - Screws
(3) - Screw
(4) - Middle knife guard
(5) - Middle knife
(6) - Plate
(7) - Needle bar linkage
