Working basis
Service Instructions 755 A/756 A - 00.0 - 02/2019 15
3 Working basis
3.1 Gages
The locking peg (part number 0367 105950) is included with the machine
as a standard tool in the accessory pack. It can be used to peg the
machine head in place at the Loop stroke position or at the Needle at
top dead center position.
3.2 Locking the machine in place

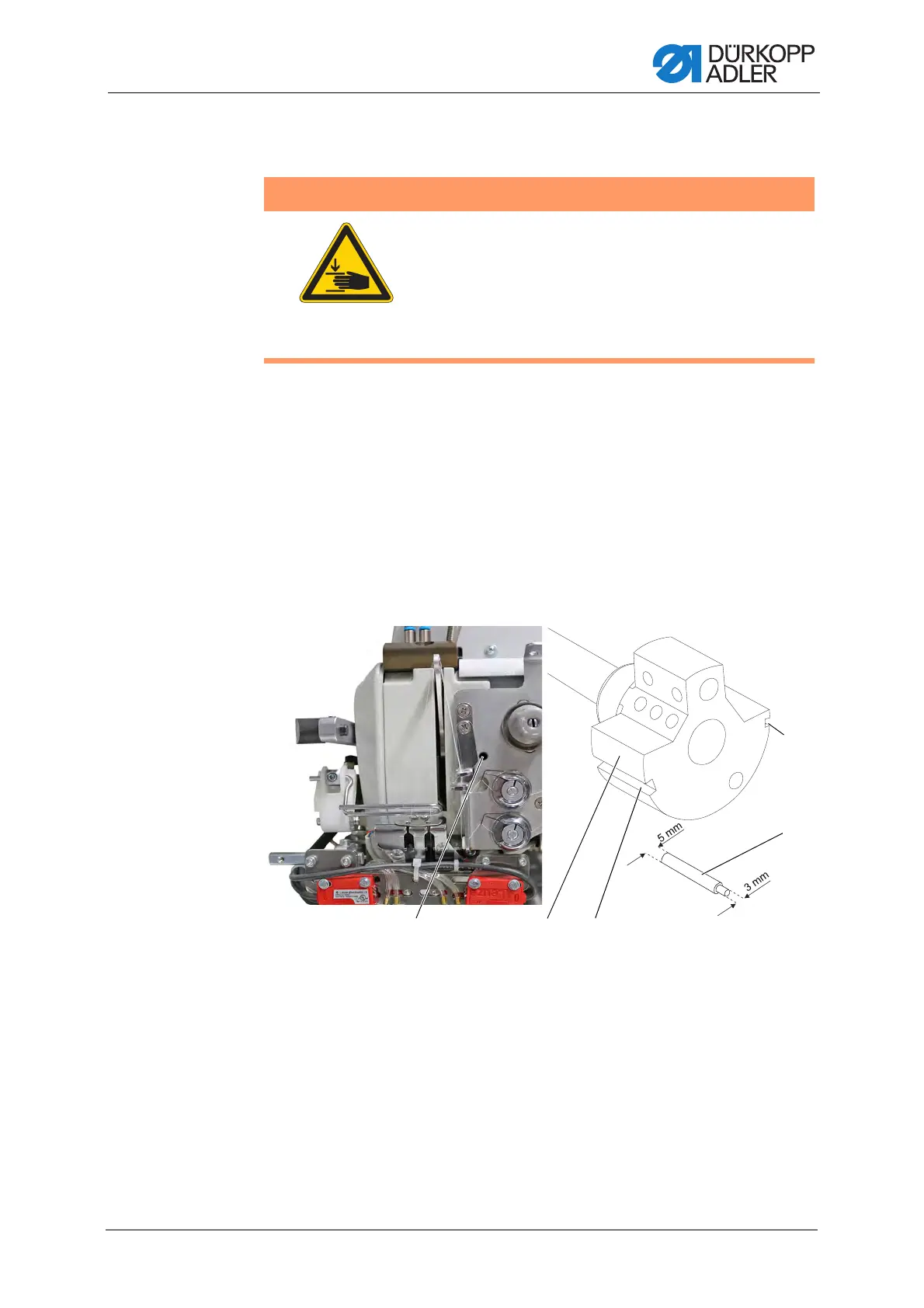

Fig. 1: Locking the machine in place
The arm shaft crank (2) is equipped with a large arresting groove (3)
(5 mm) and a small arresting groove (5) (3 mm).
WARNING
Risk of injury from moving parts!
Crushing possible.
Do not reach into the tabletop cutout when the
machine head is swiveled up.
Switch off the machine before adjusting the
machine head settings.
(1) - Hole
(2) - Arm shaft crank
(3) - large arresting groove
(4) - Locking peg
(5) - small arresting groove
