Hook
Service Instructions 755 A/756 A - 00.0 - 02/2019 69
7.4 Setting the needle guard
The needle guard prevents contact between needle and hook tip.

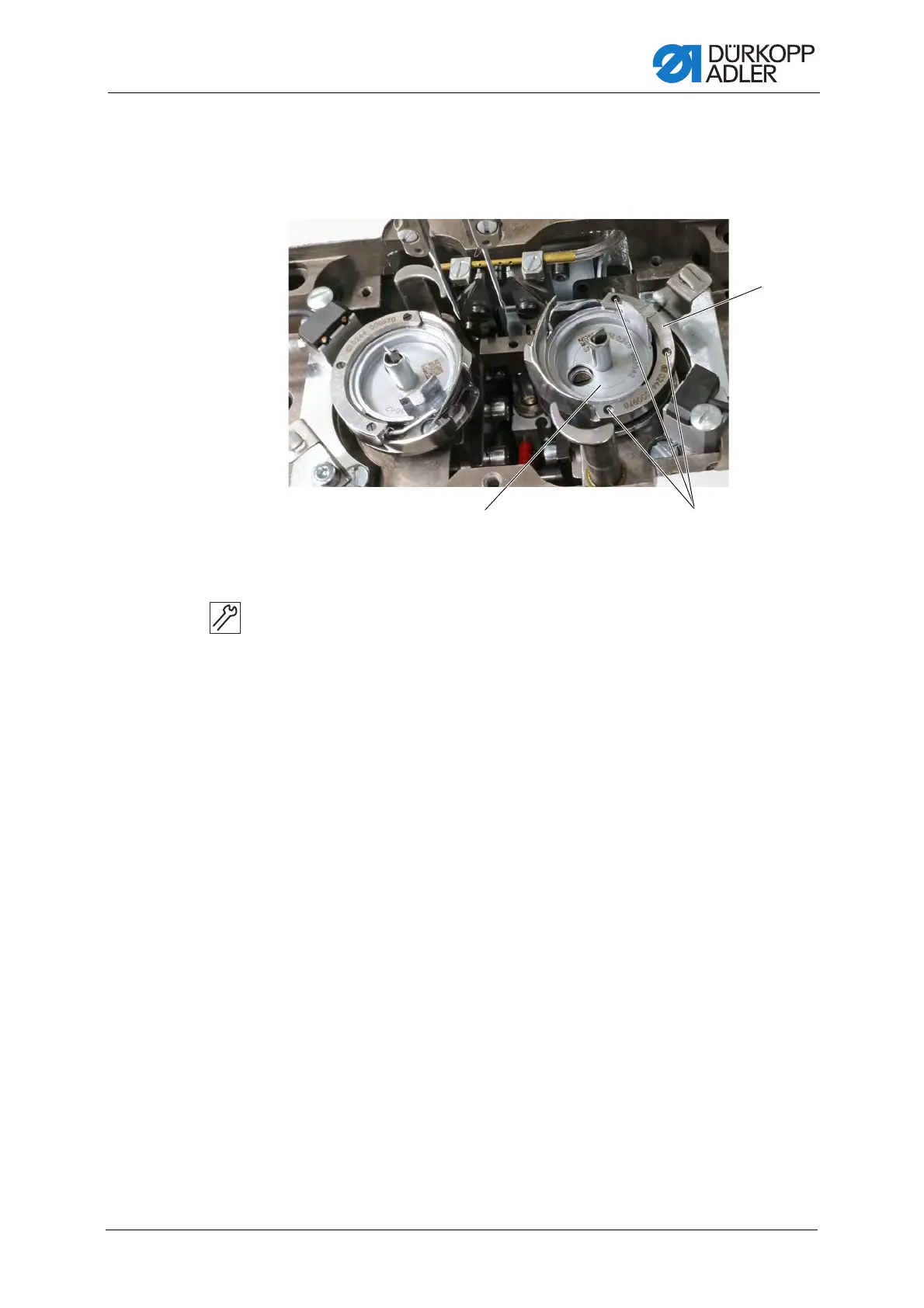

Fig. 69: Setting the needle guard (1)
To set the needle guard:
1. Lock the machine in place at position 1 ( p. 15).
2. Disassemble the throat plate.
3. Remove the hook cover and the bobbin.
4. Loosen the screws (2) and remove the cover ring (3).
5. Remove the inside part of the hook (1).
(1) - Inside part of the hook
(2) - Screws
(3) - Cover ring
