DURKOPP ADLER 755 A

To Next Page

To Previous Page

Stacker

Service Instructions 755 A/756 A - 00.0 - 02/2019 253

28.2.7 Setting the position of the stops

The position of the stops is factory-set to the correct value and should only

be changed in exceptional cases.

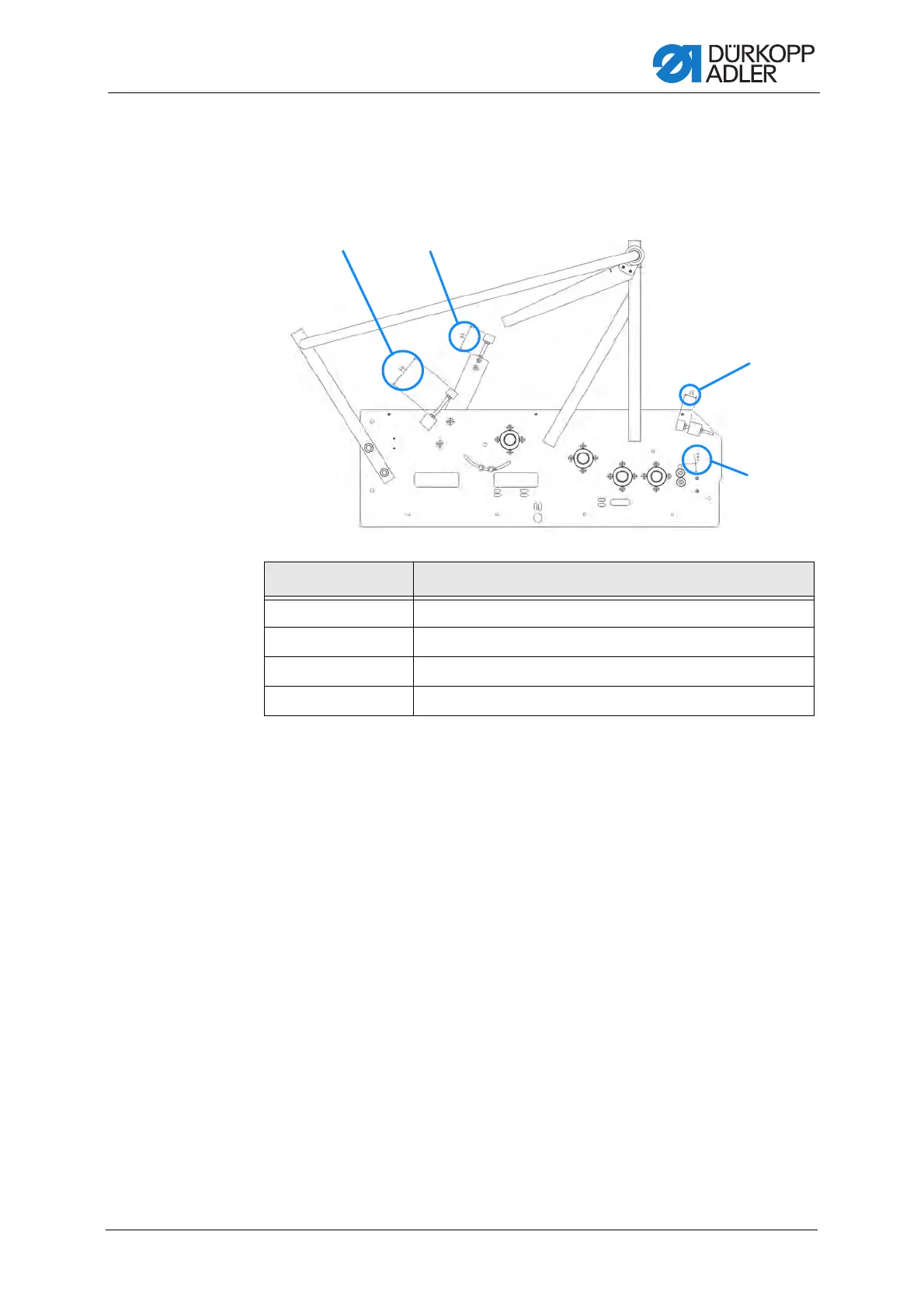

Fig. 248: Setting the position of the stops

Setting dimensions

Dimension 1 70 mm

Dimension 2 50 mm

Dimension 3 25 mm

Dimension 4 maximum

Dimension 1 Dimension 2

Dimension 3

Dimension 4
