Multi-functional corner knife station
166 Service Instructions 755 A/756 A - 00.0 - 02/2019
5. To check the correct position, move the corner knife holders together
all the way and move the left corner knife support (as shown on the
top left).
 Piercers (4) and (5) must not hinder each other while being moved.
6. Next, move the corner knife holders apart all the way and move the
left corner knife support (as shown on the top right).
 Piercers (4) and (5) must not hinder each other while being moved.
7. If necessary, readjust piercers (4) and (5).
8. Tighten screws (1) and (3).
9. Insert the corner knives.
22.1.3 Setting the corner knife inclination

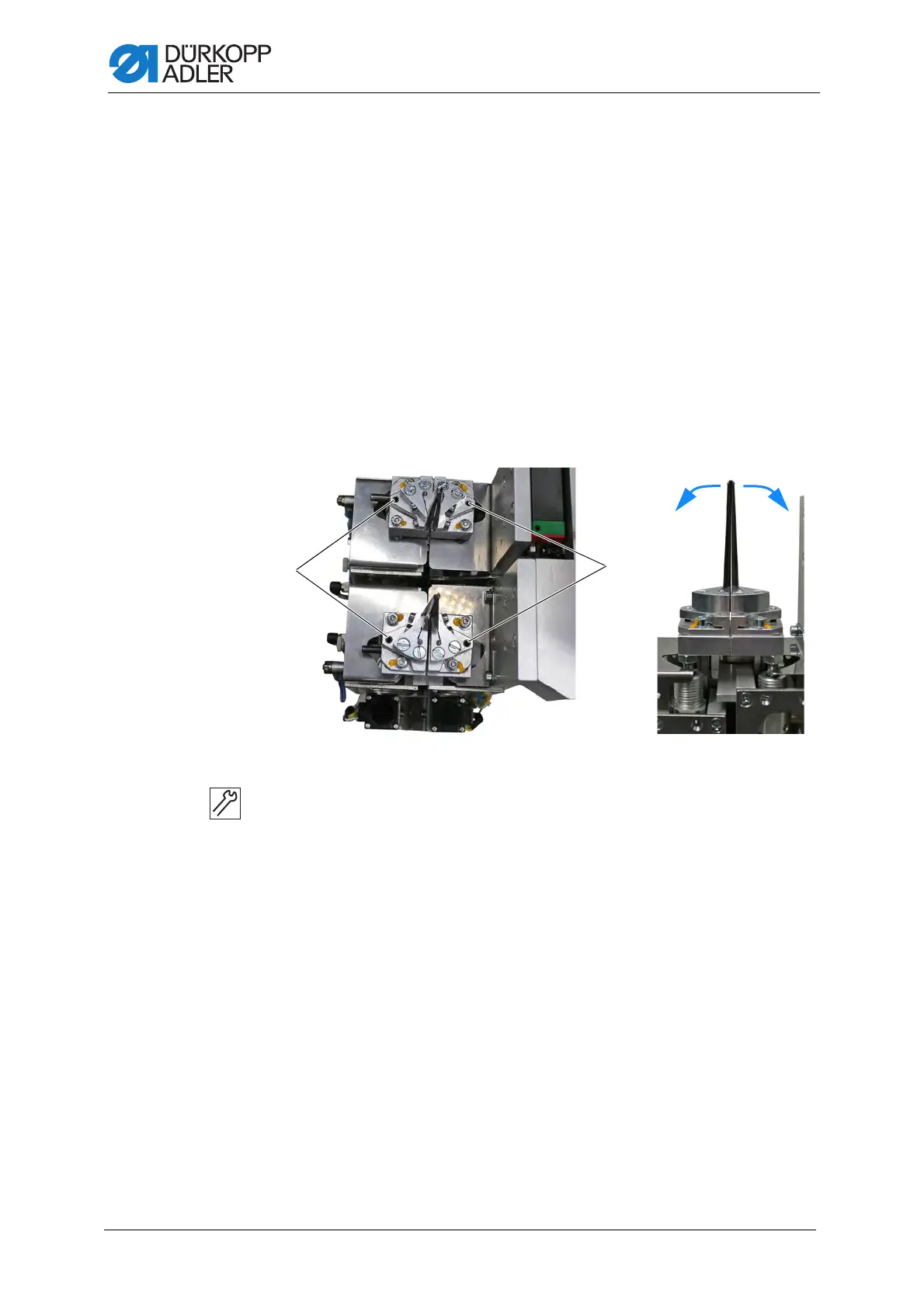

Fig. 164: Setting the corner knife inclination (1)
To set the inclination of the corner knives:
1. Disconnect the compressed air supply.
2. Turn the screws (1) and set the lateral inclination of the corners relative
to one another.
 The corner knives must be straight and parallel to one another.
The distance between the corner knives must always be the same
even if the corner knife support is pushed up.
(1) - Screws
