Stacker

262 Service Instructions 755 A/756 A - 00.0 - 02/2019

Replacing the coupling rods

The coupling rods have been set to the proper setting at the factory and

should not be adjusted.

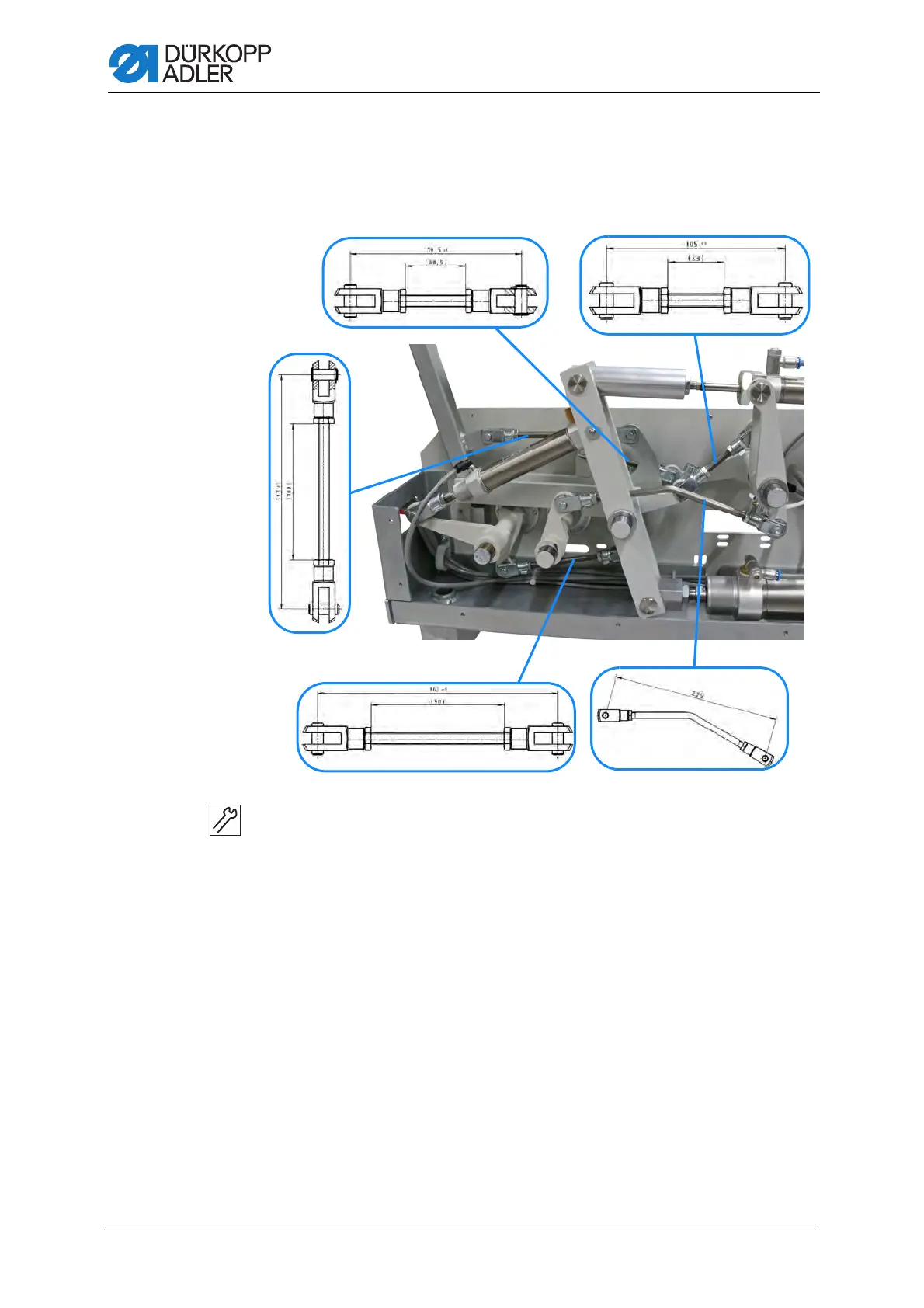

Fig. 258: Replacing the coupling rods

To replace the coupling rods:

1. Remove the covers ( p. 257).

2. Loosen the spring clips on both sides of the coupling rod you wish

to replace.

3. Disassemble the old coupling rod.

4. Assemble the new coupling rod.

5. Set the correct dimensions.
